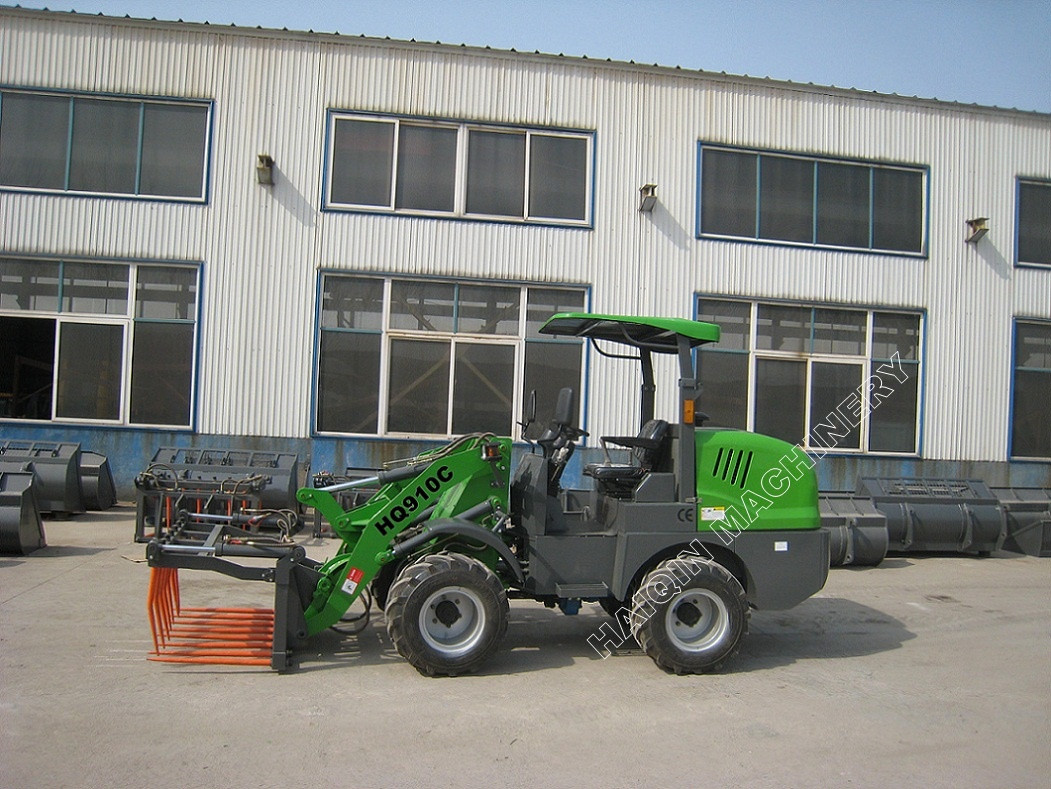

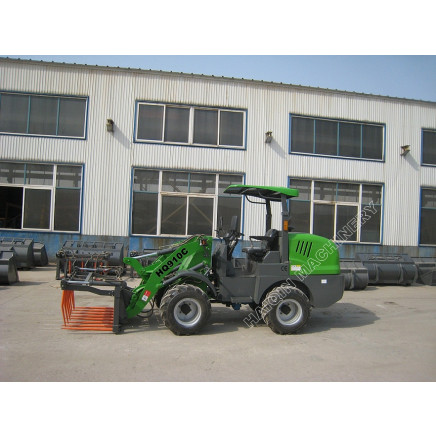

Joystick Control Chinese Front End Loader (HQ910C) with CE

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 9000.0-11000.0/ Piece

Price:$9000.0 - $11000.0 / Piece

Trade Terms: FOB, CFR, CIF, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Mar 13, 2015 To Feb 26, 2019

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HQ910C

Type:Wheel Excavator

Usage:Earth Moving,Building, Construction

Transmission:Hydraulic Transmission

Drive Type:Internal Combustion Drive

Bucket Capacity:0.5~1.0m³

Size:Small-Scale

Certification:CE, ISO9001: 2000, SGS,Rops&Fops

Condition:New

Engine:Euro III Engine

Loading Weight:1000kg

Export Markets:Global

Additional Info.

Trademark:Haiqin

Packing:3 Units in One 40 Container

Standard:CE, ISO, SGS, ROP&FOPS

Origin:Shandong, China

HS Code:84295100

Production Capacity:9000 Units / Year

Product Description

Wheel Loader HQ910C:

(1) Whloe Hydraulic Driving
(2) Steering pumps, priority valve and other hydraulic parts are import from America or Itlay.
(3) CE Certificate
(4) Euro III Engine
(5) Multi-function
(6) Joystick operation
(7) Quick Hitch ( Or Europe quick hitch )

Wheel Loader HQ910C Specifications:

Overall Dimensions: 4113 mm/1430mm/2323mm(2000)
Operating Weight: 2690kg
Max. Breakout Force: 35KN
Min. Ground clearance: 230 MM
Turning angle: 35 degree
Min turing redius: 3750 MM
Engine model: XINCHAI 490BT or XINCHAI EURO III 490BPG / Japan Yanmar EURO III 4TNV-88-BS
Power of engne: 32.4/2400, 25.2 / 2200 kw/ rmp
Cylinder: 4/108/125
Speed, (km/h )
Forward 1 0-7
Forward 2 0-24
Back 1 0-7
Back 2 0-24
Rated bucket capacity: 0.5 m3
Three times: 9 s
Dump height fully raised: 2420 mm
Reach fully raised: 850 mm
Tyre model: 10-12.5 / 12-16.5 / 31*15.5-15
Tyre width: 270 / 300 / 380 mm
Track base: 1160 mm
Wheel base: 1740 mm

Specifications of HQ910C Mini Loader
Item	Specifications	Item	Specifications
Rated loading weight	1000kg	Operating weight	2730kg
Rated bucket capacity	0.54-0.7m 3	Overall dimensions(LxWxH)	4450x1430x2600mm
Bucket width	1500mm	Engine model	XINCHAI 490 EURO III Engine ( Yanmar or Perkins for option )
Track base	1160mm	Engine type	In-line arrangement, water cooled, four-cycle diesel engine
Wheel base	1710mm	Engine starting mode	Electric
Min. turning radius(outside of rear wheels)	3750mm	Rated power/Rated speed	32.4KW/2400rpm
Min. Ground clearance	230mm	Brake mode	Four-wheel hydraulic spread-shoed brake
Dump height fully raised	2420mm	Warranty	15 months
Dump height fully raised	2420mm	Warranty
Reach fully raised	850mm	Color	According to the requirements of customers
Lifting time + Dumping time + Lowering time	9S	Tyre type	12-16.5 or 3115.515 wide tyre
Steering angle	35 degree	Shipping port	Qingdao port, China
Max. Breakout Force	35KN	Packing details	1 unit in a 20 container, 3 units in a 40 container.
Driving mode	Four-wheel drive	Delivery time	20 days after confirm the order
OEM Service	Yes

Additional Information
