JAC 9m3 Concrete Mixer Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

JAC 9m3 Concrete Mixer Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 50000.0-65000.0/ Piece

Price:$50000.0 - $65000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jun 26, 2015 To Sep 26, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CIMC5451RJV

Certification:ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE

Transmission Type:Manual

Emission Standard:Euro3

Displacement:8

Engine Type:4 Stroke

Payload:30T

Fuel:Diesel

Drive Mode:6x4

Maximum Horsepower:300-400hp

Condition:New

Outline Dimension (Mm):9185*2545*3900(L×w×h)

Tire:Radial Tire 12.00r20

Engine:Wp10.290/310 E32

Speed Reducer:PMP

Pump:Sauer

Motor:Sauer

Mixer Tank Volume (M 3 ):9cbm

Wheelbase (Mm):3690+1350

Transmission:10jsd140

Color & Advertisement:as Customers? Request

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Additional Info.

Trademark:JAC

Packing:Nude Packing

Standard:ISO9000, CCC, TS16949, CE

Origin:Jiangsu, China

HS Code:8708706000

Production Capacity:1000PCS/Month

Product Description

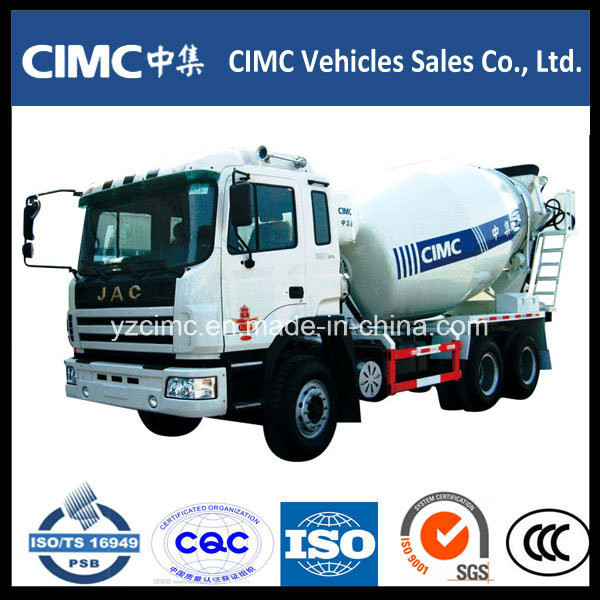

JAC 9m3 Concrete Mixer Truck

Model		CIMC5451RJV
Drive mode		6*4 mixer
Engine	Model	WP10.290/310 E32
	Emission levels	E-III EGR
	Max output power(Kw/rpm)	213,228/2200
	Max torque(N·m/rpm)	1160,1250/1200-1600
Transmission	Model	10JSD140,10JSD140T 10 forward
Transmission	Model	2 reverse
Rear axle: ratio/loading capacity		457 Technology 4.875,5.286,13 tons
Clutch		Single plate,dry , diaphragm spring
Braking system		Dual-circuit air brake, with exhaust assisted braking
Main Parameter	Overall dimension(mm)	918525453900
	Mixer barrel volume	9 m³
	Wheelbase(mm)	3690+1350
	GVW/GCW(Kg)	39850
	Rated load (kg)	27600
Tire		12.00R20

Company information
CIMC VEHICLES SALES CO., LTD.

CIMC VECHICLE was founded by CIMC group, which fixes the mission to be customers' partner for modern transportation. CIMC is dedicated to manufacturing and supplying CIMC trucks, CIMC truck body assembly, trailers, tank equipment. Currently, CIMC owns USD 8.8 billion total assets, USD 2.6 billion net assets, USD 8.4 billion annual sales and USD 0.6 billion net profits in 2010, having over 150 subsidiaries and 63, 000 staff across China, North America, Europe, Asia and Australia.

Vehicles: CIMC has over 1000 lines of products in 11 series, including container chassis, flatbed trailer, bulk lorry, tanker, self-dumper, reefer trailer, van, curtain side trailer, mixer, pump truck, car carrier vehicle, fire engine, sanitation vehicle, etc. With the annual output capacity of over 200 thousand units, it now takes the leading position in the world. Up to today, the Group has established 22 production bases.

Heavy Truck: Have its own production C & C brand truck. Other heavy truck CIMC produces the truck body, more than 2, 000 kinds of truck body for different transportation purpose. The truck chassis cooperates with FAW, DONGFENG DFAC, SHACMAN, SINOTRUK, FOTON, BEI BEN, JAC, CAMC, SI CHUAN HYUNDAI, SAIC-Iveco and so on, include all truck chassis brand production in China.

Welcome global heavy truck dealer to take a sight seeing of trucks, to taste values of "considerate service, benefits share"! Will bring you cost-saving solutions and eye-catching returns!
