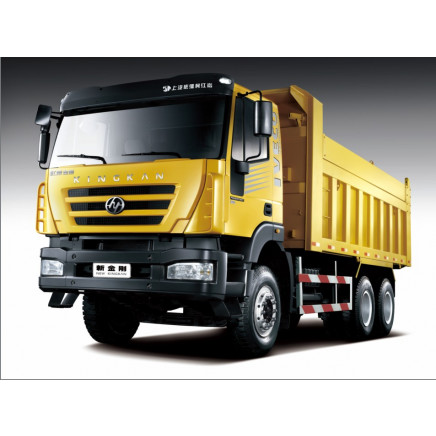

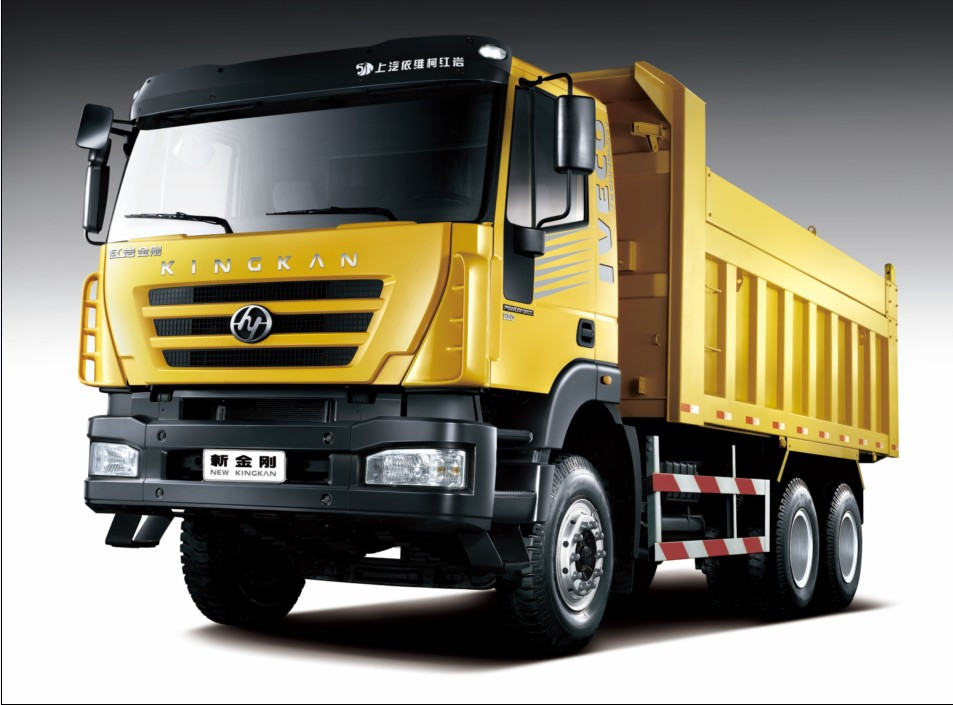

Iveco Tech 6X4 New Kingkan Heavy Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (unit)	Unit Price
1.0	US $ 45000.0-50000.0/

Price:$45000.0 - $50000.0 / unit

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 09, 2015 To Apr 08, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CQ3254HMG384E(A)

Transmission Type:Manual

Power:Diesel

Load Capacity:41-50t

Emission Standard:Euro 3

Drive Wheel:4WD

Engine Capacity:?8L

Seats:?5

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Middle Lift/Front Lift

Condition:New

Truck Type:Dump Truck

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:Saic-Iveco Hongyan

Packing:Nude Packing, Seaworthy

Standard:Euro 3/Euro 4 Emission Standard

Origin:Chongqing, China

HS Code:8704230090

Production Capacity:50000 Units/Year

Product Description

6X4 Saic-Iveco hongyan new kingkan heavy dump truck:

1. Adopt Italian advanced techonology;
2. Flexible sales system, competitive price;
3. Excellent quality, best after-sale services and mature spare parts system.

If you are interested in this model, please feel free to send your inquiry, and we will always be glad to quote.

TECHNICAL SPECIFICATION
NO.	SPECIFICATION	PARAMETER	NOTE
1	Model	CQ3254HMG384E(A)
2	Cab	New KINGKAN flat-roof cab, Left-Hand drive, with AC	Yellow/Red/White
3	Drive	6ط4
4	Rated Payload(kg)	12780
5	Kerb Weight(kg)	12090
6	Gross Vehicle Weight(kg)	25000
7	Overall Dimension(mm)	8275ط2500ط3510(LطWطH)
8	Dump Box Dimension(mm)	5400ط2300ط1200(LطWطH)
9	Dump Box Volume (m 3 )	15
10	Thickness of Dump Box	Bottom 8mm,side 6mm
11	Lifting Cylinder	Mid-lift ?220
12	Max Speed(km/h)	94
13	Wheelbase(mm)	3775+1400
14	Engine	WP10.336	Euro III
15	Engine Output(HP)	340HP
16	Gearbox	12JSD160T	Fuller technology
17	Steering gear	Germany Technology ZF steering gear
18	Frame	Outside width 865mm, longeron cross section 317x(8+8)mm
19	Front Axle	Iron Cast I-Shaped Axle, Capacity: 7000 kg
20	Driving axle	Full floating, double reduction with differential cast steel driving axle, Capacity:18000 kg(Ratio:4.8)
21	Tyre	12.00R20
22	Oil Tank	350L Aluminum-Magnesium Alloy
