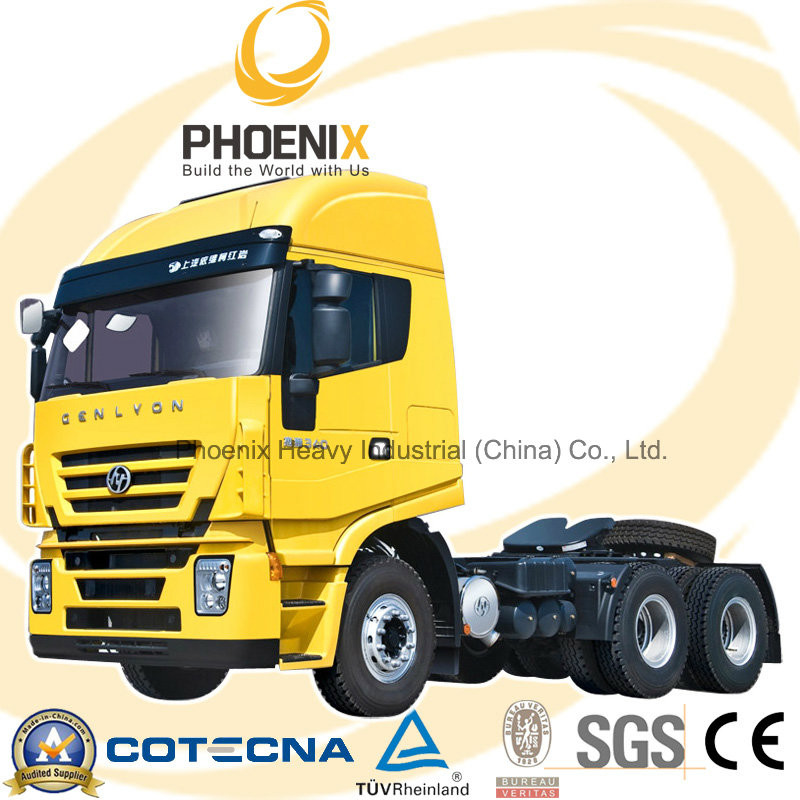

Iveco Hongyan 390HP S100 Tractor Truck Head with High Roof

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$49000.0 - $57000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 57000/ Piece
10.0	US $ 49000/ Piece

Trade Terms: FOB, CFR, EXW, CIF

Payment Terms: L/C, T/T

Price Valid Time:From May 19, 2015 To Aug 19, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CQ4255HTG334

Transmission Type:Manual

Power:Diesel

Load Capacity:?50t

Emission Standard:Euro 3

Drive Wheel:6×4

Seats:?5

Horsepower:351-450hp

Engine Capacity:?8L

Tire Type:Solid Tire

Tire Certification:ECE, ISO, DOT

Tire Design:Tubeless

Condition:New

Engine:Chinese Sfh Engine

Wheel Base:3225+1350

Engine Horse Power:390HP

Drive Type:6X4

Export Markets:Global

Additional Info.

Trademark:Genlyon

Packing:Nude Packing

Standard:ISO9001

Origin:China Mainland

HS Code:870120000

Production Capacity:50, 000units/Year

Product Description

This Genlyon tractor truck 6X4, produced by Saic Hongyan. Italian techonology, fashionable outlook and high level quality.

1. Adopt Italian advanced techonology; Cursor engine produced by Saic-FIAT Hongyan;
2. Flexible sales system, competitive price;
3. Excellent quality, best after services and mature spare parts system.

Hongyan Genlyon IVECO Euro III 6× 4 Tractor Truck

Driving type		6× 4	6× 4	6× 4
Total mass kg		40000	49000	49000
Tractor curb weight kg		9670	9670	9670
Saddle carrying capacity kg		15200	15200	15200
Total mass of the trailer kg		39200	39200	39200
Wheelbase mm		3225+1350	3225+1350	3225+1350
Outline dimensions mm	Length	6718	6718	6718
	Width	2500	2500	2500
	Height	3832(3957 containing cab rear spoiler)	3832(3957 containing cab rear spoiler)	3832(3957 containing cab rear spoiler)
Max. speed km/h		95(110)	95(110)	95(110)
Max. gradeability %		30	32	35
Fuel consumption under certain conditions L/100km		32-41	32-41	32-41
Saddle joint face ground clearance(280 Frame)mm		1348(Full load Full load 1245)	1348(Full load 1245)	1348(Full load 1245)
Saddle front/rear turning radius mm		1393/2084	1393/2084	1393/2084
Distance between saddle and balance shaft mm		320	320	320
Traction pin diameter mm		50.8	50.8	50.8
Engine		C9-380	C9-380Hp	C9-400Hp
Engine power kw(Ps)		250(340)	280(380)	297(400)
Max. torque/speed (N. m/(r/min))			1500/1100-1700	1600/1100-1700
Clutch		? 430 pull-type diaphragm spring clutch	? 430 pull-type diaphragm spring clutch	? 430 pull-type diaphragm spring clutch
Transmission		12JSD160T	12JSD180TA	12JSD180TA
Cab		High roof, doube sleeper, silver color	High roof, long cab, low floor	High roof, long cab, low floor
Steering gear		ZF variable ratio hydraulic steering gear	ZF variable ratio hydraulic steering gear	ZF variable ratio hydraulic steering gear
Driving axle		Single reduction axle: 4.11, 4.625 Double reduction axle: 4.42, 4.8, 5.73	Single reduction axle: 4.11, 4.625 Double reduction axle: 4.42, 4.8, 5.73	Single reduction axle: 4.11, 4.625 Double reduction axle: 4.42, 4.8, 5.73
Tire		11.00-20(11.00R20)	11.00-20(11.00R20)	11.00-20(11.00R20)
Emission standard		Euro III	Euro III	Euro III
Announcement lot		2001H8	2001H8	2001H8
