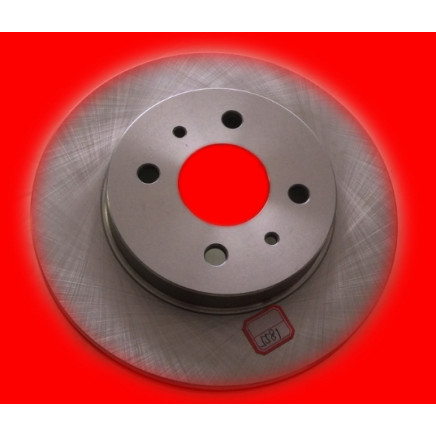

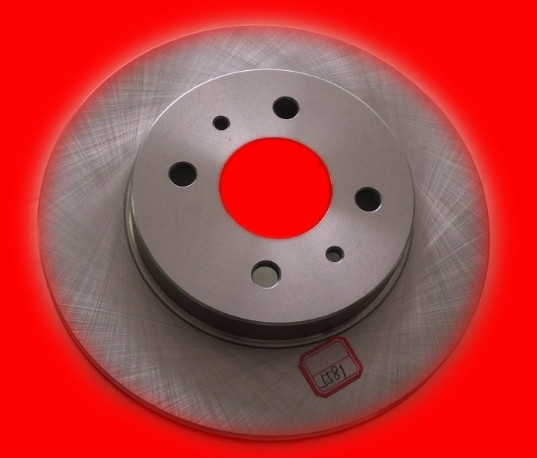

ISO9001high Quality Brake Disc (Amico 5581 OE 21012880)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$8.05 - $41.26 / Piece

Min. Order (Pieces)	Unit Price
100.0	US $ 8.05/ Piece
200.0	US $ 41.26/ Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 02, 2015 To Jul 02, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description
Additional Information
Reviews

Description

Details

Basic Info.

Model NO.:AMICO 5581 OE 21012880

Type:Brake Discs

Material:Iron

Position:Front

Certification:ISO/TS16949, TS16949, ISO9001

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Height:43.7mm

Outer Diameter:250mm

Thickness:18mm

Number of Holes:4

Solid or Ventd:V

Centering Diameter:59.8mm

Export Markets:Global

Additional Info.

Trademark:luzao

Packing:Neutral Packing or According to The Requirements

Standard:TS ISO

Origin:Shandong Zouping

HS Code:87083099

Production Capacity:100, 000pieces/Month

Product Description

brake discs, brake rotor ,brake drum

Fix position	Front
Matrial	Gray Cast Iron Euro GG20
Key Size	DIA 250 mm HEIGHT 43.7 mm CENTERING DIA 59.8 mm THK 18 mm HOLES 4
Place of origin	Shandong, China ( Mainland)
Quality System	ISO/TS 16949 ISO9001
MOQ	100 PCS/item
Package	Neutral box or your need color box
Delivery	20-30 D
Guarantee period	2 years or 80,000 km

Quality Standard---GG20

1. Material Requirements

1.1 Must meet Grade GG20 for gray iron castings.

1.2 Chemical Composition (Percent)

       * Total Carbon:     3.0 - 3.50%
       * Silicon:             1.90 - 2.30%
       * Manganese:       0.60 - 0.90%
       * Phosphorus:      0.12% Max.
       * Sulfur:               0.10% Max.

1.3 Microstructure:

      1.3.1 Graphite Structure-
              Predominantly type A, size 3-5.

      1.3.2 Matrix
              Pearlitic with max. 15 ferrite
              Free from chill

1.4 Physical Properties:

      1.4.1 Tensile Strength-     Min. 200 N/mm

      1.4.2 Brinell Hardness-     190 - 230
           ( 10 mm ball, 3,000 kg load)

           Our brake disc is well exported to North America,South America,the Middle East,South Korea,Singapore,Malaysia,United Kingdom,and Denmasrk,and enjoy a very good reputation worldwide.

Now we have more than 2,500 items in total which include almost all typical brakes worldwide,especially some newbrake parts for GM,VW,FIAT,BMW,Peugeot,Opel,Renault,Mercedes,Benz,Hyundai,Daewoo,Kia,and all Janpanese cars.

If you are interested in our product, please contact us,,tel:0086-543-4347957,,our website: www.zplz.cn.
