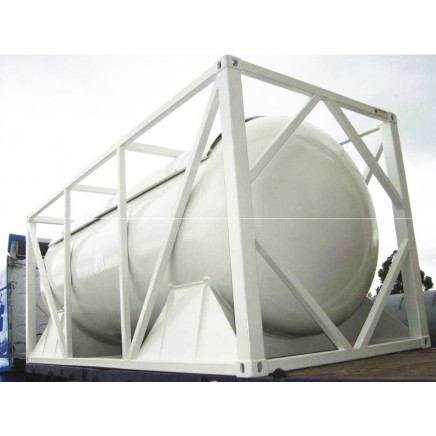

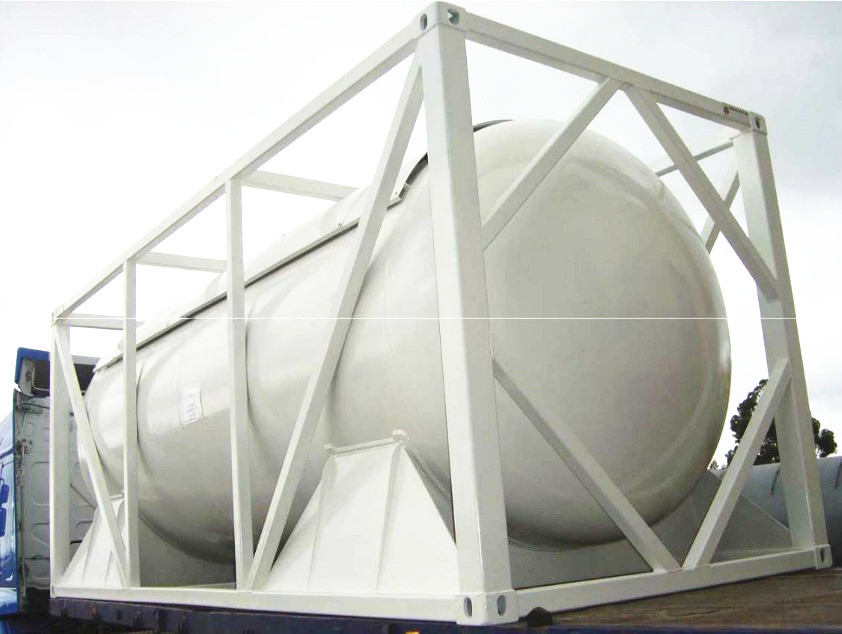

The images of 20ft and 40ft LPG Tanker
LPG tank container brief detail:
1)Designing pressure:0.7~2.16Mpa Designing temperature:500C
2)The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity.light weight and high efficiency.
3)We inspect the quality of product strictly,ensure that A and Btype of welding seam pass the examination of level two radiographic test,C and D type of welding seam pass the examination of level one radiographic test.
4)There are domestic or imported safety accessories with high quality ,its matching is complete.
5)The anticorrosion coating of LPG tanker adopt the following process, sandblast, spray painting ,purging and so on
China Famous 20 feet or 40 feet the LPG tank container
Item | Description | Specification | Remarks |
1 | Shape | Cylinder | 20ft |
2 | Gross capacity(m3) | | |
Effective capacity(m3) | | 95% filled |
3 | Outline dimension(mm) | 6058x2438x2591 | |
Internal Diameter(mm) | 2300 |
4 | Tare weight(kg) | 5000 | |
5 | Insulation layer(mm) | 50 | |
6 | The temperature down rate of the tank(°C/h) | ?2 | |
7 | Seal off the head(mm) | 6 | |
8 | Direct visual temperature meter | 1 | |
9 | Temperature sensor | 1 | |
10 | Maintenance manhole | 1 | Ø500 mm |
11 | The feeding hole of the asphalt | 1 | Ø250 mm |
12 | The protect frame of the feeding hole of the asphalt | one,800*750*200 mm | overflowing cofferdam |
13 | Breather valve | 1 | |
14 | Pressure(MPa) | Less than 0.1 | |
15 | Asphalt Discharge valve | 1 | 4? |
16 | Fast coupling | 1 | 4? |
17 | Temperature | 1 | -19°C~200°C |
18 | Ladder | 1 | W=400mm |
19 | Heating system | One set, hot pipe direct heating, twin burner tubes | 2 Groups |
20 | Diesel oil burner | 2, 40x104Kcal | Optional |
21 | Automatic control system | Optional |
Purpose
Tank containers series mainly used for transportation and storage of chemical liquid products
and oil products, because it can be stack up placced, so that, widely used in ware house, and other industries.
Advantages
Light self-weight, easy to clean, covering a wide range of goods, accessing to reliable, long life and easy
maintenance characteristics
Others
We produced the tank containers in accordance with the ISO standard design, in line with international maritime
standards.
Tank material according to different transportation medium can choose carbon steel, stainless steel, and insulation
and non-insulation tank.
Images of our workshop
Chengli Special Automobile Co., Ltd
1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system, the delivery time are on time.
5. We exports many trucks over the world. We have professional sales team.
If you are interested in our trucks, pls contact me, I will send our best quotation to you.
