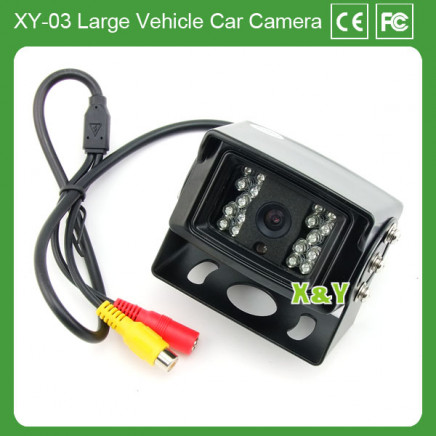

IR Night Vision Bus Car Back up Camera

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$15.0 - $17.0 / Piece

Min. Order (Pieces)	Unit Price
50.0	US $ 17/ Piece
100.0	US $ 16.5/ Piece
200.0	US $ 16/ Piece
500.0	US $ 15/ Piece

Trade Terms: FOB, EXW

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Dec 18, 2014 To Mar 18, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:XY-03

Shell Material:Alloy

Probe Number:1

Interface:RCA

Function:Night Vision

Definition:420TVL

Chip:CCD

Waterproof Grade:IP67

Alarming Distance:1~10

Power Supply:12V~24V DC Adaptable

Mirror/Normal Switch:Optional

Parking Line Switch:Optional

TV System:NTSC/PAL

Current Consumption:Max. 200mA

Lens Angle:120 Degrees

IR Night Vision:Support

Export Markets:Global

Additional Info.

Trademark:X&Y

Packing:Color Box

Standard:CE FCC

Origin:China

HS Code:8525801390

Production Capacity:30000set/Month

Product Description

Rear /Front view camera for Bus Truck Van and large vehicles

12V~24V Adaptable

Night vision car camera with bright LED good profomance in the dark

Image Sensor: 1/4" CCD/CMOS
TV System: NTSC/PAL
Effective Pixels: 640*480 pixels
Sensing Area: 4.9mm × 3.6mm
Sync. System: Internal
Horizontal Resolution: 420TV Lines
Minimum Illumination: 0 Lux
Video Output: 1.0V p-p, 75ohm
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/50(PAL)or 1/60(NTSC)~1/10, 000 Second
BLC: Auto
Current Consumption: Max. 200mA
Power Supply: DC 12V~24V
Operating Temperature: -10oC~50oC, RH 95%MAX
Storage Temperature: -20oC~60oC RH 95%MAX
Lens: F=2.8mm/F=2.0
Lens Angle: 120 degrees

---------------------------------------------------------------------------------------------------------
Welcomes All Customers Vistor Our Factory and Happy to do Business with all overseas
Note: We have strict producing process, aging test and QC to make sure high quality production.
We have established systematic production standard in waterproof, shockproof, temperature resistance,
Humidity resistance, high definition.

Competitive advantage
1. Stable quality (CE FCC ROHS)
2. Most competitive price
3. On time delivery
4. Good aftersales service
5. All products must test one by one wartproof resistance and high/low temperature resistance
6. Warranty: 16months
7. OEM, ODM welcome

Guangzhou X&Y Electronics Co., Ltd. Was established in Guangzhou in 2005. We are a hi-tech enterprise engaged in the R&D, production, and sale of car camera system, car DVR camera. We guarantee punctual delivery, competitive price and prompt response. We welcome your inquiries and look forward to establishing long-term business relationships with you in the near future.
------------------------------------------------------------------------------------------------------------------------------

Company Phone: +86-20-29036269

Company Fax: +86-20-87003595

Guangzhou X&Y Electronic Co., Ltd.

Website: http://www.xyglobal.cn

Image Sensor:	1/4" CCD/CMOS
TV System:	NTSC/PAL
Effective Pixels:	640*480 pixels
Sensing Area:	4.9mm × 3.6mm
Sync. System:	Internal
Horizontal Resolution:	420TV Lines
Minimum Illumination:	0 Lux
Video Output:	1.0V p-p, 75ohm
