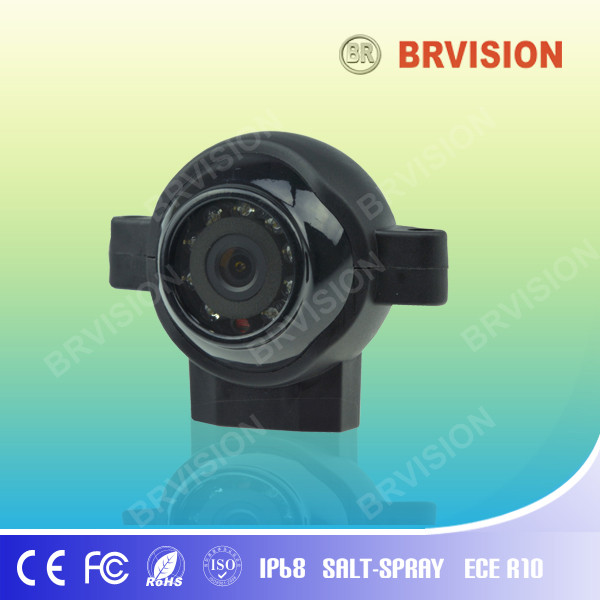

IP68 1/3" Color CCD Rearview Camera (BR-RVC07)

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

IP68 1/3" Color CCD Rearview Camera (BR-RVC07)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, EXW

Payment Terms:T/T, Paypal

Trademark:BRVISION

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BR-RVC07

Shell Material:ABS Plastic

Probe Number:8

Display Type:LCD Matrix

Interface:Air Plug

Function:Waterproof

Definition:700tvl

Chip:CCD

Waterproof Grade:IP68

Alarming Distance:2.5-0.35m

Probe Diameter:18.8mm

Vibration Rate:10g

Export Markets:Global

Additional Info.

Trademark:BRVISION

Packing:Neutral Packaging

Standard:CE FCC ISO E-mark

Origin:Shenzhen

Production Capacity:50000

Product Description

Camera Specification:
- Image Sensor : 1/3 Sony Color CCD
- TV System: N TSC/ PAL
- IP Rating: IP68
- Vibration Rate: 10G
- Ef fective Pixels N: 510×492 pixels P: 500×582 pixels
- Horizontal Resolution: 700TVL
- Video Output : 1.0vp- p,75Ohm,
- Built-in Lens:1.8mm
- Wide angle: 170°
- Power Supply: 12V DC(+/-10%)
- Power consumption: <3W
- Silver Alluminium housing.
- Oper at i ng Temp: - 20C° t o +70C°
- Storage Temp: - 30C° t o +80C°

Image feature:Sharp CCD/Sony CCD optional

TV System:NTSC/PAL

Image area:5.961mm×4.276mm

Effective pixels:N:510(H)x492(V)/P:500(H)x582(V)

Horizontal Resolution(TV lines):480 TV lines

View angel:2.8mm 120°

water-proof rating:IP67-IP68

minimum Illumination:0 Lux with IR

IR LED:18 PCS

Electronic Shutter Time:1/50(1/60)-1/100,000sec.

Scanning System:2:1 Interlace

Sync System:Internal

S/N ratio:>48dB

Video Output:1.0Vp-p,75ohm

Power Source:DC12V±10%

BLC:automatism

AGC:automatism

White Balance:automatism

Operation Temperature:-20ºC~+75ºC(RH95%Max.)

Storage Temperature:-40ºC~+85ºC(RH95%Max.)
