Integrated Low Pressure Solar Water Heaters, Solar Geyers

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
1.0	US $ 97.0-273.0/ Piece

Price:$97.0 - $273.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Western Union

Price Valid Time:From May 03, 2015 To May 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:JLF-SNP20

Max. Capacity:>200L

Structure:Compact Type

Pressure:Unpressurized

Interior Material:Stainless Steel

Collector Components:Glass Vacuum Tube

Certification:CE, ISO9001, CCC

The Gradient:30-60degree

Product:Integrated Low Pressure Solar Water Heaters,Solar

Export Markets:Global

Additional Info.

Trademark:JJL

Packing:Standard Export Carton with Foam

Standard:58mm*1800mm

Origin:Jiaxing, Zhejiang, China

HS Code:8419191000

Production Capacity:36, 000PCS/Year

Product Description

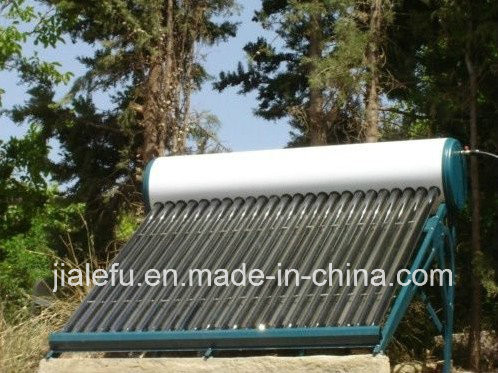

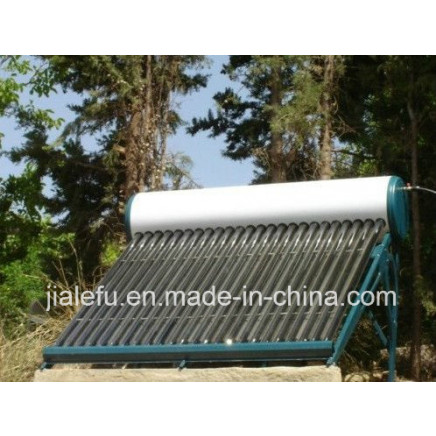

Integrated Low Pressure Solar Water Heaters,Solar Geyers

Specification:
1.Solar Water Heater Inner tank:SUS304-2B 0.4mm/0.5mm/0.6mm
2.Solar Water Heater Outer tank:Galvanized SteelSUS304-0.4mm
3.Solar Water Heater Insulation layer:50mm
4.Solar Water Heater Bracket: Galvanized Steel 1.5mm
5.Solar Vacuum Tube:?47x1500mm/?58x1800mm/?58x2000mm
6.System Capacity:100~360L
7.Heat preservation:72 hours
8.Hail resistance: 25mm
9.Optional Accessories: Assistant Tank,Electric Heater,Controller,Magnesium Stick,etc.
Features:
Cheap and reliable solution,Simple structure, Easy installation
High efficiency
Withdraws water by gravity,working pressure no more than 0.1MPa
Operates without any power supply
Electric heater can be applied, 1500W or 3000W
Hot water can be used directly, or can be used as a pre-heat

Solar Water HeaterType	Area(m 2 )	Vacuum tube			Capacity(L)	20GP/40HQ
Solar Water HeaterType	Area(m 2 )	Length(mm)	Dia(mm)	Qty(pcs)	Capacity(L)	20GP/40HQ
GS-47/1500-15	1.58	1500	47	15	100	57/138
GS-47/1500-18	1.718	1500	47	18	120	61/148
GS-47/1500-20	1.909	1500	47	20	130	56/138
GS-47/1500-24	2.293	1500	47	24	150	48/116
GS-47/1500-30	2.868	1500	47	30	200	38/94

GS-58/1800-12	1.674	1800	58	12	120	58/141
GS-58/1800-15	2.062	1800	58	15	150	51/125
GS-58/1800-18	2.478	1800	58	18	188	43/104
GS-58/1800-20	2.755	1800	58	20	200	37/82
GS-58/1800-24	3.31	1800	58	24	240	33/82
GS-58/1800-30	4.142	1800	58	30	300	27/66
