Insulation PU Sandwich Panel for Cold Storage

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$4.5 - $35.8 / Meter

Min. Order (Meter)	Unit Price
1000.0	US $ 4.5-35.8/ Meter

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Oct 31, 2014 To Feb 28, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Description

Details

Basic Info.

Model NO.:Width 950 1000 1100

Refractoriness:200-450°C

Material:PU

Diameter:50-200

Apparent Density:35~38kg/mł

Color:White

Lenght:<=11.8m

Thickness:50mm-150mm

Export Markets:Global

Additional Info.

Trademark:SXGG

Packing:PVC Film

Standard:SGS, CE

Origin:China

Production Capacity:100, 000 Sqm/Month

Product Description

Description:

Waterproof and fireproof
Easy to install
Low thermal conductivity
GB, SGS
Color coated steel surface
Application: Roof plate of high-end building, wall plate of high-end buildings, cold storage plate for warehouse and buildings, curtain wall, exterior wall insulation board

The sandwich panel, warm keeping, fireproof, easy assemble and disassemble. Hank: 86-13911600740
1) up and down layer: Galvanized color steel sheet, 0.3mm---0.6mm
2) insulation: Polyurethane
3) warmkeeping, fireproof, easy assemble and disassemble
4) can produce according to customer's requirements

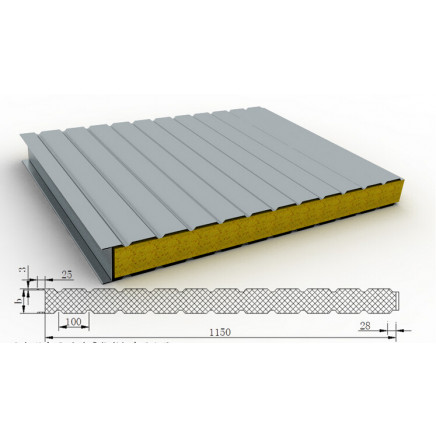

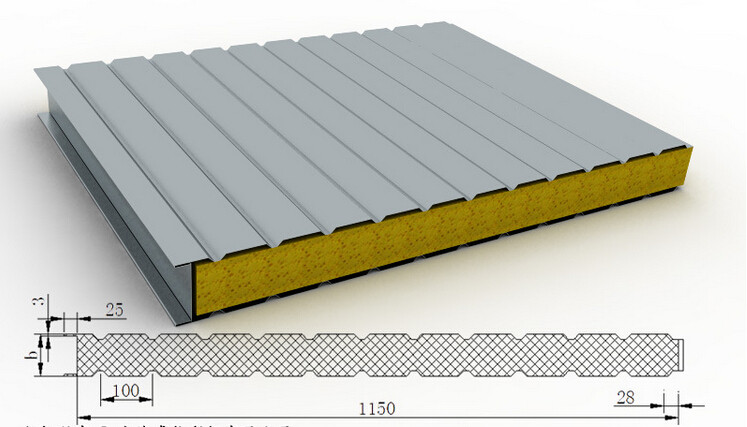

Cleanroom PU Sandwich Panel
Type	1000
Dimensions	Total thickness	50-150mm
	Width	100mm
	Length	Less than 11.8m
External face	Material	PPGI
	Thickness	0.4-0.8mm
	Thickness of the zinc	60-80g/mł
	Corrosion protection	Galvanized
	Coating	Prepainted
	Thickness of coating	20 micron
	Color	Gray white / according to the RAL / as customer's requirements
	Pattern	Nearly plain
Insulation	Optional foam Material	EPS PU Rockwool Paper honeycomb
	Thickness	50-150mm
	Density	EPS 8~25KG/M3; PU 38-45KG/M3; ROCKWOOL>110KG/M3;
	Thermal conductivity	0.045w/m2k 0.021w/m2k 0.0034w/m2k
Internal face	Material	PPGI
	thickness	0.4-0.8mm
	Thickness of zinc	60-80g/mł
