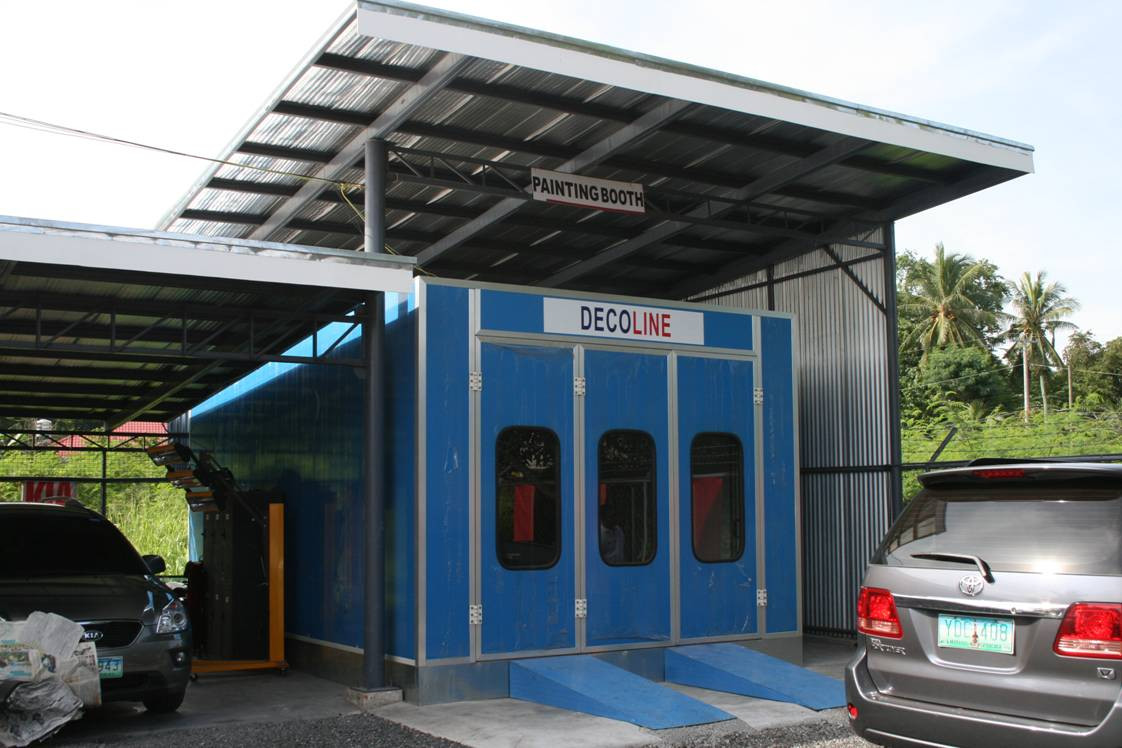

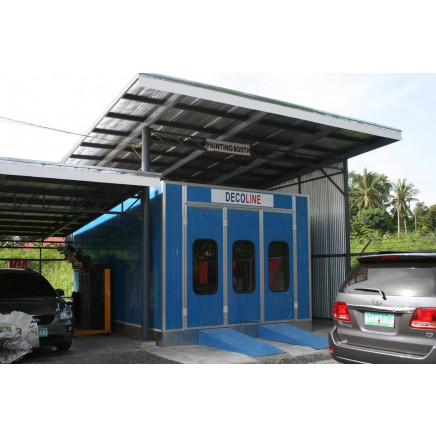

Industrial Painting Spraying Booth with Competitive Price

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$14700.0 - $19110.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 14700/ Piece
11760.0	US $ 19110/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Cash

Price Valid Time:From Apr 02, 2014 To Oct 16, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:YS-60

Certification:CE

Airflow Direction:Full Downdraft Airflow Way

Heating Mode:Diesel

Paint Mist Treatment:Dry-type

Condition:New

Ventilation:Full Downdraft

Air Intake:1X7.5kw Turbo Fan

Air Exhaust:1X7.5kw Turbo Fan

Heating:Riello Rg5s Diesel Burner

Voltage:1X220V, 3X380V, Your Special Voltages Are Accepted

Optional Colour:White, Blue, Orange and Red

Port:Huangpu Port or by Your Order

Main Product:Spray Booth, Prep Station, Infrared Curing System

Export Markets:Global

Additional Info.

Trademark:YOKISTAR

Packing:Bubble Film Packing for Sea Transportation in Bulk

Standard:20?GP can load 1 set, 40?GP 2 sets, 40`HQ 3 sets.

Origin:Guangzhou, China

HS Code:84198990

Production Capacity:120units/Month

Product Description

Model: YS-60
Inside dimention: 6900*3900*2650mm L*W*H
Any Size Requirements Can Be Met.
Designed according to European standard

A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.

The purpose of YOKISTAR spray booth is achieving the fastest drying time, the lowest operation costs and as little environment impact as possible.
In order to promote the efficiency of the workshop and enlarge the profits for our customer, Yokistar spray booth has following advantages:

1. Ventilation
Yokistar spray booth is designed with several ventilation systems to guarantee the best painting conditions. All the filter system and air exhaust underneath create a vertical efficient air flow that is distributed evenly inside the booth and allows overspray to be removed immediately at all space around the vehicle.

2. Air recirculation on bake cycle
100% of the air handled by the fan is put into YOKISTAR spray booth during the bake cycle and only 15%-20% is expelled outside from there, while the balance 85%-80% is recovered and filled up with fresh air by means of the changeover damper.

Even temperature distribution in all points around the vehicle being painted rapid reaching of bake temperature and consequent reduction of bake times high energy savings due to recovery of most of the heat produced for the bake cycle

3. Lighting
The illumination is provided by four-tube, 36-watt light fixtures in the angled ceiling panels and side walls. They are sealed with 0.5mm clear and tempered safety glass. Correct lighting in YOKISTAR spray booth should be required for the good conditions for the painter.

4. Filters
The filtering is composed of high-efficiency heat, dust, paint resistant micro filters. The large surface covered and their progressive density guarantee high dust retention capacity and low resistance to the air passage. The long life of these filters considerably reduces frequency of replacement, contributing to reductions in running costs.

Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

YOKISTAR Products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.

Specification for Spray Booth YS-60
Outside dimension	6900в3900в2650mm LвWвH
Outside dimension	7000в5450в3400mm LвWвH
Main door	Folding door, 4 folds, 3000в2700mm WвH, made by bending steel without cover frame, colour : blue.
Escape door	1 unit, 800в2000mm WвH, colour: white
Basement	Galvanized steel assemble, 300mm high, with adjustable bolts, quadrate steel support, 5 rows of grilles made by flat bar and twisted steel, then galvanized. 4 ramps, external setting, 750в2000mm/pc.
Wall Panels	Thickness: 50mm, width:1150mm, tongue and groove structure, 0.476mm colour steel with 50mm thick rock wool inside, colour: white.
Lighting	Ceiling Lights: 8Unitsв4Pcs=32Pcsв58W, with electronic ballasts, lighting boxes are powered coated.
Lighting	Side Lights: 13Unitsв4Pcs=52Pcsв18W, with electronic ballasts, horizontally set, lighting boxes are powered coated.
Generator setting	Intake air from back upper direction, exhaust air from back upper aluminium alloy steel molding frame; white coated steel outside, galvanized steel inside, filled with heat preservation material in the middle.
Intake and Exhaust air system	1в7.5KW turbo fan, power: 7.5KW, air capacity: 25000m3/h.
Intake and Exhaust air system	1в7.5KW turbo fan, power: 7.5KW, air capacity: 25000m3/h.
Heating system	RIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 26000kcal/h.
Filtering system	Pre-filter, ceiling filter, fibreglass filter, activated carbon filter
