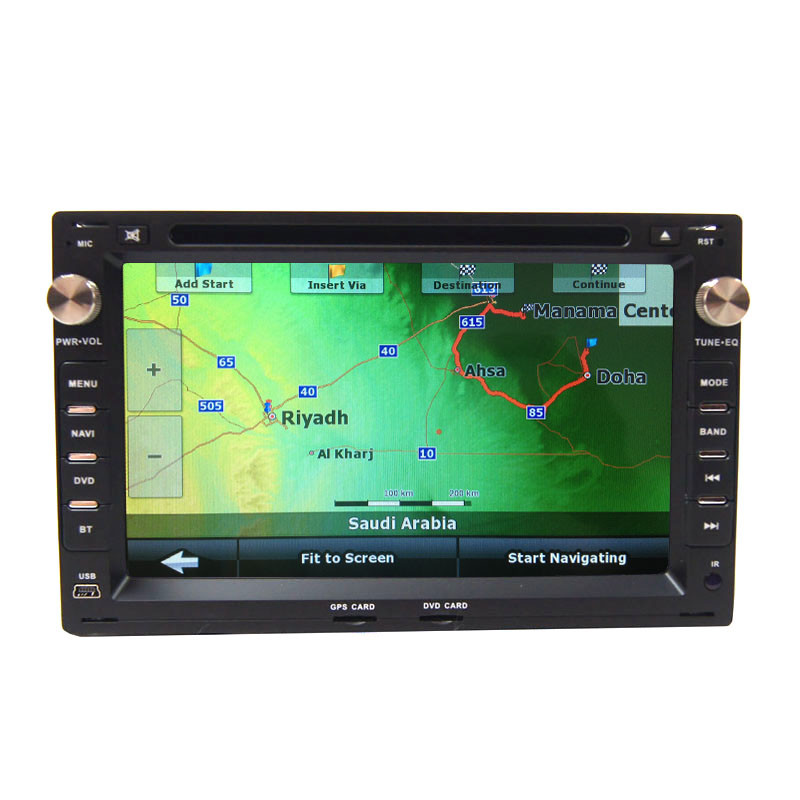

in Dash Volkswagen Double DIN Car DVD Spacecross Fox

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 1.0-2.0/ Piece

Price:$1.0 - $2.0 / Piece

Trade Terms: FOB, EXW, CIF

Payment Terms: L/C, T/T, Western Union, Paypal

Price Valid Time:From Jan 16, 2015 To Mar 29, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:AST-7022

Usage:Car

Type:DVD

Audio Output:L/R Channel

Video Output:VGA

Power Voltage:DC12V

Color:Black

Size:7 Inches

Function:Car Radio Receiver

System:Wince CE6.0

Built in:Radio

Export Markets:Global

Additional Info.

Trademark:ASTRAL or OEM

Packing:Gift Box

Standard:CE RoHS

Origin:China

HS Code:85287180

Production Capacity:5000/Month

Product Description

Multi-function Entertainment:
- Original OE Design, Plug and Play
- Built-in GPS, Intelligent Voice Guide, Route Plan, Advanced POI
- Support DVD/VCD/CD/MP3/MP4/CD-R/WMA/JPG/MPEG
- Bluetooth with A2DP, Hands Free
- Digital TV: DVB-T/ISDB-T/ATSC (Optional)
- Analog TV (Optional)
- MP3/MP4 Player
- USB Display/SD Display
- 45Wx4 power amplification and 4.1 channel pre-out
- Backlight Dimmer

Software Highlights:
- Windows CE 6.0
- Dual Entertainment
- GUI Customization, Skin Change
- Languages Customized: More than 17 languages optional
- Start Up Imagine, easy to customized
- Bidirectional Copy Files between: USB Flash/SD and Built-in Storage
- Friendly Navigator Path Setting, easy to change

Hardware Advantage:
- SiRF Prima 600MHz CPU, Powerful ARM 11 architecture, 300MHz DSP, faster speed, higher performance
- Internet, G3 & G2 (By WCDMA, CDMA2000, EDGE, GPRS, etc. ) (Optional)
- Mobile Hard Drive: Support (exFAT, 2TB)
- Play and charge: iPhone 3G, iPod (Classic, Nano, Shuffle), iTouch
- Video: RMVB/RM, AVI, MPEG2/MPEG4/H. 264/WMV; D1 resolution, (NTSC: 720*480/PAL: 720*576)
- Support 3D Hardware Acceleration: HD 3D Graphics for real 3D map
- High-Speed USB 2.0: 480Mbps
- 2USB Port, Charge to mobile phone
- Storage: 4GB SD/Micro (standard), support SD & USB up to 64GB
- Built-in Memory: 256MB Nand Flash (standard)
- DDR RAM: 128MB DDR-400MHz (two times than its competitor)

Main Application:
- With innovative Technology, Latest Platform, WinCE 6.0 core operation system and 600MHz CPU, Friendly User Interface bring you faster and more convenient operation.
- Support 2D/3D hardware acceleration;
Latest original map software, Intelligent voice guide, Automatic route plan, Advanced point-of-interest management.
- An amazing way to surf the Internet by 3G, extend entertainment further in your car.
Support FM/AM radio, RDS information display is available;
Support U. S., Asia and Europe radio standard.
- Support iPod (Classic, Nano & Shuffle) connection, work with iPhone 3G, iTouch and charge them.
Touch control, more convenient and safer to operate while driving.
- Transfer songs, photos, videos among SD card, built-in Nand Flash & USB Flash. Support max storage of 64GB (SD Card & USB Flash);
Support real USB 2.0 High-Speed, 480Mbps, 40 times faster than USB1.1 standard (12Mbps).
- Vehicle standard DVD loader, wide digital screen, high definition display & stereo sound around.
- Digital TV: (Optional)
Any time and everywhere, to discover amazing football live & other enjoyment by digital TV. (DVB-T/ISDB-T/ATSC)
- MP3 and MP4 can be played via local, SD card and USB disc directly;
Support iPod driver connection.
- Built-in Bluetooth with A2DP, Hands Free, support caller ID display, Transfer Phonebook, Caller records, Call history.
- Rearview camera: (Optional)
A rearview camera dramatically eliminates blind spots, making it safer and easier to park and reverse your vehicle.

Disc support

SVCD/DVCD/DVD/VCD/CD/CD-R/CD-RW/JPEG/WMA/MP3/MP4/DIVX

Power voltage	DC 9V-16V
Storage	128M
Overload	4?
Max power output	45W x 4
Tone control	7db
	Bass 20Hz
	Treble 20KHz
Output port	Audio: 4 independent output channels
Output port	Video: 1 Composite video output channels
Input port	Audio: 2 independent input channels
	Video: 3 composite video input channels

Video Features	Video output level: 1.0 VP-P(75? overload)
Video Features	Video frequency: 20Hz-20KHz(+1 dB)
Temperature	-10ºC+70ºC
Humidity	15-75% (no water frozen)

VCD/CD PART
Video system	Auto/NTSC/PAL
S/N(signal to noise ratio)	60dB( 1KHz 0dB)
Resolution	55dB
Frequency response	20Hz-20KHz
Dynamic range	80dB
Distortion	0.4%

DVD PART
Video system	Auto/NTSC/PAL
S/N(signal to noise ratio)	75dB( 1KHz 0dB)
Resolution	60dB
Frequency response	20Hz-20KHz
Dynamic range	80dB
Distortion	0.4%

FM PART
Frequency range	87.5-108.0MHz
Practical sensitivity	22dB
Down sensitivity	9dB
S/N(signal to noise ratio)	60dB (1KHz 0dB)
Resolution	32dB
Frequency response	40Hz -13KHz
Medium frequency	10.7MHz

AM PART
Frequency range	522-1620KHz
Down sensitivity	35dB
Practical sensitivity	28dB
S/N(signal to noise ratio)	45dB (1KHz 0dB)
Medium frequency	450MHz
Frequency response	40Hz-2.3KHz
