Product Description
We provide all kinds of special purpose vehicle, such as construction vehicle, tank truck, van semi-trailer, and etc. Our HZZ5120ZBG Type Dry Mixed Mortar Back Tank are widely used in all kinds of situation. Our HZZ5120ZBG Type Dry Mixed Mortar Back Tank can make your work much smoother and safer. We have professional design team with more than 20years' experience of special purpose vehicle. We have all kinds of special purpose vehicle fit all work situation for you. Also we accept custom design for our customers. HZZ5120ZBG Type Dry Mixed Mortar Back Tank
Technical Parameters Of Backed Tanker
The whole | Dimension | Outer dimension (mm) | 9700×2490×2760 | Gear box | Type | DF6S750 |
Model | manipulation |
(mm) Wheelbase /front/rear track | 5600 1880/1800 | Manufacturer | Dong Feng Automobile Co.Ltd. |
Operation | Soft axle manipulation |
/mm Front/rear overhang | 1460/2670 | Forward stalls | six |
(°)Approach/departure angle | 20/9 | Ratio | 6.44/3.841/2.29/1.477/1 /0.802/5.802 |
Quality | (kg) Kerb weight | 8805 | Engine | Type and model | Electronic pressurized water-cooled cylinder diesel engine |
(kg) Payload | 3000 |
(kg) Total mass | 25000 | Type | ISDe180 30 |
Special parameter | Mortar tank weight(Kg) | ?3000Kg | Manufacturer | Dongfeng Cummins Engine Co.Ltd. |
(m3) residual rate | ?1.5 | (ml)DISP | 4.5 |
(°) Turn round angle | 0-92 | Types of fuel | Diesel |
Chassis | Type | DFL5120XXYB1 | Displacement standard | National third standard |
model | Second |
ManMfacturer | Dong Feng Automobile Co.Ltd. | (km/h)Max.speed | 90 |
No of axle | 2 |
DRY-MIXED MORTAR STORAGE TANK |
Model of tank | CG-35t CG storage-35t |
(m3)Nominal storage volume | 22 m3 |
(mm) Discharge valve diameter | 250 |
(mm)Height of discharging | 750 | (Kg)Storage weight | 35000 |
(Kg)Kerb Weight | 2900 | (mm)Diameter | 2400 |
(m)Distance of foot spacing(lateral) | 2.1m×2.1m |
(kw)Drive motor power | 5.5 |
(w)Pump power | 750 | (w) Vibration pump power | 370 |
|
|
|
|
|
|
|
|
|
|
|
|
|

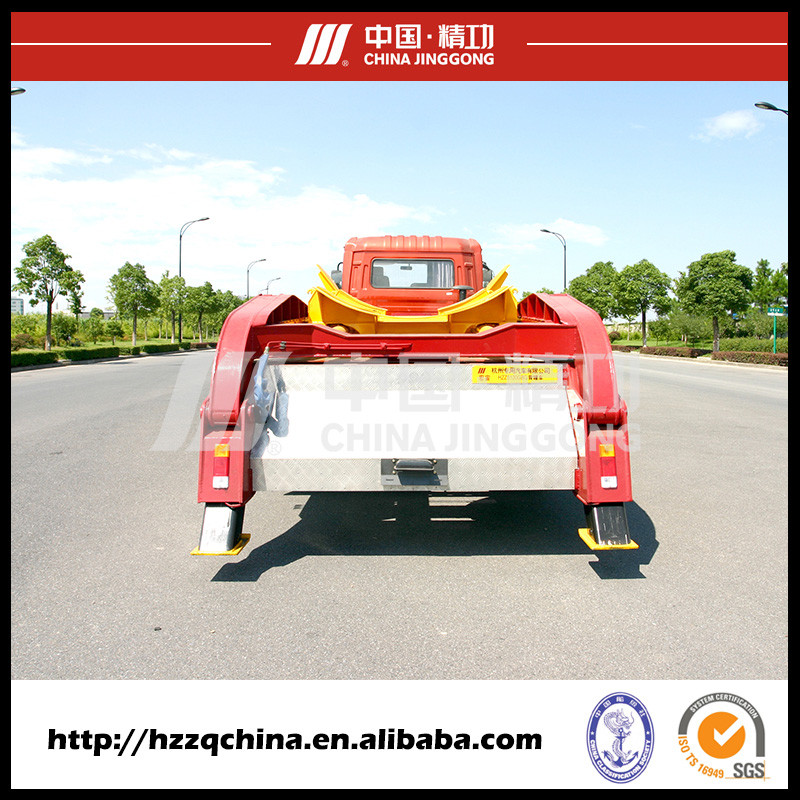

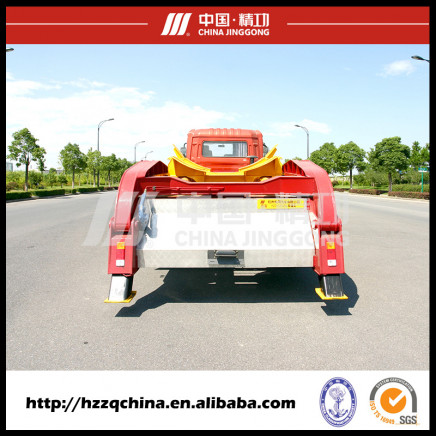

HZZ5120ZBG Type Dry Mixed Mortar Back Tank
HZZ5120ZBG Type Dry Mixed Mortar Back Tank
HZZ5120ZBG Type Dry Mixed Mortar Back Tank
Packaging & Shipping
Our service team can arrange shipment for you, to keep sure you can get our products on schedule. We will make sure all the vehicle safe in delivery.
Quality Control
A quality control team with more than 20 years' experience has been set up in Hangzhou Special Automobile. All the members in this team have more than 20 years' experience in the quality control of special purpose vehicle. Each step in the manufacturing process has been strictly monitored to guarantee the products' high quality. No matter what are your interested items, they will be in the same outstanding quality.
Company Information
We are a professional manufacturer with more than 20years' experience of special purpose vehicle. Our main products is included construction vehicle, tank truck, van semi-trailer, and etc. We have a production base covers an area over 60000 square meters. We have professional QC team with rich experience of special purpose vehicle. Each step in the manufacturing process has been strictly monitored to guarantee the products' high quality. We also have established a R&D team with abundant experience in designing reliable and high quality special purpose vehicle. We can provide the best products to our customers around the globe.
