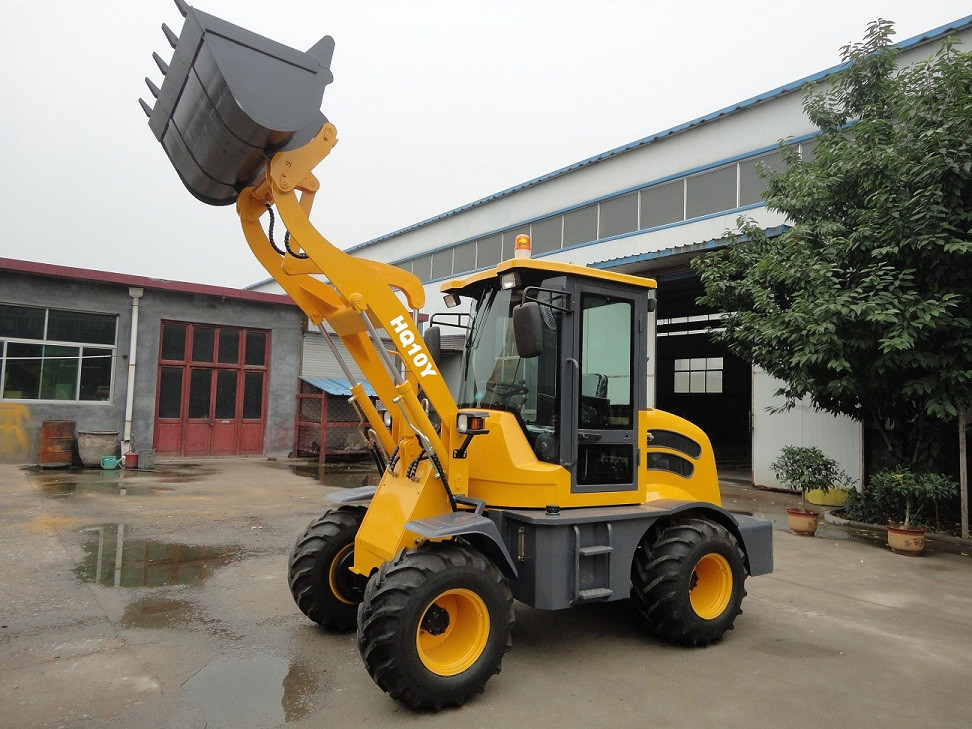

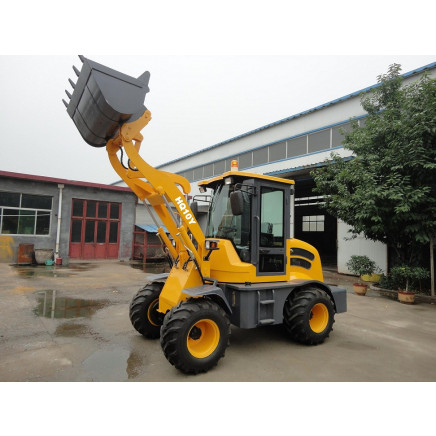

Hydrostatic Wheel Loader (HQ10Y) with CE

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 5000.0-9000.0/ Piece

Price:$5000.0 - $9000.0 / Piece

Trade Terms: FOB, CFR, CIF, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Oct 15, 2014 To Nov 08, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HQ10Y

Type:Wheel Excavator

Usage:Earth Moving

Bucket:Shovel

Transmission:Hydraulic Transmission

Drive Type:Internal Combustion Drive

Bucket Capacity:0.5~1.0m³

Size:Small-Scale

Certification:CE, ISO9001: 2000, SGS,Rops&Fops

Condition:New

Loading Weight:1000kg

Hydraulic System:Hydrostatic

Export Markets:Global

Additional Info.

Trademark:Haiqin

Packing:3 Units in a Hq40 Container

Standard:CE, ISO, SGS, ROPS &FOPS

Origin:Shandong, China

HS Code:84295100

Production Capacity:9000 Units / Year

Product Description

Wheel Loader HQ10Y ( with CE):

1) with CE Certificate
2) Fully Hydraulic Driving, 4 wheel drive.
3) Multi- Function

Specifications:

1.0 Engine Details

(1) Model: Changchai 490/Changchai 485/Changchai 385 / Xinchai Euro III
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine

2.0 Transmission System

(1) Type: Fixed-spindle Power shift
(2) Shift gear control oil pressure: 1.2~1.5MPa
(3) Rated input speed: 2500 (rpm)

3.0 Bucket

(1) Bucket Capacity: 0.6 m3
(2) Bucket width: 1700mm
(3) Bucket type: Heavy-duty bolt on teeth
(4) Rated Load: 1000kg
(5) Operating Weight: 2800kg

4.0 Overall Dimensions

(1) Overall Length (Bucket on ground position): 4550mm
(2) Overall Height
(a) Ground to Cab Top: 2500mm
(b) Dumping Height: 2600mm
(c) Min. Base to the Ground: 230mm
(3) Overall Width: 1730mm

5.0 Operating Specifications

(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4000mm
(3) Driving System: Hydrostatic System

6.0 Brake System

(1) Service Brake: Four Wheel Hydraulic spread-shoed brake
(2) Parking Brake: Hand operated

7.0 Tyre
(1) Model: 8.25-16 / 12-16.5
