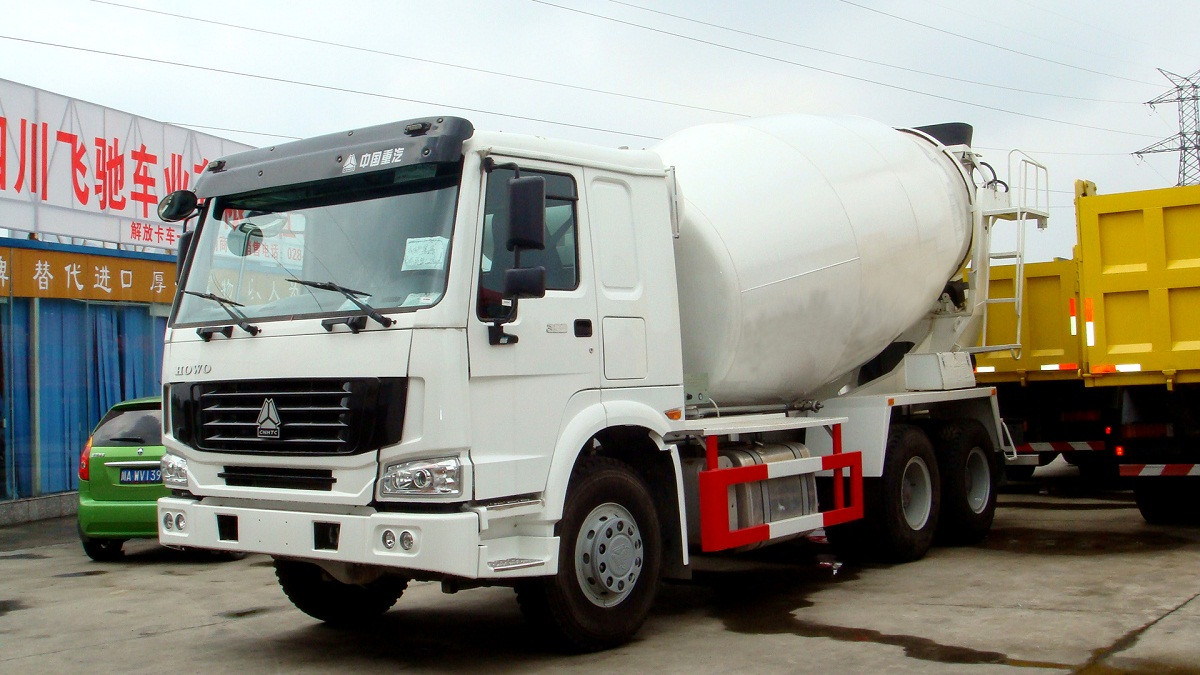

HOWO Truck Mixer Concrete Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$51000.0 - $51500.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 51500/ Piece
2.0	US $ 51000/ Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jan 15, 2015 To Apr 15, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ1257M3247C

Certification:ISO9000

Transmission Type:Manual

Emission Standard:Euro 4

Displacement:9

Engine Type:4 Stroke

Payload:20T

Fuel:Diesel

Drive Mode:6x4

Maximum Horsepower:300-400hp

Condition:New

Overall Length:9200mm

Overall Width:2500mm

Overall Heigth:3950mm

Tare Weigth:13t

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Standard:6*4

Origin:China

Production Capacity:50000 Units/Year

Product Description

Key parts
1.Howo 76 cabin with one sleeper (air seat is optional)

2.Six-cylinder turbocharging diesel engine of 371HP

3. HW19710 gear box 10 forward 2 rear

4 . ZF8090 steering gear hydrualic steering with power

5. WABCO brake system

Advantages
SINOTRUK is very capable to custom mixer trucks for customers . First it has a durable chassis which can used for long time so you can save much mainteninece cost and also it has high speed rotation and low remainning material rate which is very high efficient .I am sure your investement on our trucks will bring back higher return rate than other brand truck .
Detailed specification

Cabin	Driving type 6×4 LHD HOWO Standard cab, HW76 with 1 sleeper and air condition. 70°hydraulically tillable to the front , With air conditioner in the cab
Vehicle main Dimensions	Overall dimensions (L×W×H)mm	9200 x2500 x3980
Vehicle main Dimensions	Wheel base (mm)	3850+1350
Weight in KGS	Tare Weight	13000
	Front axles loading capacity	1x9000
	Rear axles loading capacity	2x16000
Engine	Brand	SINOTRUK
	Model	WD615.47
	Type	4-stroke direct injection,6-cylinder in-line with water cooking, turbo-charging and inter-cooking, high pressure common rail injection
	Horse Power (HP)	371HP
	Emission standard	Euro II
Gearbox	HW19710, 10 forwards, 2 reverse.
Clutch	Reinforced diaphragm clutch, diameter 420mm
Steering Gear	ZF power steering, modol ZF8098, hydraulic steering with power assitance
Fuel tank (L)	300
Tire	12R22.5 tubeless tire 11 pcs including one spare tire
Mixer Body
Volume	10 M³
Hydraulics	Gear box, Motor ,Pump are Italy brand
Mix Slopping angle	12°
Mix Revolving speed	18(r/m
