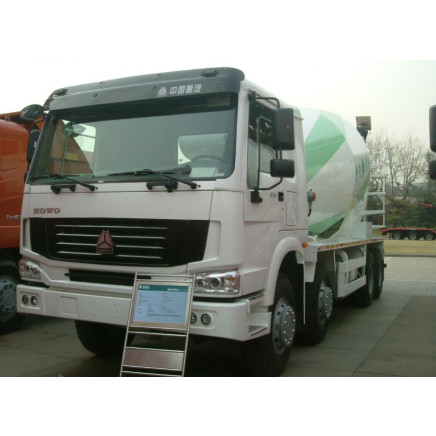

HOWO Mixer Truck / 9m3/ 12m3/ 8m3 Concret Mixer & Cement Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 30000/ Piece

Price:US $30000.0 / Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Aug 02, 2012 To May 30, 2013

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Transmission Type:Manual

Condition:New

Power:Diesel

Truck Type:Dump Truck

Tire Design:Radial

Seats:?5

Tire Type:Solid Tire

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Origin:China

Production Capacity:50000unit/year

Product Description

Traction type: 6X4
Driving type: LHD (RHD is optioned)
Cabin: HOWO 70 cab, flat head, double doors, tippable

Engine brand: Steyr (Weichai)
Engine model: WD615.69 EURII
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
with water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. Output: 336HP@2200rpm
Max torque: 1250NM@1100-1600rpm
Bore/Stroke (mm): 126/130
Mean Position Speed: 9.53m/s
Compression ratio: 15.5: 1
Specific fuel consumption: 198g/Kwh

Gear box:
Model: HW15710(SINOTRUK)
No. Of speeds: 9 forward, 1 reverse

Clutch:
Model: GF420 Spring type
Type: Single -plate dry clutch, mechanically operating with air assisted

Steering: ZF8098 integral type power-steering
Front axle: HOWO front axle
Rear axle: HC16 rear axle
Tyre: 12.00-20 (rim: 8.5-20)
No. Tyre: 10+1spare
Spring: 9/12, 10/12
Fuel consumption (L/100km): 36
Fuel tank capacity (L): 300
Max. Speed (km/h): 90
Max. Gradability(%): 25
Kerb. Mass: 118700kg
Total mass: 25000kg
Wheel base (mm): 3625+1350
Front overhang (mm): 1500
Rear overhang (mm): 2240
Front track (mm): 2022
Rear track (mm): 1830
Turning circle diameter: 24m
Approach angle: 16 degree
Departure angle: 26degree
Dimension (mm): 8715x2496x3850

Body(mixer, drum):
Water Tank: 440L
Mixer drum: 7CBM
Hydraulic pump and motor: ETON (America)
Decelerator: Italy 6SP
Discharged remain Ratio: < 0.1%

STEYER, MAN, BENZ design platform. INTERNATIONAL QUALITY STANDARD
Cabin				air deflector,air-condition ,single or double sleeper, USB application, electric window lifter,GPRS management system. MAN/STEYER cabin
Drive type				Left hand / right hand, 4x2,6x2,6x4,8x4,6x6.
Engine : WEICHA I(WP series ,WD series) CUMMINS series:
Type				Diesel 4-stroke direct injection engine, 6-cylinder in line with water cooling, turbo-charging& inter cooling.
Number of cylinder				Inline six-cylinder		BOSCH oil pump
Displacement				5.762L, 11.596L
Emission				Euro 2,3,4
Max torque (kg.m/rpm)				1 070NM-2000NM@1400-1600rpm
Cl u tch
Type				? 430 diaphragm construction
				Single-plate dry cluth,mechanically operating with air assisted
Gear box ,Transmission
Model				FAST FULLER(recommendation), ZF 8098,
Type				9,10,12,16 speeds AS ( Automatic Synchronizer )
Gear box				Mechanical form , Remote control device
Front axle
Type				STYER / HANDE,
Permissble load			Kg /axle	65 00 kg,7500kg
Rear driving axle
Model				STYER / HANDE driving axle
Type				Pressed axle housing,single/double reduction with planetary wheel reduction.
Permissble load		Kg /axle		1 3000kg,16 000 kg
Track				1800/1860
Transmission ratio				4.42 4.80 5.73 6.72 7.49 8.40 9.94
Tyre :
				Bias/Radial TYRE 315/80R22.5 / 12.00R20
Braking sytstem
Brake					ABS,ASR
Service brake					Dual circuit pneumatic brake
Parking brake					Spring energy,compressed air operating on rear wheels
Hanging
Type	FR/RR				Spring plate,Lug/Multi-leaf spring
Electric equipment
Operating voltage					24v,negative grounded
Battery voltage/capacity					12v/135A,165A
Turning technology					ZF8098 hydraulic pressure steering system
Oil Tank : 38 0L -1000L
Dimension of King pin(5th wheel): 50(2’’),90(3.5’’).
Other option: PTO, more than 20 colors’ surface, strengthen leaf spring.mainly as your requests.
