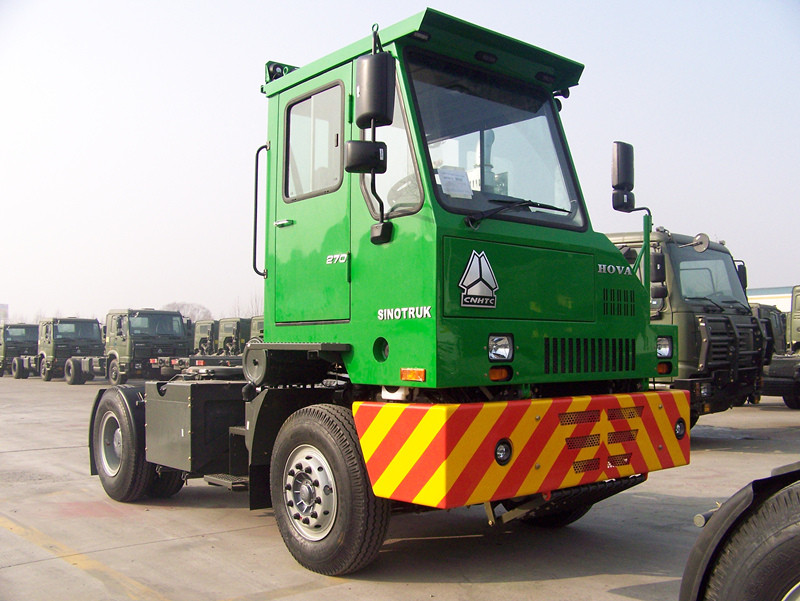

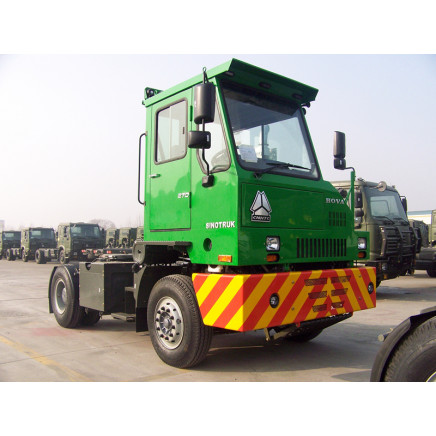

HOWO Hova 4X2 Terminal Pier Tractor Truck for Port Application

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 40000/ Piece

Price:US $40000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Nov 11, 2014 To Feb 10, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ5371TQYM30102

Transmission Type:Manual

Power:Diesel

Load Capacity:11-20t

Emission Standard:Euro 2

Drive Wheel:4з2

Seats:?5

Horsepower:351-450hp

Engine Capacity:?8L

Tire Type:Solid Tire

Tire Certification:ECE

Tire Design:Radial

Condition:New

Color:Depend on The Consumer

Export Markets:Global

Additional Info.

Trademark:SINOTRUK

Packing:Packed in Nude

Origin:Shandong, China

Production Capacity:2000PCS/Year

Product Description

EngineMake: SINOTRUK
Engine model: WD615.62, Euro II emission standard
4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 266hp(196kW) at 2200 r/min
Maximum torque: 1100 /1100~1600
Displacement: 9.726L
Compression ratio: 17: 1
Specific fuel consumption: 195 g/kWh
Clutch? 430 mm diaphragm spring clutch, hydraulically operating with air assistance
TransmissionAllison 3500 4 forward& 1 reverse
Ratio: 4.593 2.257 1.535 1.0; R4.999
Front AxleModel: HW7
Rear AxlesModel: STR Ratio: 10.77
ChassisFrame: Parallel ladder frame with section 350з 80з 10 (mm), subframe with section 335з 85з 10 (mm)
Front suspension: Vertical semi-elliptic leaf springs, telescopic shock absorbers
Rear suspension: Rigid suspension
Fuel tank: 230L
SteeringModel: EATON, hydraulic steering with power assistance
Steering pump pressure: 12.5Mpa
BrakesBrake: WABCO brake, with air desiccator
Trailer brake: Dual pipe compressed air brake
Service brake: Dual circuit compressed air brake
Parking brake: (hand brake)spring energy, compressed air operating on rear wheels
Wheels & TyresRims: 8.5-20
Tire pressure (kPa): 700Б 10
Tyres: 11.00-20

Engine	Make: SINOTRUK
	Engine model: WD615.62, Euro II emission standard
	4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and intercooling
	Maximum output: 266hp(196kW) at 2200 r/min
	Maximum torque:1100 /1100~1600
	Displacement: 9.726L
	Compression ratio: 17:1
	Specific fuel consumption: 195 g/kWh
Clutch	?430 mm diaphragm spring clutch, hydraulically operating with air assistance
Transmission	Allison 3500 4 forward& 1 reverse
	Ratio: 4.593 2.257 1.535 1.0;R4.999
Front Axle	Model:HW7
Rear Axles	Model:STR Ratio: 10.77
Chassis	Frame: parallel ladder frame with section 350з80з10 (mm), subframe with section 335з85з10 (mm)
	Front suspension: vertical semi-elliptic leaf springs, telescopic shock absorbers
	Rear suspension:rigid suspension
	Fuel tank: 230L
Steering	Model: EATON, hydraulic steering with power assistance
	Steering pump pressure :12.5Mpa
Brakes	Brake:WABCO brake,with air desiccator
	Trailer brake:dual pipe compressed air brake
	Service brake: dual circuit compressed air brake
	Parking brake :(hand brake)spring energy, compressed air operating on rear wheels
Wheels & Tyres	Rims: 8.5-20
	Tire pressure (kPa):700Б10
	Tyres: 11.00-20
Driver's Cab	D10R, Enhanced Unilateral cab,air conditioner, forward turning 60 degree
Electrics	Operating voltage: 24V, negative grounded
	Starter: 24V, 7.5kW
	Alternator: 28V, 1500W
	Batteries: 12V, 165Ah
Dimensions in mm	Wheel base	3200	reference photo
	Front wheel track	2046
	Rear wheel track	1850
	Front/Rear overhang	1350/630
	Approach angle (0)	23
	Departure angle (0)	75
	Overall length	5180
	Overall width	2495
	Overall height	3100
Weight in kg	Dead weight	6900
	Maximum loading capacity	30000
	Total quality Trailer	70000
	Front axle loading capacity	13000
	Rear axle loading capacity	30000
Performance	Maximum driving speed (km/h)	39
	Maximum gradeability (%)	20
	Minimum ground clearance (rear axle)(mm)	298
	Minimum turning radius (m)	6
