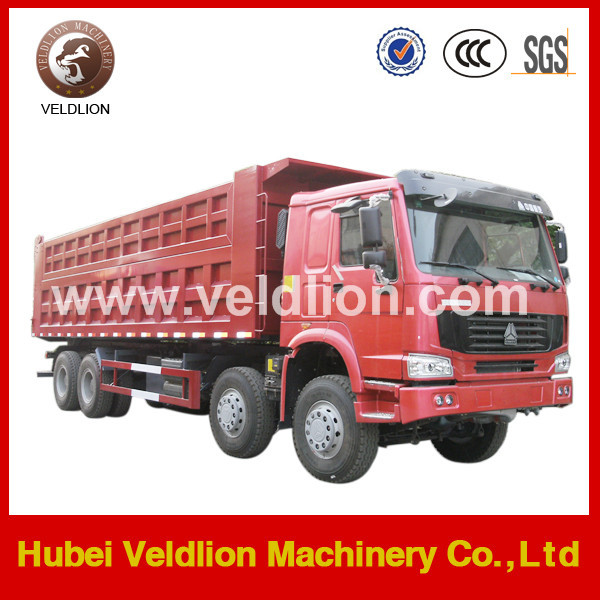

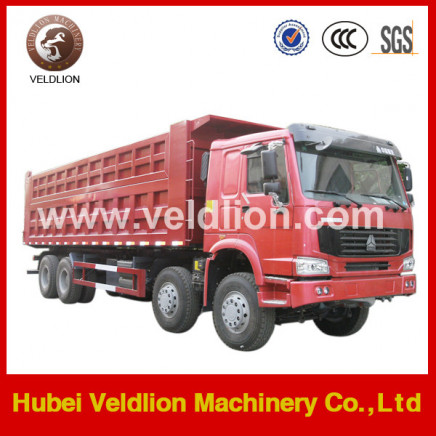

HOWO 8X4 Heavy-Duty Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
1.0	US $ 51000/ Piece

Price:US $51000.0 / Piece

Trade Terms: FOB, CIF, DAP

Payment Terms: L/C, T/T, Paypal

Price Valid Time:From Jun 11, 2014 To Aug 29, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VL3317

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 2

Drive Wheel:8в4

Engine Capacity:4-6L

Seats:?5

Horsepower:251-350hp

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Tubeless

Dumping Type:Front Lifting Style

Condition:New

Color:Red/Yellow/Green/White

Fuel:Diesel

Certification:ISO9000, CCC, EPA

Engine Type:4 Stroke

Volume:10000-20000L

Type:Dump Truck

Payload:30t

Export Markets:Global

Additional Info.

Trademark:VELDLION

Packing:Nude Packing or Roro Ship

Standard:CCC $ ISO9001

Origin:China

HS Code:8716311000

Production Capacity:3000PCS Per Month

Product Description

1. Technical parameters of the tipper dump trucks.
(1) For construction and industrial trucks
(2) Curb Weight: 12170kgs
(3) Loading Weight: 12700kgs
(4) Box Volume: 21000L
(5) Engine Power: 266Hp - 420Hp
(6) Steelsheet Thickness: Floor 8mm, front, side and back wall 6mm

We also supply you the other type of HOWO, 4*2, 4*4, 6*2, 6*4, 6*6, 8*4 different engine power(270HP, 290HP, 310HP, 330HP, 350HP, 380HP, and 420HP), EURO II, and EURO III dump truck. We could choose the right truck for you and confirm that is your good assistant in your work.

2. Company introduce
HUBEI VELDLION MACHINERY CO., Ltd is an authorized Special Trucks manufacturer. We are specialized in the production of a variety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
Our main products:
1. Heavy duty truck,
2. Fire engine truck
3. Truck mounted with crane
4. Dump truck
5. Water truck,
6. Fuel tanker,
7. Van truck, insulated truck, refrigeration truck
8. Fecal suction truck, sewage suction truck,
9. Concrete mixer truck,
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Bulk cement truck,
13. Chemical liquid tank truck

3. Contact us
Atten: Ms. Julia He
Mobile: 0086-15927026165
www.veldlion.com

Model	8x4 dump truck
Cabin	Four point s suspension HOWO Cabin with spring and air shock absorber, VDO panel
	Adjustable steering, sun cover
Engine	Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
Model:	WD615.69		STEYR technology(CNHTC)
	MAX Horse power:		336HP/247kw
	Displacement(L):		9.726liter
	Max torque:		1350NM@1100-1600rpm
	Bore/stoke:		126mm/130mm
Gear box	CNHTC		Max torque:1500NM
	Model:		HW15710
	Speed:		10speed,2reverse
Axle(front/rear)
Front axle	HF9 STEYR technology front steering axle
Tandem	HC 16ton STEYR technology double reduction hub reductor driving axle
Clutch	D430 diaphragm type clutch
Brake	Service brake: Dual lines air brake
	Parking brake: Spring-Power drum brake
	Engine brake: Engine exhaust brake(EVB)
Steering	ZF8098, driver sit at the left hand side
Electric Equipment
	Operating voltage:		24Vnegative grounded
	Starter:		24V,5.4KW
	Alternator		28V,758W
	Battery voltage		12V/135Ah,cigar lighter
Frame	strengthen steel frame, designed according to tough road condition.
Tyre	12+1 spare tyre with rim
	12.00-20 nylon tyre
Suspension system: strongthen heavy duty Leaf spring type
	Front/Rear	14,13/14,13/12
Dump body: type of body :
Inside size of Body(mm): 7300x2300x1500,6x4mm, made of high intensity steel
Lifting type: Front lifter type hydraulic system. Refer to picture
Overall dimension(mm): 10245x2496x3170,3386(Length x width x height)
Wheelbase	1800+3500+1350mm
Track:
	Front/Rear	2022/1830
	Approach/Departure angle	19/18
	Front /Rear overhang	1500/2095
	Max speed	75km/h
Kerb weight:	14860kg
Oil tank capacity	300L fuel tank
