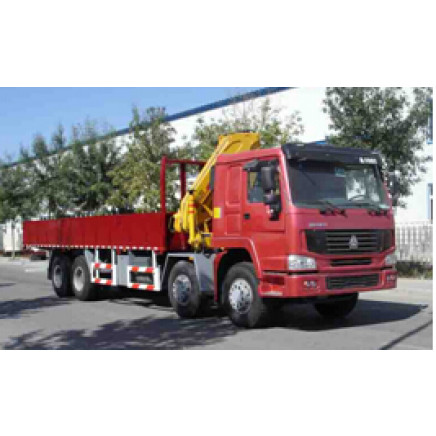

HOWO 8X4 Crane Truck 371HP

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$54000.0 - $55000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 55000/ Piece
2.0	US $ 54000/ Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jan 16, 2015 To Apr 16, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ

Load Capacity:21-30t

Drive Wheel:8×4

Engine Capacity:4-6L

Seats:?5

Horsepower:351-450hp

Tire Type:Solid Tire

Power:Diesel

Tire Design:Radial

Transmission Type:Manual

Tire Certification:ISO

Emission Standard:Euro 2

Condition:New

Tare Weight:17000

Payload:30000

Front Axles Loading Capacity:2X9000

Rear Axles Loading Capacity:2X16000

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:HOWO

Origin:China

Production Capacity:2000 Units/Year

Product Description

HOWO 76 cab, with air condition and one bed, 70°hydraulically tillable to the front as attached photo for ref.

Overall dimensions (L x W x H) mm 11700×2500×3950 Carriage Size (L x W x H) mm7600×2500×600

Wheel track (front/rear) (mm) 2022/1800 Wheel base (mm)1800+4600+1350

Approach/Departure angle(°)16/19

Max. driving speed(km/h)		90
Engine	Brand	Sinotruck
	Model	WD615.47
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	371
	Max Torque (N.m)	1500@1100-1600
	Emission standard	Euro II
Gearbox	HW19710 10 Forwards gear & 2 reverse gear
Steering	ZF8098, from Germany
Tire	12R22.5 radial tyre, 13 pieces with one spare
Clutch	Reinforced diaphragm clutch, diameter 430 mm
Crane specifications	Brand : XCMG
	Type: Folded
	Max lift capacity: 16000 kg
	Max working radius 11.52 m, Max lifting height : 13.52 m
Twist Lock	4 Nos for one 20ft container
Production cycle	30 days

Model	SQ16ZK4Q	Unit
Max Lifting Moment	40	t.m
Max Lifting Capacity	16000	kg
Recommend Power Needed At Recommend Oil Flow	37	kw
Max Oil Flow of Hydraulic System	63	L/min
Rated Pressure Of Hydraulic System	31.5	MPa
Oil Tank Capacity	250	L
Rotation Angle	(360°) All Rotation
Crane Weight	5000	kg
Installation Space	1500	mm
