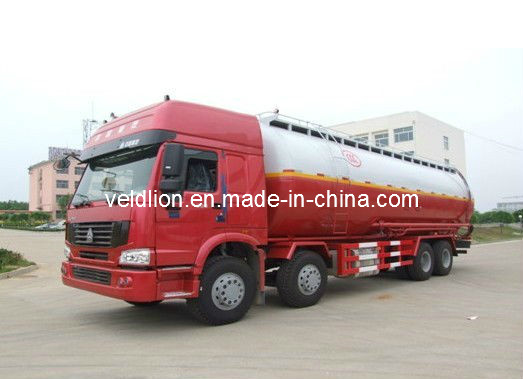

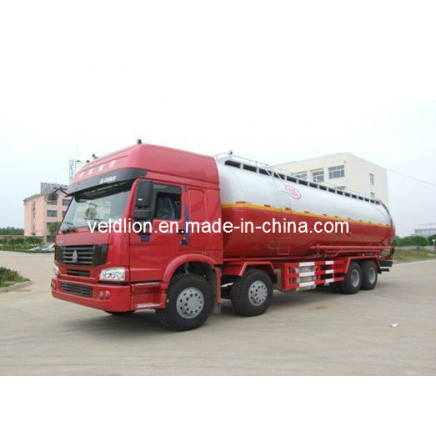

HOWO 8X4 Chassis Bulk Cement Tank Trucks

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 53650/ Piece

Price:US $53650.0 / Piece

Trade Terms: FOB, CIF, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jul 30, 2015 To Oct 30, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VL5311

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 3

Tank Volume:5001-10000L

Drive Wheel:8в4

Seats:?5

Horsepower:150-250hp

Engine Capacity:4-6L

Storage:Water

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Tubeless

Condition:New

Fuel:Diesel

Certification:ISO9000, CCC

Engine Type:4 Stroke

Volume:10000-20000L

Type:Bulk Cement Tank Truck

Payload:30t

Export Markets:Global

Additional Info.

Trademark:VELDLION

Packing:Nude Packing or Roro Ship

Standard:CCC $ ISO9001

Origin:Hubei, China

HS Code:8706002200

Production Capacity:3000PCS Per Month

Product Description

Condition: New
Storage: Cement
Drive Wheel: 8X4
Horsepower: 251 - 350hp
Transmission Type: Manual
Fuel Type: Diesel
Tank Volume: 15001 - 30000L
Engine Capacity: 9.726
Dimensions (L x W x H) (mm): 12000X2500X3850
Brand Name: HOWO
Gross Vehicle Weight: 31000
Color: As per your request

Type		Bulk Cement Tank Truck
Model		TAG5310GFLA	Tank diameter(mm)	2500
Length(mm)		12000	Tank thickness(mm)	5
Width(mm)		2500	Tank Material	Q235
Height(mm)		3850	Head thickness(mm)	6
Capacity(m 3 )		37	Front overhang(mm)	1500
Loading mass(kg)		14120	Rear overhang(mm)	2700
Curb weight(kg)		16750	Approach/departure angle (╟)	16/11.9
			Wheelbase(mm)	1800/4600/1350
Engine	Model	WD615.95	Track(F/R) (mm)	2022/1830/1830
	Power(kw)	247	Axle number	4
	Cylinder number	6
	Rate speed(rpm)	2200
	Displacement(ml)	9726	Steel Plate spring (pics)	Left	14
	Torque(N.m)	1350		Right	13
Tire Model		12.00R20,12.00-20/ 11.00R20,11.00-20	Tire number	12
Warning system		Each side and rear with reflecting mark
