HOWO 6*4 Tipper Trucks

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$41500.0 - $44500.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 41500/ Piece
100.0	US $ 44500/ Piece

Trade Terms: FOB, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Oct 11, 2014 To Jan 11, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VL3257

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 3

Drive Wheel:6в4

Engine Capacity:6-8L

Seats:?5

Horsepower:351-450hp

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Bias

Dumping Type:Front Lifting Style

Condition:New

Tipper Truck Chassis:Sinotruk Zz3257

Truck Type:HOWO Tipper Truck

Dump Truck Color:Red, Other Optional

Dump Truck Type:6X4, Front Tipping

Dump Truck Size:25 Tons Tipper Truck

Export Markets:Global

Additional Info.

Trademark:VELDLION

Packing:Nude Packing or Roro Ship

Standard:CE, ISO9001: 2000

Origin:China

Production Capacity:3000 PCS Per Month

Product Description

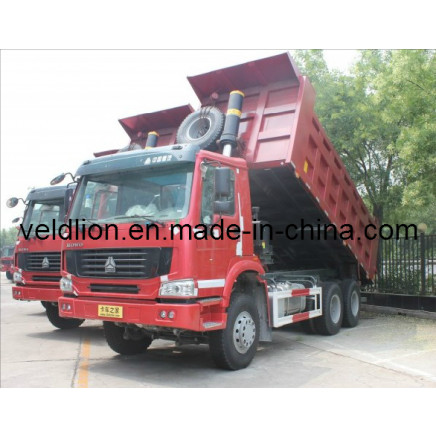

HOWO 6X4 tipper truck

1. Quick Details of the HOWO 6*4 Tipper Trucks:

(1) The dump truck are mainly used for sand, rocks, and gravel transportation.
(2) Curb Weight: 12500kgs
(3) Overall Dimension: 8240в 2500в 3350mm
(4) Max Loading Weight: 30000kg
(5) Drive Mode: LHD/RHD, Diesel Engine 266Hp - 420Hp
(6) Steelsheet Thickness: Floor 8mm, front, side and back wall 6mm

We can offer 4x2, 6x4, 8x4, Dongfeng, Sinotruck, FOTON, SHACAN, FAW, CAMC, ISUZU, JMC, dump trucks.

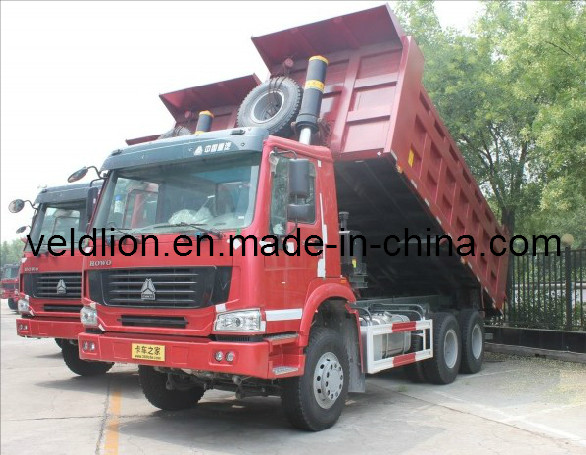

More photos for your reference:

2. Company introduce
HUBEI VELDLION MACHINERY CO., Ltd is an authorized dump truck manufacturer. We are specialized in the production of a variety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.

Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Our Service:
(1) Over 400 workers include our sales and engineers will offer you the best design, price and quality;
(2) Pefect after-sales service, offer long days quality guarantee.
(3) within 7-24 hours feedback.

3. Contact us for HOWO 6*4 Tipper Trucks
Atten: Ms Julia He
Mobile: 0086-15927026165
www.veldlion.com

4. Parameters datasheet of HOWO 6*4 Tipper Trucks

>>Basic information > >
Type:	ZZ3257N3648B	Driving type:	6X4
Wheelbase:	3625+1350mm	Length:	8.214 m
Width:	2.496 m	Height:	3.17 m
Between:	between: 2020, between after: 1820 MMMM	Weight:	12.11 t
Rated load:	12.76 t	Maximum total:	25 tons
Close Angle:	19 degrees	Leave Angle:	26 degrees
>>Parameter > > container
Carrier L:	5.6 m	Carriers W:	2.3 m
Carriers H:	1.2 m	form:	Rear tipper
Engine > >
Engine type:	CNHTC WD615.95 E	Cylinder number:	6
Emissions:	9.726L	Emissions standards:	Euro III
Marion:	336 hp	Maximum output power:	247KW
Torque:	1350N @ m	The maximum torque speed:	1600
The rated speed:	2200RPM	Engine form:	EGRIn-line six, water cooling, four stroke, turbocharged, electronic fuel injection pump fuel supply rate, EGR
>>Gearbox > >
The gearbox type:	HW18709	The reverse gear number:	1
Forward gears gear number:	9
>>Chassis > >
Driving axle description:	Steyr 16 t double driving axle	Driving axle allowable load:	18000KG
Finally transmission ratio:	5.45	The spring of number:	9/12, 10/12
>>Tire > >
The tyres number:	10	Tire specifications:	12.00-20,11.00-20
>>Tank > >
Tank has a capacity:	300L
