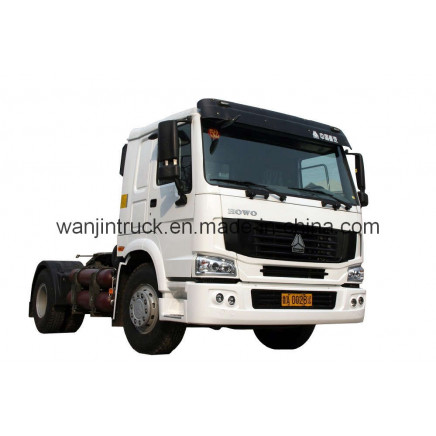

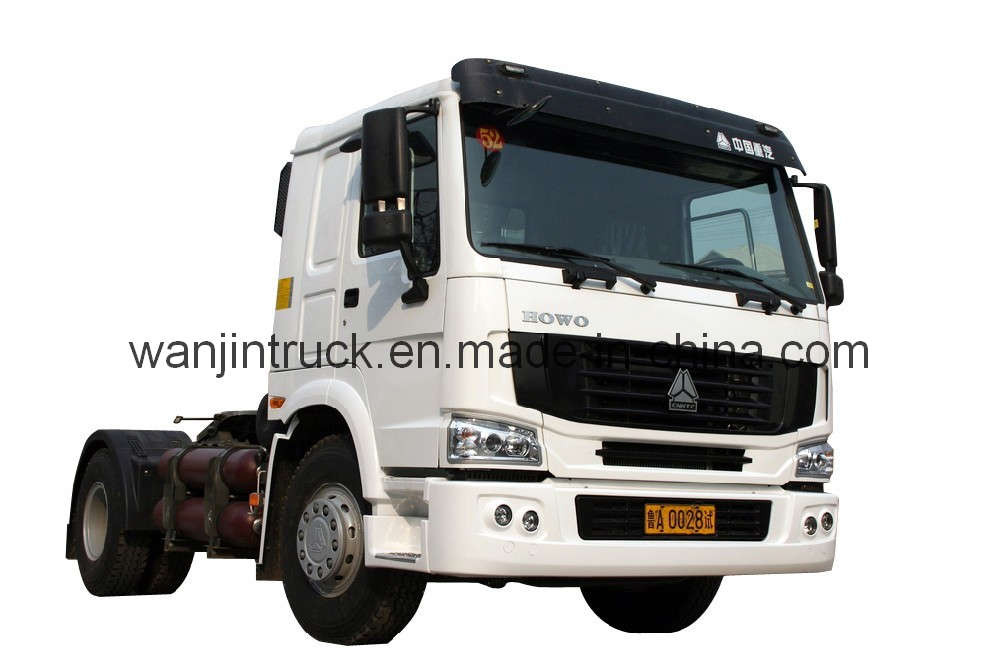

HOWO 4x2 Tractor Truck / Trailer Truck

More Views

HOWO 4x2 Tractor Truck / Trailer Truck

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 21000.0-60000.0/ Piece

Price:$21000.0 - $60000.0 / Piece

Trade Terms: FOB

Payment Terms: L/C, T/T, D/P

Price Valid Time:From Jul 21, 2015 To Aug 25, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:Trailer Truck

Transmission Type:Manual

Power:Electric Energy, Diesel

Load Capacity:11-20t

Emission Standard:Euro 2

Drive Wheel:6×4

Seats:?5, 2

Horsepower:351-450hp

Engine Capacity:4-6L

Tire Type:Inner Tube

Tire Certification:ISO, ISO

Tire Design:Tubeless, Radial

Condition:New

Truck Type:Dump Truck

Export Markets:Global

Additional Info.

Trademark:HOWO

Packing:Nude

Standard:CCC

Origin:China

HS Code:8704190000

Production Capacity:20000pcs/year

Product Description

Cab: HOWO/Volvo series cab
Engine: SINOTRUK engine, Euro II & III emission.
Clutch: GF-? 420 spiral spring clutch with high reliability.
Gearbox: SINOTRUK gearbox.
Driving axle: Double reduction driving axle.
Steering gear: ZF8098
Front axle: HF7

HOWO 4x2 tractor head:
1)ISO approved tractor truck
2)Tractor truck with reliable quality
3)Great performance on power
SINOTRUK HOWO 4x2 Tractor Head:
Main features of HOWO tractor trucks:
[1] Driving type: 4x2 4x4 6x4 6x6 8x4 8x6
[2] Engine power: 266HP 290HP 336HP 371HP 380HP 420HP
[3] Clutch: Single-plate dry coil-spring clutch
[4] Propeller Shaft: Double universal jiont propeller shaft with gaer-shaped coupling flange
[5] Steering: ZFpower steering, model zf8098, hydraulic steering with power assistance.
[6] Cab: High roof cab, all-steel forward control, 2-arm windsreen wiper system
Technical parameters of HOWO 4x2 tractor truck:
Vehicle name
HOWO 4- 2 Tractor
Vehicle models
ZZ4187S3511W/SOWA (LHD)
Engine Model
WD615.62
Engine power (HP)
371
Emission standard
Euro 2
Steering
ZF8098 hydraulic steering with power assistance
Cab
HW76 HW79
Transmission
HW19710, 10 forward, 2 reverse
Overall dimensions(mm)
6110- 2496- 2958
Traction pin diameter (mm)
Î¦ 50.8
Total mass (Kg)
18000
Maximum traction(kg)
27400, 27900,
29700, 31000
Kerb weight (kg)
7210
Approach angle / departure angle (° )
16/42
Saddle max. Load weight(kg)
10660
Saddle terrain clearance(Load/Empty) (mm)
1246/1335
Wheelbase (mm)
3500
Front overhang / Rear (mm)
1500/1110
Maximum speed (km/h)
102
Axle-load(kg)
7000/11000
Tire number
6
Tire type
12.00-20, 11.00-20
12.00R20, 11.00R20
Front tread(mm)
2022 2041
Rear tread(mm)
1830

Description		HOWO Tractor Truck
Driving Type		4*2
Overall Dimension(mm)		611024962958
Cabin		HW08
Engine	Model	WD615.69
	Output(hp)	336
	Option	290hp, 371hp
Transmission		HW15710
Clucth		420
Front axle	Model	HF7
	Loading capacity(kg)	7,000
Rear axle	Model	HW1667
	Loading capacity(kg)	16,000
	Option	ST16
Tire	Size	12.00-20
	Option	12.00R20, 12.00R22.5
Tare weight(kg)		7,180
Gross Vehicle Weight(kg)		20,000
Gross Combination Weight(kg)		50,000
Wheelbase(mm)		3500+1350
Front/Rear Overhang(mm)		1500/1110
Front/Rear Wheel Track(mm)		2022/1830

Additional Information
