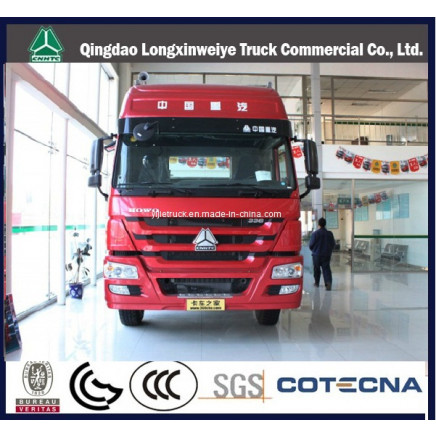

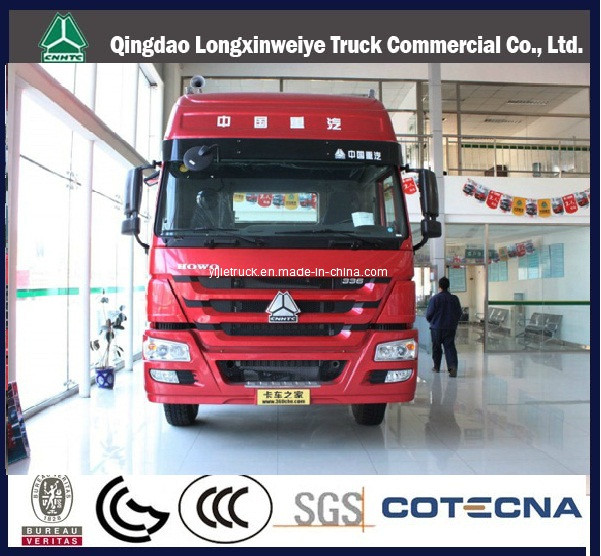

HOWO 420HP 80ton 6X4 Tractor Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Piece)	Unit Price
1.0	US $ 30000.0-40000.0/

Price:$30000.0 - $40000.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Apr 21, 2015 To Jul 21, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ4257V3241V

Transmission Type:Manual

Power:Diesel

Load Capacity:?50t

Emission Standard:Euro 3

Drive Wheel:6×4

Seats:?5

Horsepower:251-350hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:SNIOTRUK-HOWO 7

Packing:Nude Packing

Production Capacity:60000pieces/Year

Product Description

HOWO 420hp 80ton 6x4 Tractor Truck

ZZ4257V3241V
Traction type: 6X4
Driving type: LHD (RHD is optioned)
Cabin: HOWO cab, flat head, double sleepers, tippable, high-roof

Engine brand: Sinotruk(Steyr technology)
Engine model: WD615.47
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. Output: 371HP@2200RPM
Max torque: 1100-1600
Bore/Stroke(mm): 126/130
Mean Position Speed: 9.53m/s
Compression ratio: 15.5: 1
Specific fuel consumption: 198g/Kwh

Gear box
Model: HW79
No. Of speeds: 9 forward, 1 reverse
Forward ratio: 12.42, 8.29, 6.08, 4.53, 3.36, 2.47, 1.81, 1.35, 1.00
Reverse ratio: 12.99

Clutch: 430 Diaphragm type
Steering: ZF8098 integral type power-steering
Fuel consumption (L/100km): 36
Fuel tank capacity (L): 400
Max. Speed (km/h): 90
Max. Gradeability(%): 25
Kerb. Mass: 9180kg
Total mass: 25000kg
Max towing load: 39800kg
Max load on 5th wheel: 15690kg
Turning circle diameter: 24m
Approach angle: 16 degree
Departure angle: 70 degree

Name	HOWO 6x4 tractor truck
Model	ZZ4257N3247C1 LHD
Brand	SINOTRUK-HOWO
Overall Dimensions(mm)	About 6800x2496x 2958,3718,3563,3668
Curb weight(kg)	About 8850
Loading Capacity (kg)	About 40000
G.V.W.(kg)	About 25000
Engine	371hp
Emission	EUROII
Transmission	HW19710, 10 forwards, 2 reverses
Rear Axle	ST13
Front Axle	HF7
Steering System	ZF8098
Tyre	295/80R22.5
Cab	HW76, onesleeper, with air condition
Wheel Base(mm)	3225+1350,3200+1400
Approaching/Departuring Angle( ° )	16/70
Front/Rear Overhang(mm)	1500/725,700
Max Speed(km/h)	90,102
Other	ABS, Saddle
