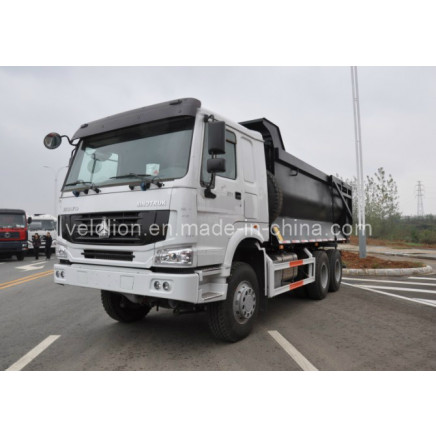

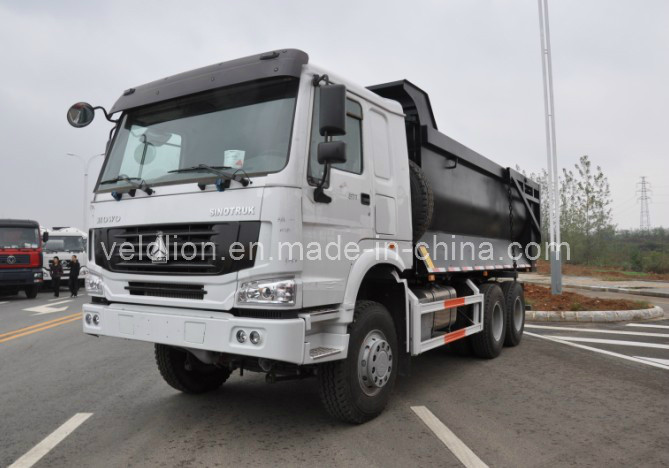

HOWO 25ton Dump Truck (6X4 driving mode, LHD steering, 371HP)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF, FCA, EXW

Payment Terms:L/C, T/T

Trademark:VELDLION

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ3257

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 3

Drive Wheel:6в4

Seats:?5

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Radial

Condition:New

Truck Type:Dump Truck

Type:Heavy Duty Truck

Export Markets:Global

Additional Info.

Trademark:VELDLION

Packing:Nude Packing or Roro Ship

Standard:CCC $ ISO9001

Origin:China

HS Code:8716311000

Production Capacity:3000PCS Per Month

Product Description

HOWO 25ton Dump truck

(1) Technical parameters of the dumper trucks

1. Factory direct supply, competitive price with advanced quality;
2. Can offer various of dumper trucks, dump truck semi trailer...
3. Dump Truck Loading Capacity: 25Tons to 50Tons
4. Chassis is optional, DFAC, FOTON, SINO, SHACAN, FAW, CAMC, ISUZU...

(2) Company main products introduce

1. Water truck

2. Fuel tanker truck, Oil Truck, Tanker Truck

3. Fire engine truck

4. Truck mounted crane, crane truck

5. Dump truck, tipper, heavy duty truck

6. LPG Tank Truck, LPG Truck, LPG Tanker, LPG Semi-trailer, LPG Storage Tanker

7. Bulk cement truck

8. Concrete mixer truck, mixer truck, cement mixer truck

9. Garbage truck, Self-loading garbage truck, garbage compactor truck, sealed garbage truck

10. Fecal suction truck, sewage suction truck

11. High altitude working truck

12. Chemical liquid truck

13. Van truck, insulated truck, refrigeration truck

14. Semi Trailer, Low plate semi-trailer, oil semi-trailer, van semi-trailer, bulk cement transportation semi-trailer, container semi-trailer, chemical liquid semitrailer, etc more than 300 types in total.

Manufacturer			Hubei Veldlion Machinery Co., ltd
Product			Dumper truck
Model			ZZ3257M4147C
Chassis Model /Manufacturer			ZZ3257M4147C/ Sinotruk HOWO
Overall Dimension	Lengthв Widthв Height		8240в 2500в 3350 mm
Box size	Lengthв Widthв Height		560023001100 mm
Total Mass			25000Kg
Max Payload			30000 Kg
Kerb Weight			12480Kg
The parameters of chassis
Chassis Model /Manufacturer			ZZ3257M4147C/ Sinotruk HOWO
driving type			6*4(Left hand driver)
Cab type			single row
Engine	Manufacturer :		China National Heavy Duty Truck Group Company Limited
	Model		WD615.97E
	Rated Power		266HP
	Maximum power		195(KW)
	Displacement		9726ML
	Fuel type		Diesel oil
	Type		Straight six-cylinder, intercooling, Internal EGR
Wheel base			3625+1350mm
Front axle			7T front axle
Rear axle			Double 18T rear axle
Front/Rear wheel tread			2022/1830mm
The number of leaf spring			10/12
Tyre			11.00-20R
The number of tyre			10+1(spare tyre)
A/C Air Conditioning			With Air-Condition
Max Speed			75Km/h
The parameters of box
Box size		560023001100 mm
Material of Box		Q235B quality carbon steel
Floor/edge thickness		8mm/6mm (optional)
Color of the Box		According to your documents
