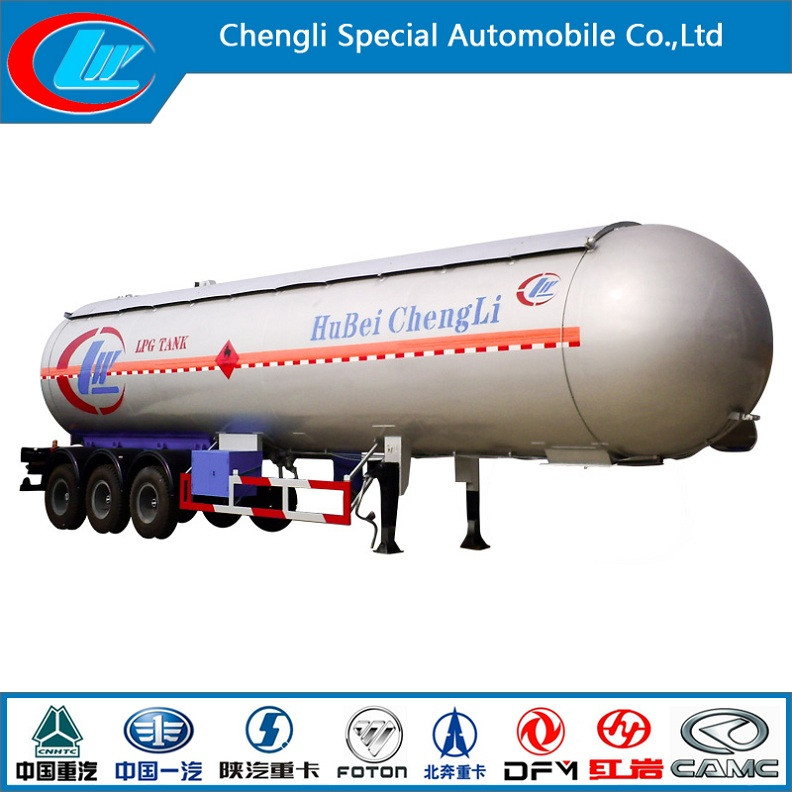

Hottest 40cbm LPG Tank Semi Trailer for Nigeria Market

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (set)	Unit Price
1.0	US $ 47500.0-59290.0/

Price:$47500.0 - $59290.0 / set

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram

Price Valid Time:From Jun 08, 2015 To Aug 05, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW9401

Function:Storage Pressure Vessel

Application:Liquefied Gas

Material:Carbon Steel

Pressure:1.6MPa?p<10.0MPa

Storage Medium:Flammable/Toxic

Pressure Level:Medium Pressure (1.6MPa?p<10.0MPa)

Condition:New

Description:40cbm 2 Axles LPG Tank Trailer

Shape:Ellipsoid

Design Pressure:1.61m PA

Design Temperature:50 Degree

Filling Medium:Liquefied Petroleum Gas

Medium Density:420~450kg/Cbm

Tank Material:Q345r

Corrosion Allowance:1.00mm

Vessel Sort:III

Service Lift:10 Years

Export Markets:Global

Additional Info.

Trademark:CLW

Packing:Naked, Waxing on Roro or Bulk Ship

Standard:CE/ISO/BV...

Origin:Suizhou, Hubei, China

HS Code:8716900000

Production Capacity:20000 Sets/ Per Year

Product Description

40CBM 3 Axles LPG tank trailer
Quick detail:

Volume: 100 cbm 40cbm, 5cbm, 6cbm, 10cbm, 15cbm, 20cbm,32cbm, 50cbm, 60cbm.........
DImensions: 11324X2500X3730mm
Wheel base: 6720+1320
GVW: 30425kg
Material: Q345R
Thickness of the tank: 12mm

Contact person:Albert Du
Tel/Fax: +86-27-83796298
Cel:+86-18660874450/13872880263

Technique Parameters(The parameter is 40cbm for reference)

Main Dimensions
Overall Dimensions	11324X2500X3730mm(L�W�H)
Volume	40cbm
Wheel Base	6720+1320mm
GVW.	30425KGS
Curb Weight	13415KGS
Tank Body
Capacity	40CBM
Shape	ellipsoid
Design pressure	1.61Mpa
Design temperature	50�C
Filling medium	Liquefied Petroleum Gas
Medium density	420~590kg/m�
Tank material	Q345R
Corrosion allowance	1.0mm
Hydraulic test pressure	2.10Mpa
Gas tight test pressure	1.77Mpa
Shell thickness	10.62mm
End plate thickness	10.59mm
Vessel sort	III
Service life	10 years
Trailer
Main Beams	Special design Q345R carbon steel I beam
Axle	2 axles
Axle	13 Ton BPW
Axle load	17380kg
Landing gear	JOST leg
King Pin	JOST 2" bolt-in king pin ,90#
Suspension	Leaf Spring Suspension Optional: BPW brand Air bag suspension
Tire	12R22.5 Tubeless tire
Tire No.	8 pcs +1 spare
ABS System	1 set
Standard Configuration	Single fluid, double side loading and unloading, double valve box, double toolbox, relief valve, thermometer, pressure gauge, emergency shut-off valve, 13 tons BPW axle,9 pieces tubeless tire ,JOST leg, JOST king pin, fire bottles, anti-static adhesive tape, plastic fender, Anti-lock Braking System.

Tank's stucture sketching
List of tank's main structure parts

NO.	NAME
1	Stiffening ring
2	Baffles
3	Pipe of safety valve
4	shell
5	head
6	Pipe of indicator of liquid level
7	Manhole
8	Seat
9	Pipe of gas phase
10	Pipe of thermometer
11	Pipe of liquid phase
12	Seat of support leg
13	Seat of king pin

Delivery time: 45 days after the payment.

Our advantage:
� Competitive Price and Excellent Quality,
� More than 10 years' experience as a manufacturer,
� CCC,ISO,BV certification,
� Perfect after-sale service,
� Customized products available with us,
� Export covering More than 50 countries and regions ,
� Annual production value topped 1500,000,000 RMB (240,000,000 US dollars) per year.

CLW Heavy Industry Co.,Ltd is the branch company of Chengli Special Automobile Co.,Ltd.Chengli Special Automobile Co., Ltd, as the professional manufacturer in the special vehicle circle,  has developed into the biggest professional special vehicle manufacturer of central China starting from scratch since 2004.
Chengli Special Automobile Co., Ltd Factory Supply:
a.special truck manufacturers in Suizhou city,HuBei province, china,
b.more than 300 kinds of special truck for your needing.such as garbage truck,LPG truck ,fuel truck  , water truck ,high platform truck , dump truck , concrete mixer truck ,truck mounted crane ,chemical tank truck , fire fighting truck ,bulk cement truck ,flat bed trailers , low bed trailer , cargo trailer tipper trailer ,fuel trailer ,LPG trailer and more
c.Nearly 15 years experience in produce truck and truck parts field.
d. export turnover has reached 25million dollars and our products have been sold to more than 50 countries, including Africa ,Europe,Southeast Asia, Middle East, North Asia and so on.
Owing to our rich industrial experience,we are offering a wide range of products to the customers, such as LPG tank, fuel tank, water truck, refrigerator truck,garbage truck and so on. We ensure to deliver those products at industry leading price range to meet the financial constraints of our clients.
Our main products:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck,sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

More information of  lpg truck, lpg tank truck, liquid petrol gas tank truck, please feel free to contact with Mr Albert Du.
We will customize the truck according to your requirement.   sincerely welcome you to visit our factory and provide your precious suggestion for us!

FAQ

1.Q:How about quality of your factory quality ?
A:All our trucks 100% new .All our trucks got ISO 9001:2008 and CCC and B&V certificate ,and many truck passed SGS inspection .All our chassis and spare parts are from the original manufacturers with original part number and and anti-fake label, all our suppliers have passed the SGS,BV, and CONTECNA qualification certification, the quality is 100% guaranteed.

2.Q:How many years of your company's service, especially after-sale service?
A: Chengli special automobile Co.,Ltd has been in this field for nearly 15 years and has strong production and distribution capability,we can produce your products in 15 working days.We offer 1 year service after -sale.

3.Q:Is there any advantages of your price?
A: ChengLi Special automobile Co.Ltd is one of the important up date suppliers of Sinotruk and Shacman,Dongfeng , FOTON , FAW ,which provides guarantees for reasonable price and good quality. Meanwhile, other products are procured from our long time business partners, we also can be sure to provide competitive prices.

4. Price term: FOB, CIF

5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.

6. Delivery time: 25 working days after payment is received.

7. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform  us, will make special order for you.

Any question please contact me without hesitation!!!

ChengLi Special Automobile Co., Ltd
Factory Add: South Suburb ChengLi Vehicle Industry Park, Suizhou, Hubei Province, China.
International Trade center
Add:  Room 3102,Block 7, Fanhai International SOHO Town,Jianghan District,Wuhan, Hubei Province, China
Contact person:Albert Du
Tel/Fax: +86-27-83796298
Cel:+86-18660874450/13872880263

Additional Information
