Hot Selling 48V 200ah LiFePO4 Battery Packs for Electric Car

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 1.0-10000.0/ Piece

Price:$1.0 - $10000.0 / Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From Apr 28, 2015 To Dec 01, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-48200

Type:LiFePO4 Battery

Usage:Car, UPS, Electric Power, Lighting, Boat, Solar System

Nominal Voltage:48V

Discharge Rate:Low Discharge Rate

Rechargeable:Chargeable

Rated Voltage:48V

Rated Capacity:200ah

Cycle Life:>2000 Times at 1c Rate, 100% Dod

Battery Type:LiFePO4 Battery

Weight:1/3weight of SLA

Warranty:2years

Application:UPS,Solar and Wind Power Generation Energy Storage

Certificate:CE,UL,RoHS,Tlc,PSE,Ts16949,ISO9001

Export Market:America, Europe, Aisa, etc

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO

Packing:Customized Package

Standard:CE, UL, ROHS, C-tick, IEC, UN38.3

Origin:China

HS Code:8507600090

Production Capacity:1000pks/Day

Product Description

Hot Selling 48V 200Ah LiFePO4 Battery Packs for Electric Car

Product Features

1. Safe: Rigid aluminum alloy housing protection, BMS or PCB built inside to protect the battery over charge or discharge.

2. Environmental-friendly: Accredited with RoHS, without any hazardous and noxious substances.

3. Lighter and smaller: 1/3 weight of lead acid battery, 70% size/weight of Ni-MH/Ni-Cd battery.

4. Powerful: Able to discharge at -20 and 65° C max.

5. Long cycle life: Over 2000 cycles with capacity staying at minium 80%. Lead battery and other Li-ion batteries only have 300-500 cylces, such as Ni-Cd battery, Ni-MH battery.

6. Wide temperature range: Available for use when the temperature ranges from -20° C to 70° C.

7. Quality assurance: BV and SGS approved supplier, with TS16949 and ISO9001 quality management certificates and UL, CE, IEC62133, RoHS certificates.

Our Advantages

1. Specialized in production of lithium iron phosphate batteries for over 4 years.
2. Providing tailor-made high-standard energy solutions in accordance to client's demands.
3. With technical of over 2 years in on-site installation and debugging for more than 1000 HEV and EV.
4. Having made and implemented energy solutions for over 100 styles of EV.
5. With rich experience in drawing up and executing new energy solutions such as special energy-storage systems like wind-solar hybrid power generation and UPS for military and hospital.

6. Whole-journey nanny service after sale.

Applications

1. Large-scale electric vehicles: Electric bus, electric car, E-Tour Car
2. Light electric car: E-bike, electric scooter, e-motor, electric golf car, forklift, cleanness car, electric wheelchairs
3. E-tool: Electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment

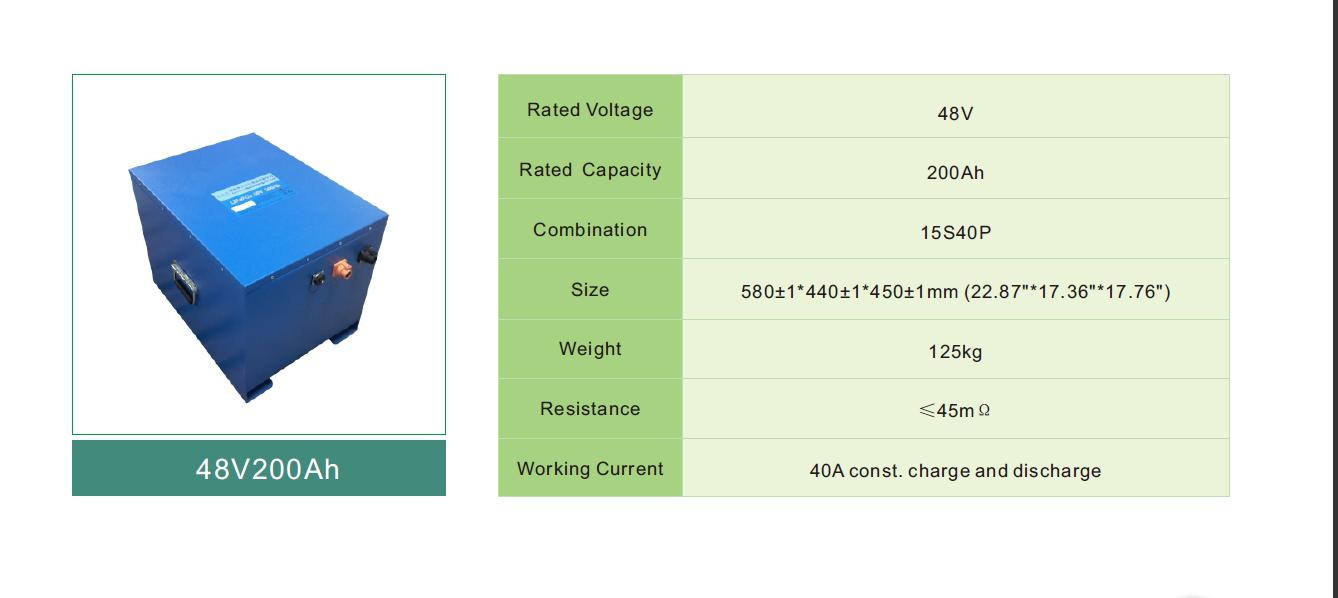

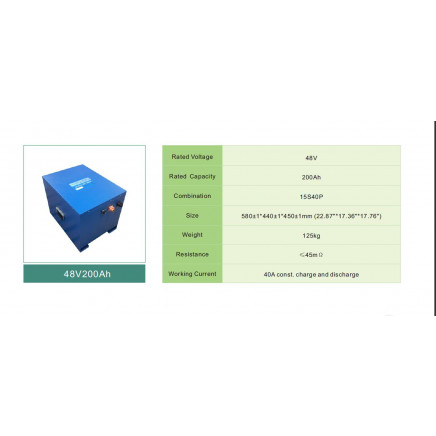

48V 200Ah Main Data

No	Item	Data
1	Battery Model	9600Wh, 48V 200Ah LiFePO4
2	Cells and connection	32650, 3.2V 5Ah, 15S 40P
3	Battery Voltage	48V (Standard Working Voltage)
4	Standard Charge Voltage	About 54.75V
5	Discharge Cut-off Voltage	37.5V
6	Battery Capacity	200Ah
7	BMS Model	PCM(PCB style BMS)
8	Charge Current	40A (need 5 hours to full charge,can design)
9	Max Continuous Discharge Current	50A (can design)
10	Peak Discharge Current	100A (can design)
11	Whole Battery Size	580440450mm Steel Case Packing
12	Net Weight	About 125kg

Lifepo4 Battery Compared with SLA Battery
No.	Item	LiFePO4 Battery	SLA Battery	Notes
1	Weight to Power Ratio	120-130Wh/kg	32-37Wh /kg	4:1
2	Dimension to power ratio	210Wh/L	70Wh/L	3:1
3	Cycle Life Time	More 2000 times	300 times	6:1
4	High Rate Charge /Discharge Performance	Higher than 96%	60~70%	1.6:1
5	Charging performance	1Hour	4Hours	1:4
6	Temperature Range & performance	Below20~60degree centigrade LiFePO4 High temperature discharge current is about 105%	Below20~45degree centigrade SLA Battery temperature discharge current is about 80%	1.3:1
7	Monthly Self-discharge Rate	About 3%	More than 10%	1:3
8	Safety	Not cause fire and explosion when against overcharge, acupuncture, extrusion, high temperature and other unusual conditions.	Good safety	LiFePO4 Battery is the safest lithium battery in the market
9	Environmental	Environmental friendly	Environment pollution	Without any heavy metals or rare metals
