Hot Sale Wheelchair Lift for Disabled (SJG II)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 4000.0-8000.0/ Piece

Price:$4000.0 - $8000.0 / Piece

Trade Terms: FOB

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Dec 19, 2014 To Mar 19, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SJG II

Application:Workshop Crane, Shipboard Crane, Building Crane, Home

Lift Mechanism:Lift Chain

Carrying Capacity:Special Weight Level

Moves:Stationary

Driven Type:Hydraulic

Running Mode:Stationary

Feature:Explosion-Proof, Insulating, Emergency Button

Certification:CE

Color:Customized

Speed:70mm/S

Power Input:220V/50Hz

Drive System:Hydraulic

Control Mode:Automatic

Load Capacity:300kg

Maxplatform Height:8000mm

Pump Station:Imported From Italy

Protection:Emergency Stop Button

Platform Size:1200mm(L)* 900mm(W)

Export Markets:Global

Additional Info.

Trademark:Moral

Packing:Standard Exporting Pakage

Standard:CE ISO

HS Code:8428909090

Production Capacity:100 Sets Per/Month

Product Description

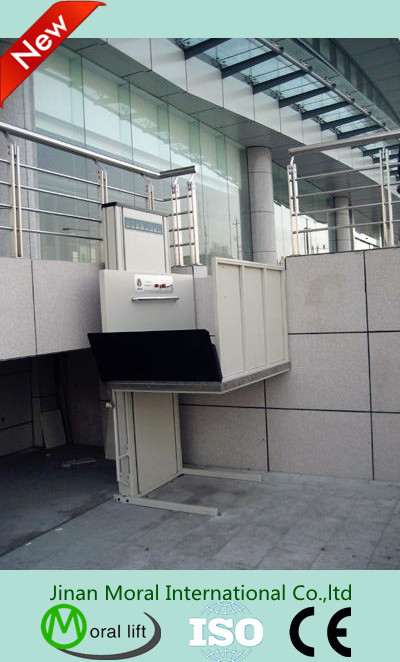

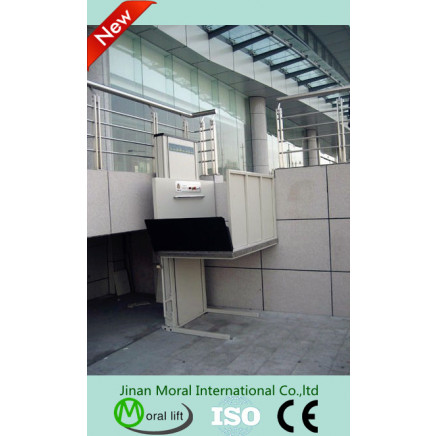

Hot sale wheelchair lift for disabled

Safe, high quality and low price!

HOT SELLER!

Welcome to Moral lift!
We are professional manufacturer for scissor car lifts with CE certification, including wheelchair lift, vertical cargo lift, single scissor car lift, double scissor car lift, double deck car lift, car turntable, horse trailer and so on.
If you have any demand or question, please contact us, sincere service for you!
Please tell us the accurate travel height, load capacity and platform size, we can customize for you, thank you very much!

Do you have difficulty in using stairs, or using a wheelchair or mobility scooter?
Then a residential vertical lift is a great way to ensure that you can always safely and conveniently enter and exit your home.

All of our porch lifts are designed to be completely resistant to the harshest weather conditions and are an affordable alternative to residential elevators.

Platform size	1200mm(L)* 900mm(W)
Dimension	1 20 0 mm(L)*1 40 0mm(W)
Max Platform Height	8000mm
Mi n Platform height	80mm
Configuration	Open through or front and side entrances
Speed	70mm/s
Load capacity	300KG
Control voltage	24V/DC
Power Output	1.5KW
Power Input	220V/50HZ/ (or customized for local power supply)
Drive System	Hydraulic
Control Mode	Automatic
Drive Control	Self-resetting system
Overload	Protection Over current relay
Material of Platform	Checkered slip-proof aluminum alloy
Painting	Plastic electrostatic spraying
Guard panel & drive cabinet (framework)	Aluminum Alloy / 304 stainless steel
Operation Panel	Polished aluminum Alloy
Safety Wane Working Range	75°
Working Condition	Both indoors and outdoors
Working t emperature	From -10°~60°C
Installation	Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground)
Control Device	Calling box (installed on the wall nearby) and remote controller(Extra optional)
Emergency Stop	The lifting and lowering process can be stopped immediately by pressing the emergency button.
Safety device	S afety Interlock	Lock the platform when it is out of control
	Safety Sensor	The operation must be stopped immediately the safety edge meets obstacles during operation.
	Emergency lowering	The platform can be lowered by opening hydraulic valve manually or rolling screw rod.
	Auto-flap	Turn up after lifting
