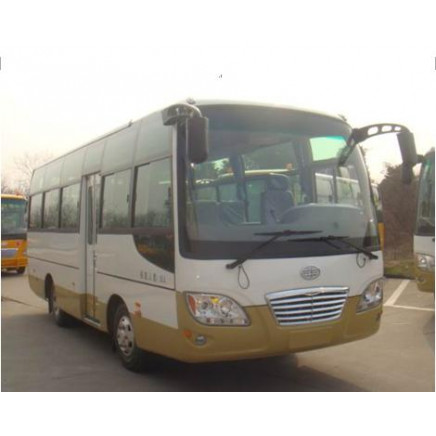

Hot Sale Practical Bus with 30 Seats

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 17000.0-19000.0/ Piece

Price:$17000.0 - $19000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 20, 2015 To Jul 20, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SL7288

Usage:Bus

Structure:Low Floor Bus

Emission Standard:Euro3

Transmission Type:Manual

Seats:30 Seats

Max Speed:91-110km/h

Fuel:Diesel

Steering Position:LHD

Size:Midibus

Dimension:7288*2240*2780/2990

Engine:Faw Brand Engine 4dx23-120e3f (Euro III)

Displacement:3875 Ml

Max. Power (HP/Rpm):120/2800

Max. Torque (N-M/Rpm):343/1600

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:SLCM

Packing:40hq Container

Origin:Jiangsu

Production Capacity:300units Per Month

Product Description

Cost-effective feature with 30 seats,Euro3 120hp diesel engine,practical and good price.Favored by Africa,South-America.Fast maunfature,good package and timely delivery .

Spec

DIMENSIONS & WEIGHTS
Overall dimension (mm)		Length	7288
		Width	2240
		Height	2780/2990
Wheelbase (mm)			3300
Thread (mm)		Front/rear	1830/1600
Curb vehicle weight (kg)			4450
Gross vehicle weight (kg)			7100
Seating capacity (persons)			27 (double doors)/31 (single front)/30 (single middle)
ENGINE
Model			FAW brand engine 4DX23-120E3F (Euro III)
Type			4-cylinder, in line, water-cooled, direct injection, diesel, turbocharged, inter-cooling
Displacement (cc)			3857
Max. Power (hp/rpm)			120/2800
Max. Torque (N-m/rpm)			343/1600
Fuel tank (liter)			90
DRIVE TRAIN
Clutch			Hydraulic, Single plate, dry type diaphragm spring
Gearbox			5 speed manual
Max. gradeability (%)			30
CHASSIS
Frame			Ladder shaped, '] ' section
Suspension, front/rear			Leaf springs 3/4
Shock absorber, front/rear			Double action shock absorbers
Steering			Recirculating-ball
Brake	Type		Air brake
	Front/rear		Drums
Power steering			With
Tires			7.50-16
FOB SHANGHAI
