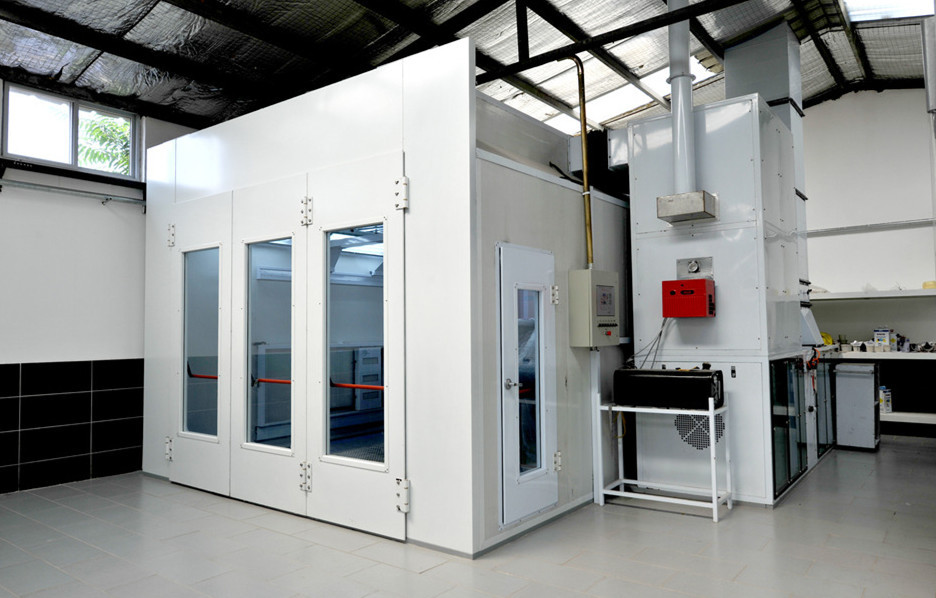

Hot Sale Paint Equipment Spray Booth with CE

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 6500/ Piece

Price:US $6500.0 / Piece

Trade Terms: FOB, CFR, CIF, CIP, CPT

Payment Terms: T/T

Price Valid Time:From Jun 10, 2015 To Aug 22, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:UNZJ-A

Type:Powder Coating Booth

Certification:CE

Substrate:Steel

Brand:Unzj

Coating:Powder Coating

Airflow Direction:Fully Undershot-type

Heating Mode:Electric

Paint Mist Treatment:Dry-type

Condition:New

Color:Blue, Orange, White, So on

Size:Due to Order

Company Type:Manufacturer

Power:1.5kw

Export Markets:Global

Additional Info.

Trademark:UNZJ

Packing:Consist with International Shipping Packaging

Standard:CE

Origin:Qingdao, China

HS Code:8417809090

Production Capacity:2000/Year

Product Description

Baking Room configuration table voltage380 triphase50HZ
Name	Unit	Standard	Demand
outside dimensions	mm	7050x5250x3300mm
inside dimensions	mm	6900x3900x2600mm
Note:There are differences between the outside dimensions and inside dimensions,The internal size shall prevail.
front door size	1piece	3000x2700mm	Three fold, with glass observation window, with explosion-proof door lock. All round aluminum alloy covered edge.
side door size	2piece	800x2000mm	With glass observation window, with explosion-proof doorknob. Aluminum alloy covered edge.
EPSinsulation board	110	thickness75mm	EPS flame retardant insulation board, plate single-layer thickness of 0.4 mm, foam density of 10 kg/m3.
Static pressure layer at the top of the scaffold			electrogalvanizing
Static pressure layer filter cotton net			spraying plastics,white
bottom bracket	1set	10#u-bar	Channel steel stents, six columns and longitudinal support, four column horizontal support, height is 300 mm
baseplate(galvanize)	30	steel grating4mm	adopt standard of 30�4mm,30�3mm,lane load-bearing is 4T
pressure fan(centrifugal)	2sets	4KW(380V/50Hz,triphase)	blast capacity:blowing-in 25000M3/H,centrifugal fan.
induced draft fan(centrifugal)	1set	5.5KW(380V/50Hz,triphase)	blast capacity:blowing-in 15000M3/H,centrifugal fan.
burner	1set	RIELLO G10	RIELLO 40Gseries,with heating systerm.
heating power exchanger	1set		1.0mmmake of stainless steel, diameter of chimney 150mm.
heat tank	1set		1.0make of color plate(white)
toplight	8groups	Each group of four light tubes, each 40 w	Embedded with transparent glass (easy disassembly type);Foshan integration tubes
Waist light	8groups	Each group of one light tubes, each 40 w	Embedded with transparent glass (easy disassembly type);Foshan integration tubes
power-driven ventilation door	1set
electric cabinet	1set	380V/50Hz,triphase electric	Internal delixi electric components, the electric leakage protection device
Filter Cotton	1set	Three-dimensional spray adhesive top cotton G600,bottom cotton, cotton tuyere
boarding platform	A pair	1800(lenght)x1000(width)mm	3mm checkered plate,White high temperature coating
Note:The English instruction, as well as the equipment installation CD

Details
(1) Outer dimensions of the booth(MM) :7000 � 5500 � 3250
(2)Inner dimensions of the booth(MM): 6900 � 3900� 2650
(3)Entrance door " s width(MM) :2950
(4)Entrance door " s height(MM): 2500
(5)Air intake blower " s air volume(m3/h) :25000
(6)Full load indoors air speed(m/s) :0.3
(7)Ventilation times indoors(times/hour) :290
(8)The highest working temperature( �C ) :80
(9)Heating time min(20-60 �C ): 4-5
(10) Burner " s max. thermal power(kal/h): 260000
(11) Burner " s oil consumption (L/h) :? 18
(12) Heat exchange rate: 98%
(13)Illuminance(Lux): ? 600

Main features:

1. Wallboard: Sandwich style EPS (epispastics polystyrene) 75mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.

2. Door: 4 PCS of front doors with special rigid frame. Size: 4000(w) x 4800(h). 2 PCS of emergency doors.

3. Air Intake System (3sets): Each set consists of 2x4kw intake fan. Total 6 units of 4kw intake fan. BELIMO 20N electric damper.

4. Air Exhaust System (3sets): Each set consists of 1x5.5kw exhaust fan. Total 3 units of 5.5kw exhaust fan. Multi-layer fiberglass filter. Exhaust air from basement or two sides of wallboard.

5. Heating System (3sets): Each set consists of 1 unit Italy Riello G20 diesel burner, 200000Kcal/h. Total 3 units of burners, 600000Kcal/h. The heat exchanger is made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency.

6. Lighting System: Ceiling light has 16 units x 4 PCS of 40W lamps. Side light has 22 units x 2 PCS of 40W lamps. Total 108 PCS of 40W lamps. 900 Lux.

7. Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10? M. Ceiling filter capture granules bigger than 5? M. The air cleanliness in the working environment can reaches 98%.

Introduction of QINGDAO UNZJ :
QINGDAO UNZJ SPRAY EQUIPMENT CO.,LTD,which specilize in the design, manufacture and sale for auto spray/backing booth,industry painting equipment, high temperature drying plant, has sucessfully exported our products to Europe, Africa, America ect. and get a positive feedback. We own the factory in
Shandong of China, all the customers are welcomed to visit our factory. The competitive price and high quality of our products can be very helpful to your business.
QINGDAO UNZJ, the leader manufacturer of spray booth in China! ! !
