Hot Sale Foton 4X2 15000liter Fuel Tank Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

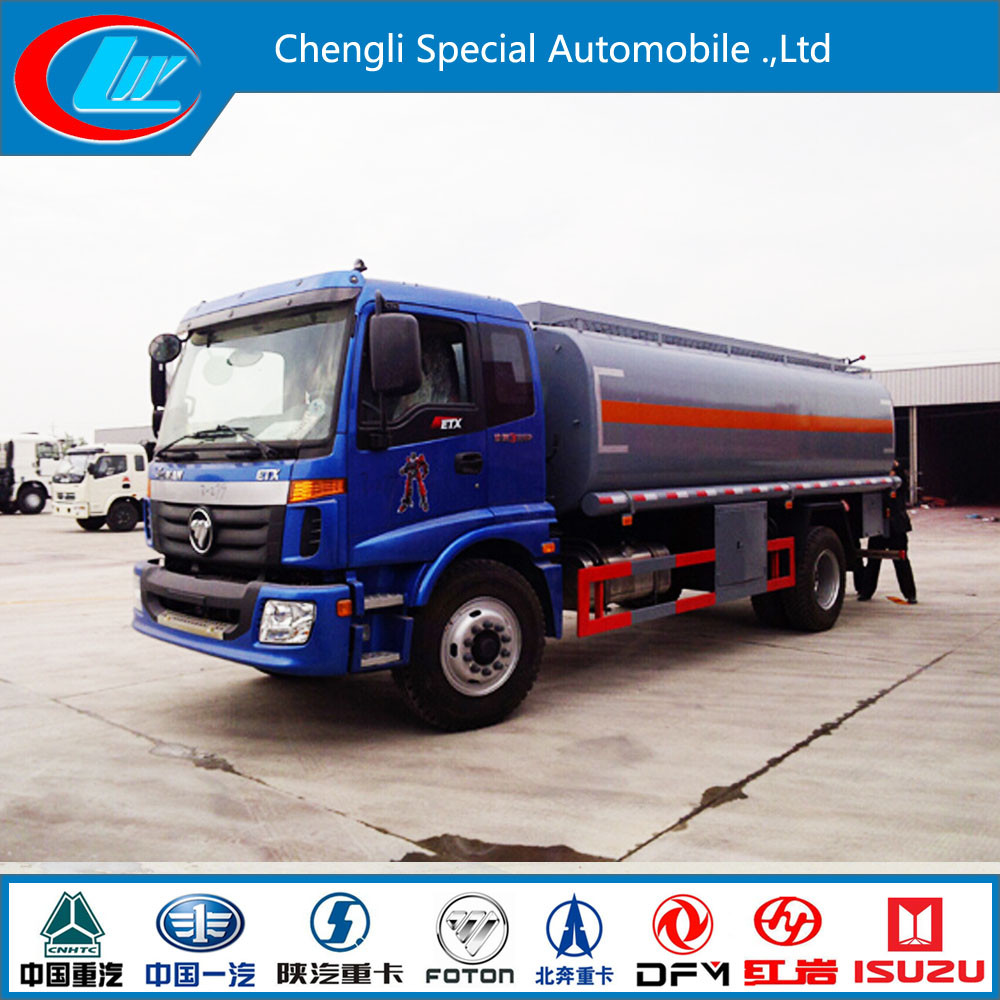

Hot Sale Foton 4X2 15000liter Fuel Tank Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 24000.0-26000.0/ Piece

Price:$24000.0 - $26000.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Jul 03, 2015 To Jul 14, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW5163

Transmission Type:Manual

Power:Diesel

Load Capacity:1-10t

Emission Standard:Euro 3

Tank Volume:10001-15000L

Drive Wheel:4�2

Seats:?5

Horsepower:150-250hp

Engine Capacity:6-8L

Storage:Oil

Tire Type:Inner Tube

Tire Certification:ECE, GCC, ISO, DOT

Tire Design:Radial

Condition:New

Material:Carton Steel Q235

Exhaust/Power(Kw):170HP

Type:Fuel Tank Fuel Tank Truck Fuel Tank Trailer

Engine Model:Foton

Wheel:6wheels

Capacity:15000L

Driving Model:4X2

Chassis Model:Bj5163

Warranty:One Year for Three Parts (Engine, Gearbox, Axle)

Package:Bulk, RO-RO, Container, Naked for Fuel Tank Truck

Export Markets:Global

Additional Info.

Trademark:CLW

Packing:RO-RO Bulk Naked Container

Standard:ECE ISO GCC CCC ASME ASTM

Origin:Hubei China

HS Code:8701909000

Production Capacity:100000PCS/Year

Product Description

HOT SALE FOTON 4X2 15000LITER FUEL TANK TRUCK

SPECIFICATION:
CHASIS
1.Description:FOTON 15000LITER 4X2 Fuel tank Truck
2.Drive Model:4X2
3.Chassis:BJ5163
4.Dimensions(L x W x H)mm:8500*2480*3100
5.Wheel base (mm):3220
6.Overhang (front/rear) (mm):1365/2435
7.Wheel track (front/rear) (mm):1960/1847
8.Approach/Departure angle(�):16/12
9.Curb Weight:6265kg
10:GVW.:16000kg
11.Max. driving speed(km/h):80

ENGINE
12.Engine Model:ISB170
13.Type:4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
14. Horse Power(HP):170
15.Emission standard:Euro III
16.Gearbox:6forwards & 1 reverse
17.Clutch:Reinforced diaphragm clutch
18.Tire:10.00-20. 6 pcs+1 spare tire

UPPER
19.Fact cubage:15000liter
20.Tank material:Q235 carbon steel
21.Tank thickness:6mm
22.Body Internal Dimension:5800*2250*1560mm

EQUIPMENT
(1)Equipped with CLW pump .valves and pipes,a set of Fuel Dispenser
(2)Equipped  with a ladder on tank
(3)It can be design to have several compartments According to your requirements
(4)Equipped with speed limiter.The speed limit of 80 km/h

If you are interested in this model, pls feel free to send inquiry, and we will always be glad to quote.
Contact with me!

Sale Manager: Albert Du
Mobile:0086-18660874450
0086-13872880263
Tel/Fax : 00862783796298


COMPANY INFORMATION
ClW Heavy Industry Co., Ltd
which was appointed by the Development and Reform Committee of China.Chengli is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
� Established from 2004.
� 12 independents workshops.
� 1000 sets of equipment, 25 assemble lines.
� 300 senior engineers and technicians. About 2000 to 3000 workers
� 380kinds of trucks and semi-trailers.
� 20 years wholesale experience
� Turnover 250 million and Export 20million annually
� Turnover 2 billion trucks and semi-trailers annually.
� Truck Sold to 80 countries
� Cooperates with DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC

ADVANTAGES
1. We have own factory located in Suizhou---the special truck town of China. we can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitive price.
2. We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.
3.  There is a strong professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers

OUR PPRODUCTS
1.LPG Tank /Skid LPG Tank /LPG Tank Truck /LPG Tank Trailer/LPG accessory
2.Fuel Tank/Fuel Tank Truck/Fuel Tank Trailer
3.Water Tank/Water Tank Truck / Water Sprinkler Truck/Water Wagon/Milk Truck
4.Van truck/Refrigerator truck/Explosion Proof truck
5.High-altitude Truck/Truck with crane
6.Chemical Liquid Truck
7.Bulk cement truck/Cement Powder Tank truck
8.Concrete Mixer Truck
9.Tractor
10.Fire fighting truck/ Fire Truck / Fire Vehicle
11.Dumper/Tipper Truck/Side Tipper/End Tipper
12.Wrecker
13.Flat transport truck
14.Sweeper truck
15.High pressure cleaning truck
16.Liquefied Gas Transport Truck
17.Pressure Vessel
18.Fecal suction truck / Sewage suction truck
19.Self-loading garbage compactor truck
20.Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as strict quality control system can ensure all the tank from us run very well with 10-20 years use life.

FAQ
1.Our price term: FOB Shanghai as common, other port is also acceptable.
2. Our Payment term: T/T, 30% deposit after order confirmation, 70% balance should be paid before delivery.
3. Delivery time: the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current production condition.
Packaging and shipping
1, Packaging: nude or waxing;
2. Shipping: RoRo ship or bulk ship according to the customer' order or requirement

The technical parameter of FOTON 4x2 fuel tanker 13000litre

Description	FOTON 4X2 FUEL TANK TRUCK
Drive Model	4X2
Chassis	BJ5163
Vehicle Main Dimensions	Dimensions(L x W x H)mm	850024803100
	Wheel base (mm)	3220
	Overhang (front/rear) (mm)	1365/2435
	Wheel track (front/rear) (mm)	1960/1847
	Approach/Departure angle(�)	16/12
Weight in KGS	GVW.	16000
	Curb Weight	6265
Max. driving speed(km/h)		80
Engine	Model	ISB170 40
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	170HP
	Emission standard	Euro IV
Gearbox	6 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	150
Tire	10.00-20 18PR, 6 pieces+1 spare tire
Brakes	dual circuit compressed air brake
TANK
Material	6mm carbon steel Q235 Aluminum Alloy/Stainless steel can be chosen
Tank Dimensions	Length:5800mm long axis:2250mm minor axis:1560mm
Tank Volume	15CBM
Standard Equipment	gravity valve,tool box,fuel pipes ,climb ladder,man hole
Rrmarks	1> With multiple baffle plates in the tank, the tank has the advantages of high intensity, stability, transporting safety etc. 2> Oil pump is installed to suck or discharge oil, with high suction pressure and speed. 3> According to users' needs, the tank can be designed as a single compartment or several compartments to contain different oils. 4> According to users' needs, the side or the rear of the tank can be installed 1 to 3 self-flowing valves. 5> According to users' needs,the tank panting color can be customized.
