Hot Sale! 4X2 FAW 10 Tons Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 16500.0-25900.0/ Piece

Price:$16500.0 - $25900.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C

Price Valid Time:From Jan 19, 2015 To Feb 29, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CA3120

Transmission Type:Manual

Power:Diesel

Load Capacity:1-10t

Emission Standard:Euro 2

Drive Wheel:4×2

Engine Capacity:?4L

Seats:?5

Horsepower:150-250hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Truck Type:Dump Truck

Type:Tipper Truck

Brand:Faw

Driving:4X2

Steering:LHD/ Rhd

Colour:White, Red, Yellow

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:FAW

Packing:Nude Packing

Standard:ISO

Origin:China

HS Code:87042300

Production Capacity:30 PCS/ Month

Product Description

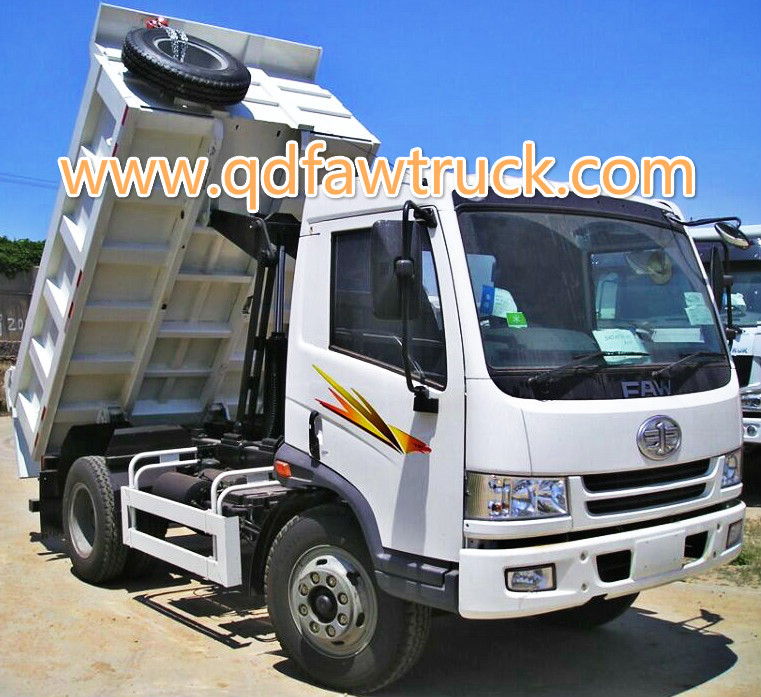

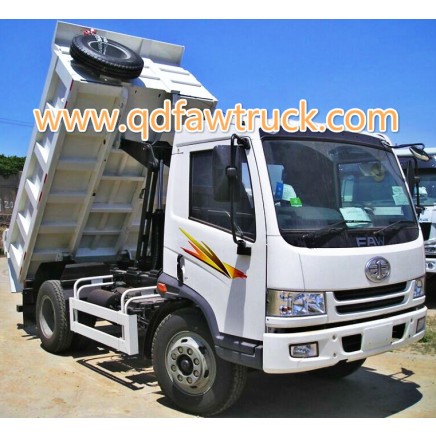

Hot sale! 4x2 FAW 10 tons dump truck
1.Wheelbase 3750mm
2.Engine power 170hp
3.6 speed transmission
4.Tipper body 4000x2300x800mm
Product Description
Used for transport waste garbage, sands
Packaging & Shipping
nude packing
Our Services
Original spare parts, tech supporting
Company Information

Advanced technology, Excellent quality control
FAQ
FOB, CIF, DAF

Truck model				CA3120PK2Y
Drive wheel				4x2
Actual Loading capacity, tons				10
Engine	Model			FAW CA6110/125Z1A2
	Maximum output			170HP
	Emission standard			Euro II
	Number of cylinder			6-cylinder in-line with water cooling, turbo-charging and intercooling
Transmission				CA6TB085M
Clutch				380mm
Front Axle				8E
Rear Axle				Impulse Welding type 435 (rate:5.571)
Chassis		Frame		237757 mm
		Front suspension		7
		Fuel tank		200L
Steering				American TRW tech
Brakes				Drum
Wheel Base(mm)				3750
Wheels&Tires				Radial 10.00R2016, DOUBLE COIN brand
Driver's cabin			Model, description	J5k,RHD,AC
			Sleeper	1
Electrics			Operating voltage	24v
			Starter	China brand
			Alternator	24v
Overall Dimensions			Overall Length	6698mm
			Overall Width	2496mm
			Overall Heigth	3280mm
Weigth			GVW	20000kg
			Front axle capacity	6500kg
			Rear axle capacity	13500kg
Performance			Maximum speed	85 km/h
Cargo Body Dimensions			LxWxH, mm	4000x2300x800
			Thickness of plate	bottom 4mm, side 3mm
Lifting Type			Middle lifting Ø160 mm Hydraulic cylinder

What's the brand of your truck?

A: Our brand is FAW, First Automobile Works is the biggest truck manufacture in China, our products cover all series such as tractor truck, tipper truck, cargo truck, and other special trucks.

Q: How can we trust your company?

A: We are the official authority company by FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us. We are your reliable partner.

Q: Can u provide the ISO9001 certificate or some others related?

A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.

Q: How about warranty item?

A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.

Product Description
FAW 120HP, 140HP, 3-7T, Dump truck, tipper truck

Packaging & Shipping
Packing usually in nude, shipping by RORO or bulk carrier ship, also we can do CKD or SKD

Our Services
Warranty, technical training, spare parts surpplying, Phone or mail support

Company Information
The first automobile anufacturer, has a history more than 45years, business expanded to Asia, Africa, south America and all over the world, More than 10000 units producing capacity, ISO 9001, TS16949, ISO14001, OHSMS18001 certificate

FAQ
FOB or CIF terms, T/T or L/C, small order is accepted
