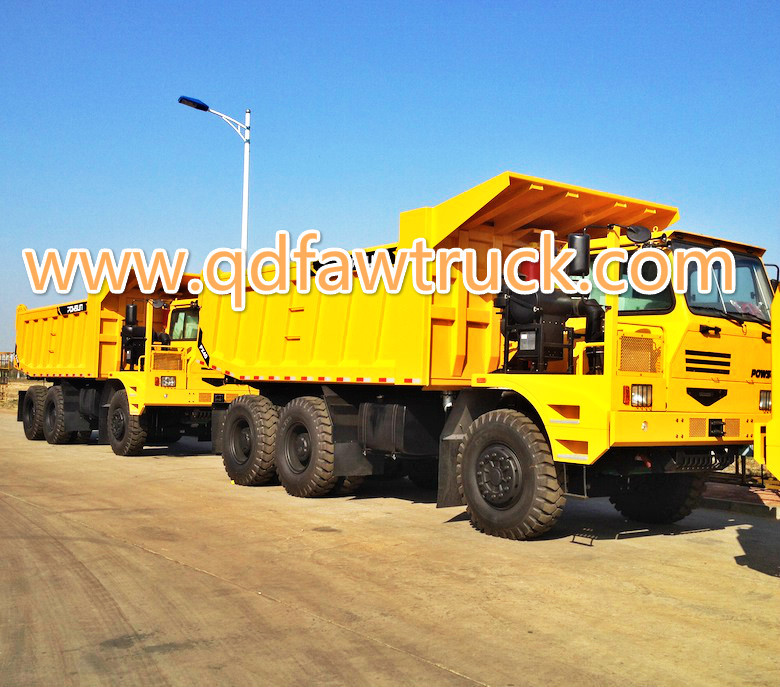

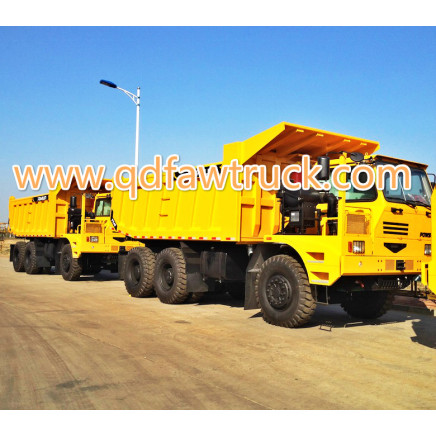

Hot Sale! 40- 50 Tons Powsun Mining Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 83000.0-165000.0/ Piece

Price:$83000.0 - $165000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Nov 11, 2014 To Feb 29, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CA3606P7K2T1A

Transmission Type:Manual

Power:Diesel

Load Capacity:41-50t

Emission Standard:Euro 2

Drive Wheel:6×4

Engine Capacity:?8L

Seats:?5

Horsepower:351-450hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Truck Type:Dump Truck

Type:Mining Truck

Brand:Faw Powsun

Capacity:40-50 Tons

Lifting Type:Front

Driving Type:6X4

Cabin:Single Seat

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:FAW

Packing:Nude Packing

Standard:CCC

Origin:China

HS Code:8705109100

Production Capacity:100PCS/Month

Product Description

Hot sale! 40- 50 tons POWSUN Mining Dump Truck
Traction type: 6X4
Driving type: LHD (RHD is option)
Cabin: Konv cab(Air conditioning).

Engine
Engine brand: WEICHAI, YUCHAI/ XICHAI CA6DM2.
Engine model: 375/ 390/ 420/ 460HP Euro II, CA6DM2 420HP EURO II
Engine type: 6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection.
Displacement: 9.726 liters.
Max. Output: 375/390/420/460HP
Max torque: 2250NM
Specific fuel consumption: 192g/Kwh

Gear box
Gear box: FULLER 12JS250

Clutch: GF430J spiral spring
Steering: ZF 8098, hydraulic steering with power assistance.

Tyre
Tyre: 14.00-24/ 15.00-25
No. Of tyre: 10+1spare

Front axle: Strengthened wide welded box stiff front shaft
Rear axle: Strengthened wide steel two-grade reducing and double tires drive axle
Fuel tank capacity (L): 400
Max. Speed (km/h): 73
Kerb. Mass: 19500kg
Total mass: 80000kg
Wheel base (mm): 3800+1400
Front overhang (mm): 1500
Rear overhang (mm): 1000
Front track (mm): 2400
Rear track (mm): 2200
Approach angle: 29 degree
Departure angle: 34.5 degree

Hot sale! 40- 50 tons POWSUN Mining Dump Truck
Body:
Inner size(mm): 5600X2800X1550/ 5800X3000X1500
Thickness of body steel(mm): Floor12mm side & back 8 mm.
