Special navigation module for Pioneer |
|
|
|
|
Brand: LLT Model number:LLT-PR3110 |
Module number: |
|
|
|
|
Installation advantages |
|
|
1) Nondestructive installation design, which does not damage to wires of the original car; special interface cable, plug-up installation without wire cut;
2) Choose installation functions freely(Bluetooth optional);
3) Technology is reliable, take the original agreement;
4) After the upgrade, it still retains all the functions of the original host, even if navigation goes wrong, does not affect the function of the use of the original car;
5) After-sales service is convenient, replace the adapter module directly, compare with special machine, it's simple, less risk, safety and reliable
6) Choose beautiful interface by yourself;
7) Achieve handwritten navigation, and control the navigation by touching it. Compare with the original navigation module, it's more convenient and flexible. |
2) Choose installation functions freely(Bluetooth optional);
3) Technology is reliable, take the original agreement;
4) After the upgrade, it still retains all the functions of the original host, even if navigation goes wrong, does not affect the function of the use of the original car;
5) After-sales service is convenient, replace the adapter module directly, compare with special machine, it's simple, less risk, safety and reliable
6) Choose beautiful interface by yourself;
7) Achieve handwritten navigation, and control the navigation by touching it. Compare with the original navigation module, it's more convenient and flexible. |
|
3) It is equipped with highly reliable technology and complies with the original agreement; |
|
4) After the upgrade, it still retains all the functions of the original host, even if navigation goes wrong, does not affect the function of the use of the original car; |
|
5) After-sales service is convenient, replace the adapter module directly, compare with special machine, it's simple, less risk, safety and reliable |
|
6) Choose beautiful interface by yourself; |
|
7) Achieve handwritten navigation, and control the navigation by touching . Compare with the original navigation module, it's more convenient and flexible. |
|

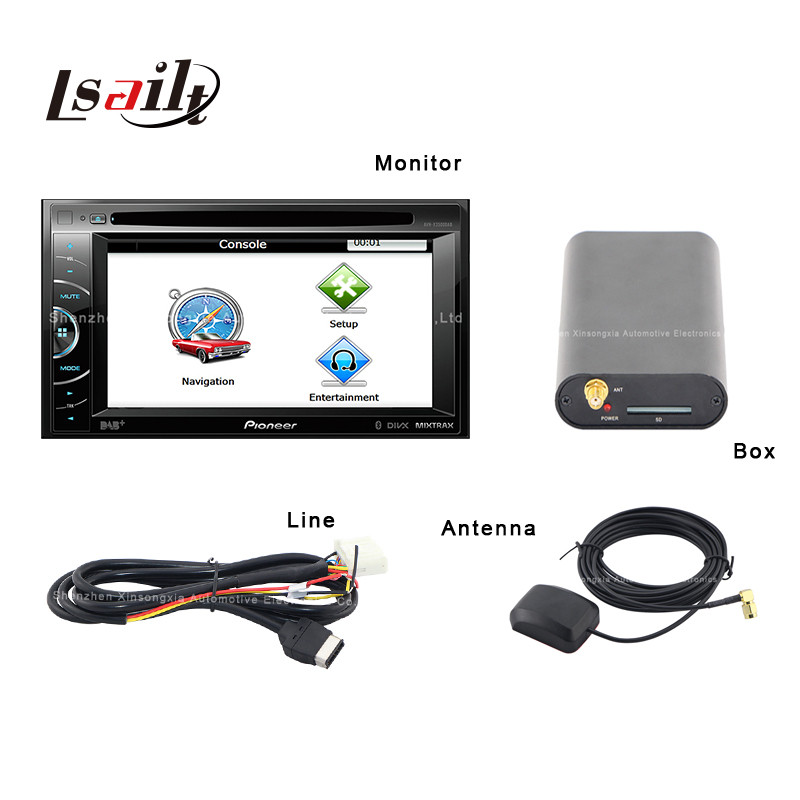

Product accessories |
|
|
|
Mainframe |
1(standard configuration) |
|
Dedicated wire |
1(standard configuration) |
|
Antenna |
1(standard configuration) |
|
Specification |
1(standard configuration) |
|
certification |
1(standard configuration) |
|
Warranty card |
1(standard configuration) |
|
Microphone |
1(optional configuration) |
|
speaker |
1(optional configuration) |
|
Map card |
1(optional configuration) |
|
Mute dedicated line |
1(optional configuration) |
|
|
|
|
Product parameters |
|
|
|
|
Frequency: |
664MHZ+336MHZ DSP/800MHZ |
|
Main chip model: |
Sirf Atlas V/MSB2531 |
|
Memory: |
128MB/256MB |
|
Storage space: |
128MB(can expand to 8GB) |
|
Navigation software storage: |
SD card |
|
Operating system: |
WINCE6.0 CORE |
|
Supported audio and video formats: |
MP3/PCM/WMA/ Mp4/mpeg/mpg/asf/wmv/mov etc. |
|
Support video type: |
Mp4/mpeg/mpg/asf/wmv/mov etc. |
|
Video output format: |
Composite Video ( CVBS, Y/C, YPbPr ) / Analog RGB |
|
Video output voltage: |
1.0Vpp/75? |
|
Resolution: |
480X234(selection by resistor) |
|
Sound output: |
Dual channel CD stereo sound |
|
Operating temperature: |
40 � C to +85蚓 |
|
Storage temperature: |
40 � C to +100蚓 |
|
Operating voltage: |
DC 9-16V |
|
Tracking sensitivity: |
161dBm |
|
Positioning accuracy: |
10m, 2D RMS , 5m, 2D RMS, WAAS enable |
|
GPS Antenna type: |
External active ceramic antenna |
|
|
|
|
For models:IVA-W200E/201E/202E/502E/520C/530E/X8etc. all machine with NAVI interface . ( 480X234 ) |
|
|
|
|
Statement: All brands on this website are belong to original company, if do not want to use this website, please note in time and delete. |
