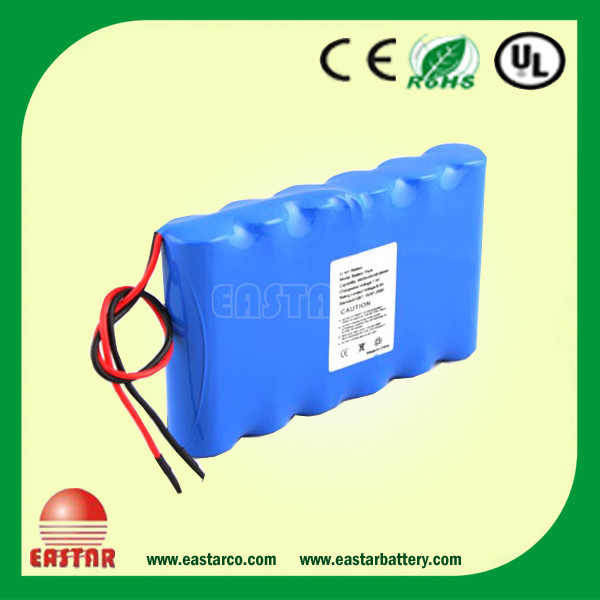

Hot Li-ion Icr18650 Lithium Battery Pack, 3.7V 2200mAh Rechargeable Battery

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
500.0	US $ 1.3/ Piece

Price:US $1.3 / Piece

Trade Terms: FOB, CFR, CIF, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal

Price Valid Time:From Aug 21, 2014 To Nov 11, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ICR18650

Type:Lithium Battery

Charger Type:Electric Charger

Nominal Voltage:3.7V

Size:18650, 18.2*64.7mm

Place of Origin:Guangdong China (Mainland)

Brand Name:Eastar

Model Number:Icr18650

Nominal Capacity:2200mAh

Weight:47 G

Color:Blue

OEM:Yes

Life Cycle:More Than 800 Times

Continuous Discharge Current:1c

Burst Discharge Current:3c

Export Markets:Global

Additional Info.

Trademark:Eastar Battery

Packing:We Can Do Packing as Customer Requirements

Standard:with CE&ROHS certification, OEM/ODM

Origin:Guangdong China (Mainland)

Production Capacity:100000 Piece/Pieces Per Month

Product Description

Packaging & Delivery

Packaging Detail: Bulk carton
Delivery Detail: 15 to 35 days

Specifications
Li ion icr18650 lithium battery pack
Cell brand: EASTAR
Cell spec.: 3.7V 2200mAh
Enviroment friendly
CE, RoHS, UL

Main features:
1. High operation voltage, Li-ion batteries produce 3.7 volts.
2. High energy density.
3. Long cycle life
4. Minimal self-discharge, less than 10% monthly.
5. Wide temperature range, operation from: -20° C~+60° C
6. Be charged & discharged at anytime because of non-memory.
7. Environmentally compatible.
8. High level of safety, vision Lithium ion batteries catch no fire and cause no explosion in breaking experiment, with acupuncture, smash, drop, and so on.

Product Application:
GPS Tracker, LED, medical devices, kinds of meters, portable instruments, PDA, Power tools, miner's lamp, Audio and Video Devices, Information Devices etc.

Warnings:
Do not soak the battery cells in water. The storage place should be dry and cool.
Do not use and/or put the battery cells by heat source such as fireplace or electric heater. Use thespecified charger when recharging.
Do not confuse the positive and negative polarities of battery cells. Do not directly plug the batterycell into electric outlet.
Do not burn the cells.
Do not short-circuit the battery terminals.
Do not transport or store the batteries with metal objects. Do not strike, trample or fracture the cells.
Do not directly solder the battery cell and pierce the cell with sharp objects.

Specification	li-ion battery
Type	Lithium-ion rechargeable cell
Model	ICR18650
Nominal voltage	3.7 V
Nominal capacity	2200mAh
	discharge from 4.2V to 3.0V at 0.2C mA
Minimal capacity	2100mAh
Max charge current	2200mA 1C
Charging method	charge with constant current 1C to 4.2V, then charge with constant voltage 4.2V till charge current is less than 0.01C
Discharge cut-off voltage	3.0 V, the over-discharge detection voltage of PCM
Operating environment	Charging, 0°C ~ 45°C ; 65ą20%RH
Operating environment	Discharging, -20°C~60°C ; 65ą20%RH
Storage environment	-20°C~45°C 65ą20%RH
Storage environment	storage for a long time(>3 months) and the storage condition shall be:<35°C;65ą20%RH;3.7~3.9V
Cell Weight (Approx)	47g
Cell Dimension (Max)	according to customer demand
