Hot! HD Special GPS Navigation Box for Kenwood

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB

Payment Terms:T/T

Trademark:LLT

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LLT-KW3001

Type:GPS Tracker

Use:Automotive

Operating Principle:Mixed Type

Port Number:Multiplex Multi-purpose Channel

Model:Integration Type

Screen Size:4.3"

Carrier Frequency:Dual-Frequency

Chip:SiRF

Brand:Llt

Certification:ISO/TS16949

Frequency:664MHz+336MHz DSP/800MHz

Main Chip Model:Sirf Atlas V/Msb2531

Memory:128MB/256MB

Storage Space:128MB(Can Expand to 8GB)

Navigation Software Storage:SD Card

Operating System:Wince6.0 Core

Supported Audio and Video Formats:MP3/PCM/WMA/ MP4/MPEG/Mpg/Asf/WMV/MOV etc.

Support Video Type:MP4/MPEG/Mpg/Asf/WMV/MOV etc.

Video Output Format:Composite Video(Cvbs,Y/C,YPbPr)/ Analog RGB

Export Markets:Global

Additional Info.

Trademark:LLT

Packing:Cartons

Standard:CE, SGS

Origin:Shen Zhen, Guang Dong

Production Capacity:30000/Year

Product Description

Special navigation module for Kenwood

Brand: LLT Module number: LLT-KW3000

Installation advantages

1) Nondestructive installation design, which does not damage to the wires of original car; Special interface cable, plug-up installation without wire cut;
2) Choose installation functions freely(Bluetooth optional);
3) Technology is reliable, take the original agreement;
4) After the upgrade, it still retains all the functions of the original host, even if navigation goes wrong, does not affect the function of the use of the original car;
5) After-sales service is convenient, replace the adapter module directly, compare with special machine, it's simple, less risk, safety and reliable
6) Choose beautiful interface by yourself;
7) Achieve handwritten navigation, and control the navigation by touching it. Compare with the original navigation module, it's more convenient and flexible.

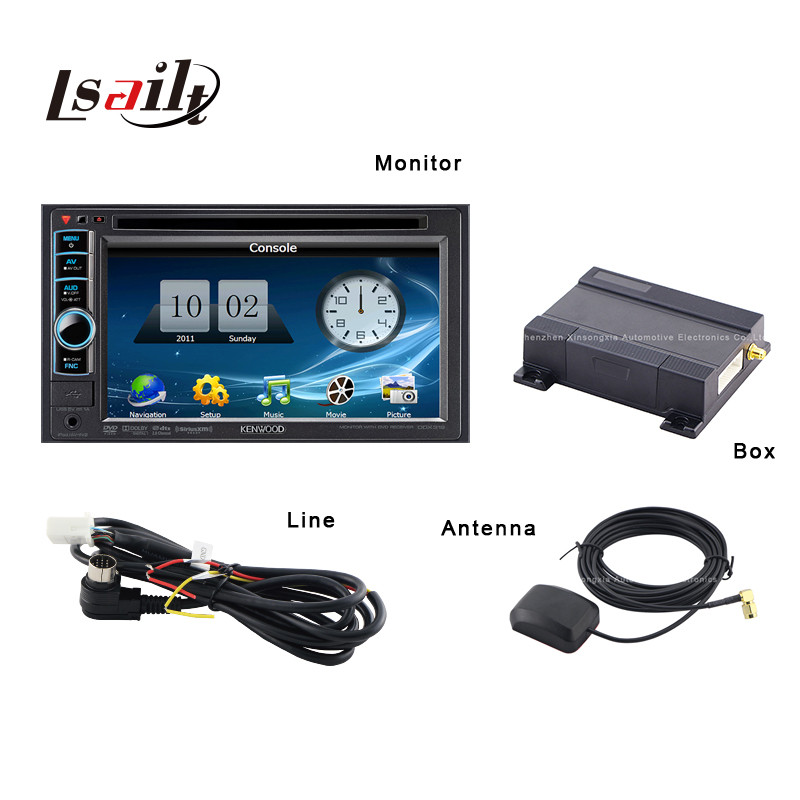

Product accessories

Mainframe	1(standard configuration)
Dedicated wire	1(standard configuration)
Antenna	1(standard configuration)
Specification	1(standard configuration)
certification	1(standard configuration)
Warranty card	1(standard configuration)
Microphone	1(optional configuration)
Speaker	1(optional configuration)
Map card	1(optional configuration)
Mute dedicated line	1(optional configuration)

Product parameters

Frequency:	664MHZ+336MHZ DSP/800MHZ
Main chip model:	Sirf Atlas V/MSB2531
Memory:	128MB/256MB
Storage space:	128MB(can expand to 8GB)
Navigation software storage:	SD card
Operating system:	WINCE6.0 CORE
Supported audio and video formats:	MP3/PCM/WMA/ Mp4/mpeg/mpg/asf/wmv/mov etc.
Support video type:	Mp4/mpeg/mpg/asf/wmv/mov etc.
Video output format:	Composite Video ( CVBS , Y/C , YPbPr ) / Analog RGB
Video output voltage:	1.0Vpp/75?
Resolution:	480X234(selection by resistor)
Sound output:	Dual channel CD stereo sound
Operating temperature:	~ 40 蚓 to +85 蚓
Storage temperature:	~ 40 蚓 to +100 蚓
Operating voltage:	DC 9-16V
Tracking sensitivity:	~ 161dBm
Positioning accuracy:	10m, 2D RMS , 5m, 2D RMS, WAAS enable
GPS Antenna type:	External active ceramic antenna

For models:DDX-6039/7065/5032/8034etc. all machine with NAVI interface . ( 480X234 )
