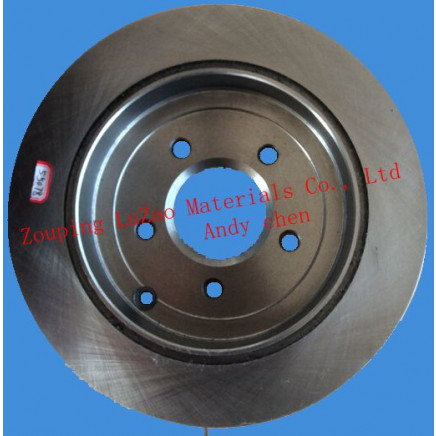

Hot! Best Selling! Braking, Brake Disc for Auto Brake System.

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$8.0 - $40.0 / Piece

Min. Order (Pieces)	Unit Price
100.0	US $ 8/ Piece
200.0	US $ 40/ Piece

Trade Terms: FOB

Payment Terms: T/T

Price Valid Time:From Jul 14, 2015 To Oct 14, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:55078/18060646

Type:Brake Discs

Material:Iron

Position:Rear

Certification:ISO/TS16949

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Hardness:170~210

Size:290.3mm*46.2mm

Total Carbon:3.0%~3.3%

Silicon:1.9%~2.2%

Manganese:0.7%~1.2%

Phosphorus:0.12%Max

Sulfur:0.12%Max

Export Markets:Global

Additional Info.

Trademark:Luzao

Packing:Plastic Bag and Carton

Standard:ISO

Origin:Shandong China Mainland

HS Code:870830999

Production Capacity:300t/Month

Product Description

SPECIFICATION

1. High quality and competitive price
2. HT250, G3000
3. The professional production team

DETAILS:

OE No.: 18060646/ Aimco No.: 55078
Position: Rear Axle
Height: 46.2mm
Outer Diameter: 290.3mm
Centering Hole Dia: Mm
Pitch circle diameter: 114.3mm
Brake disc thickness: 11mm
Minimum thickness: 9mm
Number of holes: 5
Solid or vented: V
Packing: Neutral or Color, as customer's request
Delivery Detail: 20-30 days after order
Certificate: ISO9001
HS: 87083099
Brake disc Specifications:
1) Material: Gray iron HT250/G3000
2) Long service life & stable performance
3) 100% crucial dimension inspection and Balancing

Key Specifications
Item	Brake Disc, braking disc,brake rotor,auto car brake
OE No.	18060646
AIMCO NO.	55078
Position	Rear axle
Size	290.3*46.2mm
Height	46.2mm
Outer Diameter	290.3mm
Centering Hole Dia	mm
Pitch circle diameter	114.3mm
Brake disc thickness	11mm
Minimum thickness	9mm
Number of holes	5
Solid or vented	V
Hardness	170~210
Chemical composite	C:3.0-3.3% Si:1.9-2.2% Mn:0.7-1.2% P:<0.12% S<0.12%
Material	Gray iron HT250/G3000
Packing	Neutral package or color, as customer's request

Place of Origin	Zouping,Shandong,China Mainland
Payment terms	T/T or L/C
MOQ	100~300 PCS
Lead Time	20-30 days
Warranty	1~2years
Brand name	Luzao
Certificate	ISO 9001
HS Code	87083099
Export Markets	Global/Worldwide
