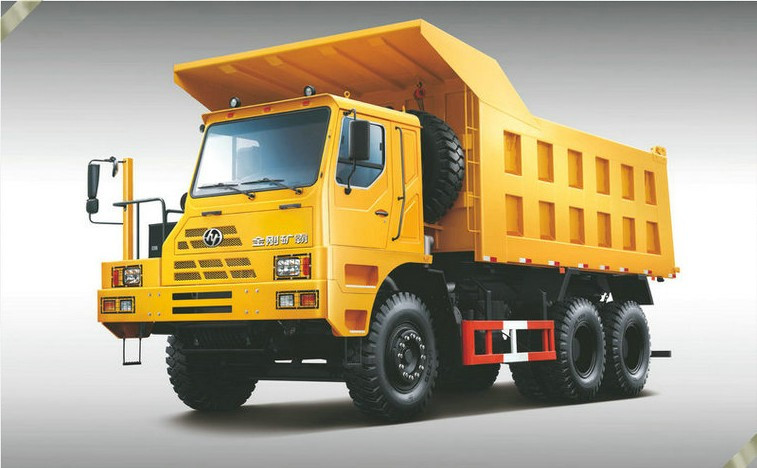

Hongyan Jingang 6X4 Mining Dump Truck (76Tons)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 60000.0-90000.0/ Piece

Price:$60000.0 - $90000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, D/P

Price Valid Time:From Apr 28, 2015 To Apr 27, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CQ5763PTG384

Transmission Type:Manual

Power:Diesel

Load Capacity:61-70t

Emission Standard:Euro 3

Drive Wheel:6ط4

Engine Capacity:?8L

Seats:?5

Horsepower:351-450hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Truck Type:Mining Dump Truck

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:Saic-Iveco Hongyan

Packing:Nude Packing

Standard:Euro3 Emission Standard

Origin:China

HS Code:87041090

Production Capacity:20000 Units/Year

Product Description

1. The design idea is advanced. Utilize advanced finite element analysis software, combine powerful technical strength of colleges and universities, adopt newly-designed large-section high-strength wide frame structure; The widening suspension is specially designed for the working condition of heavy duty to improve the stability of complete vehicle at running, turning, running on slope and unloading.

2. The performance-price ratio is high. Its purchasing price is 1/3 of the traditional mining vehicle with same tonnage; Its rated loading capacity is more than 2.5 times than that of three-shaft heavy-duty truck which is popular presently; Its unit loading capacity is 1.4 times than that of three-shaft heavy-duty truck.

3. The operating cost is low. The transmission system is equipped elaborately to ensure that within the economical range of speed and under same working condition, its oil consumption increases by about 50% when its rated loading capacity increases by 150%, compared with the three-shaft heavy duty truck.

4. The service life is long: The application of box-type welded girder, reinforced end plate and side plate compartment largely improves structural stability and impact resilience of girder and compartment. The service life is over two times longer than that of triaxial heavy-duty truck under same working condition.
Hongyan Jingang 6X4 Mining Dump Truck (76Tons)

Cab	Standard cab with AC, MP3
Drive:	6ط 4
Kerb Weightkg	22000
Gross Vehicle Weightkg	62000
Max Speed km/h	49( Note: it' s for professional mining use)
Gradeability%	35
Overall Dimensionmm	8730X3200X3585
Wheelbasemm	3600+1500
Engine	WD12.375/YC6M375-20
Engine OutputKW	276kw/375HP
Gearbox	9JS180
Clutch	DSP430
Approaching angle	30
Departure angle	45
Front Axle	13
Drive Axle	25
Tyre	14.00-24 24PR
