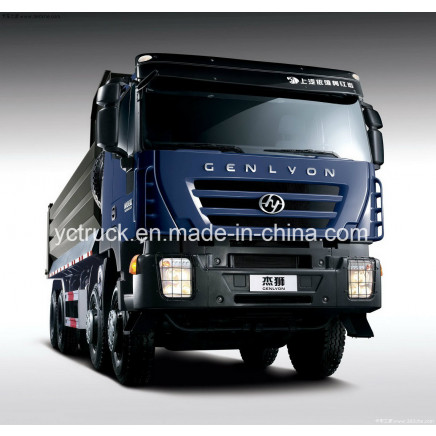

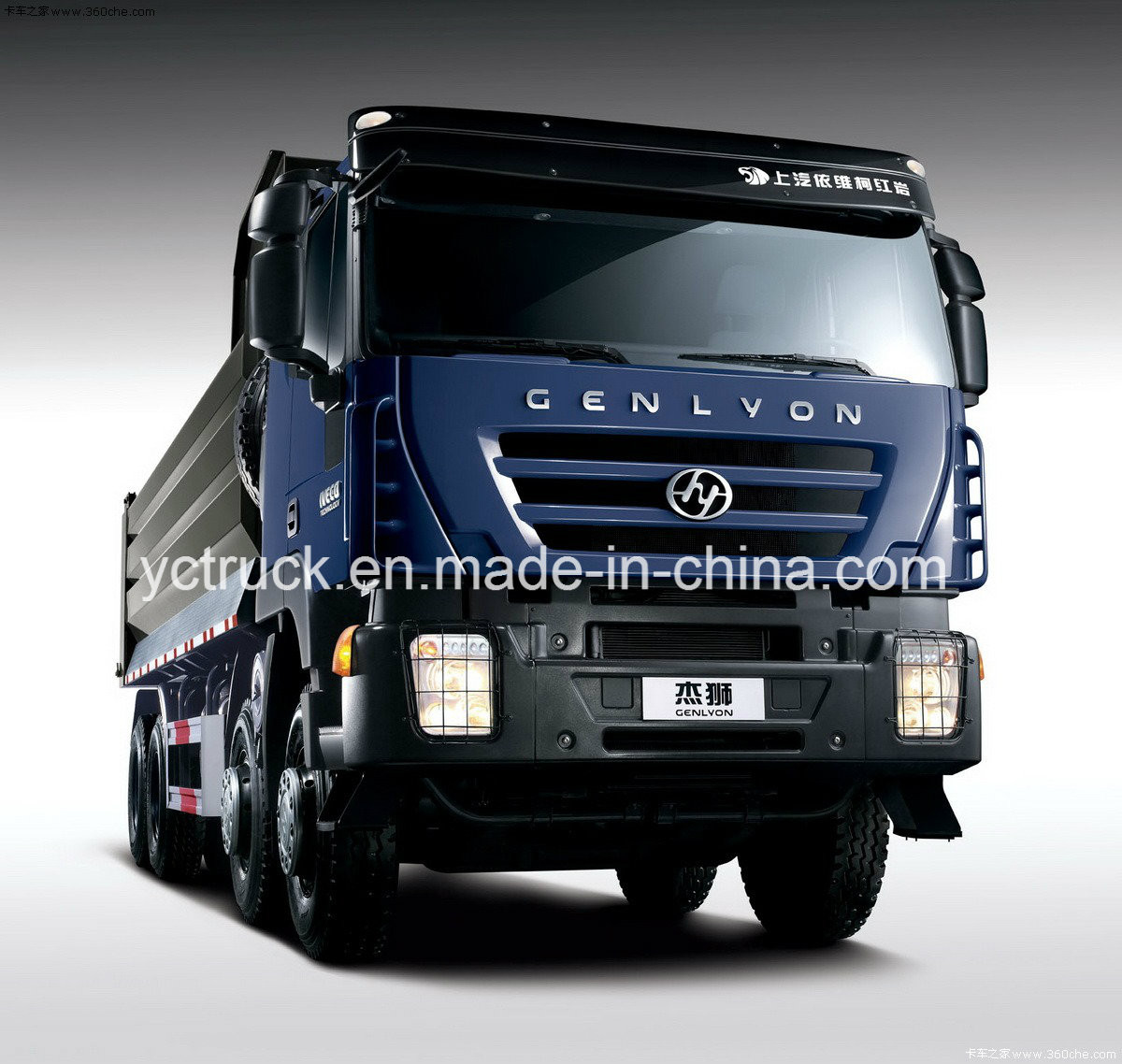

Hongyan Genlyon Diesel Tipping Vehicle

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 10000.0-30000.0/ Piece

Price:$10000.0 - $30000.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, Western Union, Money Gram

Price Valid Time:From Nov 27, 2014 To Nov 23, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CQ3254HTG384

Transmission Type:Manual

Power:Diesel

Load Capacity:41-50t

Emission Standard:Euro 3

Drive Wheel:6×4

Engine Capacity:?8L

Seats:?5

Horsepower:351-450hp

Tire Type:Inner Tube

Tire Certification:ECE, GCC, ISO, DOT

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Name:Iveco Genlyon Tipper Truck 6X4

Colour:Optional (White, Red, Black, Green, Blue, Yellow))

Rated Payload(Kg):12, 780

Gross Vehicle Weight(Kg):25, 000

Cabtype:Genlyon Flat-Roof Cab, Left-Hand Drive

Drive Axle:Double Reduction, Hongyan Cast Steel Drive Axle

Export Markets:Global

Additional Info.

Trademark:GENLYON

Packing:Nude Packing

Standard:SGS

Origin:China

HS Code:8704230090

Production Capacity:50000 Units/Year

Product Description

Saic-Iveco Hongyan Genlyon dump truck:
1. Adopt Italian advanced techonology;
2. Flexible sales system, competitive price;
3. Excellent quality, best after services and mature spare parts system.

If you are interested in this model, pls feel free to send inquiry, and we will always be glad to quote.

Shanghai YUECHENG AUTOMOBILE SALES Co., LIMITETD WAS ESTABLISHED IN 2011.

It is an authorized company of China National Heavy Duty Truck Group Co., Ltd. (hereafter as

SINOTRUK ) and also an Authorized company of SAIC-Iveco, And specializes in complete trucks,

MID trucks as well as light trucks together with all the original and good quality spare

Parts for SINOTRUK HOWO, HONGYAN GENLYON and other series trucks, We sell to various

Military transporting troops, oil and gas Transporting troops, coal transporting troops and

Engineering teams at home and abroad. Now our products have been Exported to Russia, the

Middle East, Africa, southeast Asia, South America and other countries and regions.

In the 21st century,

The Company will follow the step of SINOTRUK and SAIC-Iveco, go on developing complete trucks

And spare parts service in the concerned selling Area.

At home and abroad, we will provide the best and complete supply of SINOTRUK and SAIC-

Iveco Products for our customers,

To satisfy the demands of our customers and provide new and super service.

Need more informations, Please Contact Ms. Lynn. Ren(sales support)

TECHNICAL SPECIFICATION
PARAMETER	PARAMETER		NOTE
Type	Model	CQ3254HTG384	Yellow/Red/white
	Brand	IVECO Hongyan Genlyon C100
	Application	Dump truck
	Drive	6×4
Payload	Rated Payload(kg)	12,780
	Kerb Weight(kg)	12,090
	Gross Vehicle Weight(kg)	25,000
Cab	Type	Genlyon Flat-roof cab, Left-Hand drive
Cab	Equipment	with AC, One Sleeper
Dimension	Overall Dimension(mm)	8,475× 2,500× 3,510
Dimension	Wheelbase(mm)	3800+1400
Dump body	Dump Box Dimension(mm)	5,600×2,300×1,300
	Dump Box Volume (m3)	16.7m3
	Thickness of Track Bed	Bottom 8mm,side 6mm
	Lifting Cylinder	Mid lifting ?220
Engine	Model	C9 380
	Engine Output (kw(HP))	(280) 380HP
	Displacement(L)	8.709
	Emission STD	Euro 3
Transmission	Make	FAST
	Model	12JSD180T
	Control type	Manual
	Drive Axle	Double Reduction,Hongyan cast steel drive axle
Others	Frame	865/317 8+8
	Tyre	12.00R20
	Oil Tank(L)	400L
