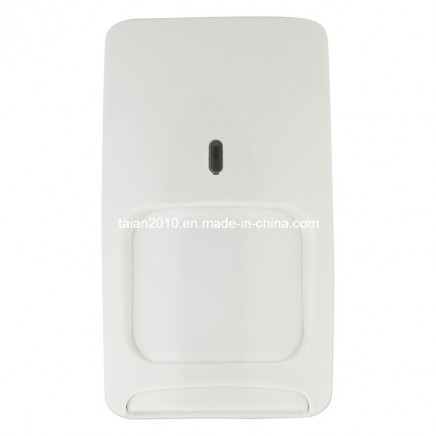

Honeywell Dual PIR & MW Intelligence Motion Detector for Alarm System (DT-7225/DT235T)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:50 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T, Paypal, Money Gram, Western Union

Trademark:Honeywell

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DT-7225/DT235T

Service:OEM & ODM

Sales Points:High Performance

W.T.:250g

Type:Sensor

Installation Mode:Wall Mounted

Application:Home, Industry

Usage:Anti-Theft, Anti-Theft~

Export Markets:Global

Additional Info.

Trademark:Honeywell

Packing:CTN

Standard:CEUL

Origin:China

HS Code:8531100000

Production Capacity:5000PCS/Week

Product Description

DT7225/7235T

Feature
Range: 35' x 40' (11 m x 12 m)
Alarm Relay: Energized Form A 500 mA, 30VDC
Tamper: (NC) 50 mA, 24VDC
Frequencies:24.125 GHz (K-Band)
PIR White Light Immunity: 6,500 lux typical
RFI Immunity: 30 V/m, 10 MHz 1000 MHz
Dimensions:4.685" x 2.795" x 1.654" (11.9 cm x 7.1 cm x 4.2 cm)
Sensitivity:2-4 steps within field of view
Fast and Simple Installation Without Adjustments
Superb Detection Through K-band Technology
Sturdy, Attractive Housing
Kband Microwave Technology
Uniform Sensitivity Optics

The Custom-designed Fresnel lens provides the same sensitivity for human targets at the edge of the pattern as exists directly in front of the sensor, giving the DT-7225 consistent coverage throughout the protected area.
Microwave Adaptive Threshold Using a patented microwave adaption circuit, the DT-7225 automatically adjusts its thresholds to account for room disturbances such as ceiling fans and other repetitive moving objects which are not an intrusion event. The result excellent false alarm immunity even in "active" rooms.
White Light Immunity A patented black bug guard reduces false alarms by providing 6, 500 lux of white light immunity. This helps reduce false alarm problems caused by lights, flashlights or reflective objects.
Microwave Supervision Independent circuitry supervises the microwave against failure. Effective in Hot or Cold Environments The DT7225 operates effectively in harsh environments (14° To 131C / -10° To 55C)
