Home Stair Disabled Lift for Elder Person (SJG)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 3000.0-7000.0/ Piece

Price:$3000.0 - $7000.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Apr 15, 2015 To Jul 15, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SJG

Application:Warehouse Crane, Building Crane

Lift Mechanism:Lift Chain

Carrying Capacity:Light Level

Moves:Stationary

Driven Type:Hydraulic

Running Mode:Stationary

Feature:Explosion-Proof

Certification:SGS, CE

Platform Size:1200*900mm

Load Capacity:250--350kg

Lifting Height:Max 6m

Speed:70mm/S

Drive:Hydraulic/Screw

Export Markets:Global

Additional Info.

Trademark:MORAL/OEM

Packing:Standard Export Packing

Standard:CE

Origin:Shandong. China

HS Code:842890

Production Capacity:5000PCS/Year

Product Description

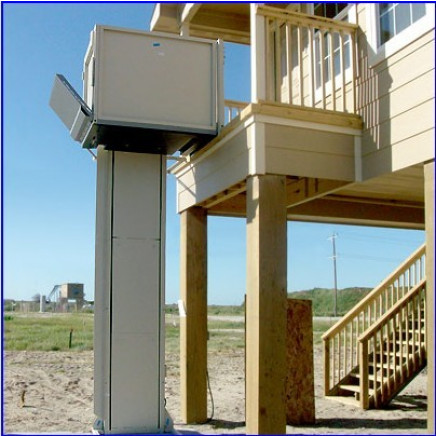

Home Stair Disabled Lift for Elder Person(SJG)

1. Vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.
2. It can be directly installed into the ground without architectural supporting pits and easy to operate.
3. Its hydraulic or screw system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.
4. Emergency Descending: When there is no power or malfunctions, manually descend the device
5. It's suitable for large-sized newly-built residential estates and those areas where there is compact land resource and etc.
6. This machine max. Lifting height is 6000mm

If you have difficulty using stairs, or use a wheelchair or mobility scooter, then a residential vertical lift is a great way to ensure that you can always safely and conveniently enter and exit your home. All of our porch lifts are designed to be completely resistant to the harshest weather conditions and are an affordable alternative to residential elevators.

Platform size	1200mm(L)* 900mm(W)/customize
Travel height	3000mm
Min Platform height	80mm
Entry&exit mode	90°or180°
Speed	70mm/s
Load capacity	300KG
Control voltage	24V/DC
Power Output	1.5KW
Power Input	220V/50HZ/25A (or customized for local power supply)
Drive System	Hydraulic
Control Mode	Inching Switch or Automatic
Drive Control	Self-resetting system
Overload	Protection Over current relay
Platform	Non-skid platform
Painting	Powder-coated finish/Plastic electrostatic spraying
Operation Panel	Polished aluminum Alloy
Working Condition	Both indoors and outdoors
Working temperature	From -10°~60°C
Installation	Non-pit installation, directly fixed to concrete floor
Control Device	Calling box (installed on the wall nearby) up,down and stop
Emergency Stop	The lifting and lowering process can be stopped immediately by pressing the emergency button.
Safety device	Safety Interlock	Lock the platform when it is out of control
	Safety Panel	The operation must be stopped immediately the safety edge meets obstacles during operation.
	Emergency lowering	The platform can be lowered by opening hydraulic valve manually or rolling screw rod.
	Auto-flap	Turn up after lifting
	Limit switch	Upper final limit safety switch
