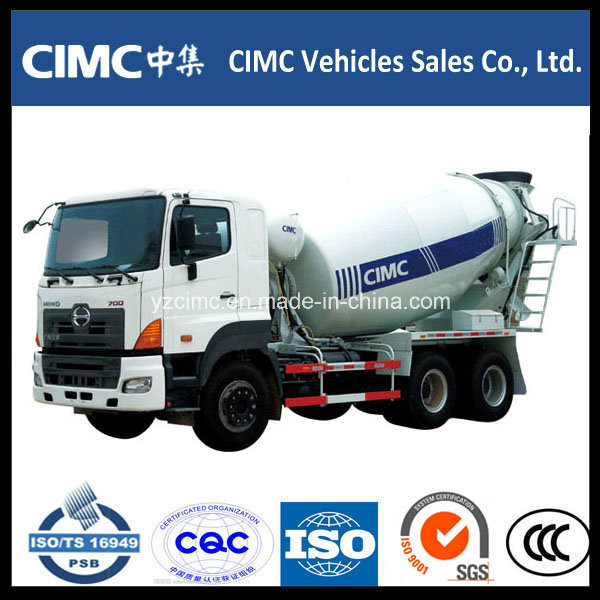

Hino Chassis Concrete Mixer Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 42000.0-65000.0/ Piece

Price:$42000.0 - $65000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jun 18, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:Hino

Certification:ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE

Transmission Type:Manual

Emission Standard:Euro3

Displacement:8

Engine Type:4 Stroke

Payload:30T

Fuel:Diesel

Drive Mode:6x4

Maximum Horsepower:300-400hp

Condition:New

Outline Dimension (Mm):9310 (L) X 2500 (W) X 3890 (H)

Tire:11r20,Steel Tire

Engine:Hino P11c-Va

Cab:Two Seats with One Bed

Wheelbase (Mm):3640+1410

Color:as Customers? Request

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Additional Info.

Trademark:HINO

Packing:Standard

Standard:ISO9000, CCC, TS16949, CE

Origin:China

HS Code:8708706000

Production Capacity:1000PCS/Month

Product Description

ENGINE

Make: HINO P11C-VA

Diesel 4-stroke direct injection diesel engine, Electronic control, SCR
Engine model: P11C-VA, Euro IV emission standard
6-cylinder in-line, turbo-charging and intercooling
Maximum output: 350 hp (259 Kw) at 2100 rpm
Maximum torque: 1483 Nm at 1100-1300r/min
Number of cylinder: 6

Displacement: 10.52 L

Bore: 122 mm

Stroke: 150 mm

Specific fuel consumption: 195 g/kWh
Engine oil filling quantity: 19 l
Cooling system filling quantity (long-term filling): 40 l
Thermostat with 71º C opening begin
Single cylinder air compressor
Rigid fan

Transmission	EATON FULLER RT-11509C, 9 forwards and 1 reverse, 1490N. m, 2600rpm
Transmission	Ratio: 12.42 8.26 6.08 4.53 3.36 2.47 1.81 1.35 1 12.99 (R)
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle	Steering with doubleT-cross section beam
Rear Axle	HINO, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Rear Axle	Ratio: 4.625
Chassis	Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members, Manganese steel
	Front suspension: 10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
	Rear suspension: 13 leaf semi-elliptic springs, bogie spring and stabilizer
	Aluminium fuel tank
Brakes	Service brake: dual circuit compressed air brake
	Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
	Auxiliary brake: engine exhaust brake
Wheels & Tyres	Tire: 11.00R20, all steel radial tyre
Driver' s Cab	Standard cab, with two seats, 1 bed, 2-arm windscreen wiper system with three speeds,
	damped adjustable driver' s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,
	24V USB, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber, Air suspension dirver seats
Electrics	Operating voltage: 24 V, negative grounded
	Starter: 24 V, 5.4 Kw
	Alternator: 3-phase, 28 V, 1500 W
	Batteries: 2 x 12 V, 165 Ah
	Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Instrument Panel	Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators
Instrument Panel	of compressed air pressure, coolant temperature, engine oil pressure and battery charging
Dimensions mm	Wheel base	3640+1410
	Front wheel track	2060
	Rear wheel track	1855
	Front overhang	1410
	Rear overhang	2480
	Approach angle ( 0 )	23
	Departure angle ( 0 )	14
	Overall length	9000
	Overall width	2500
	Overall height	3900
Weight kg	Dead weight	14000
	Maximum Loading Capacity	25000
	Gross vehicle weight(GVW)	39000
	Front axle loading capacity	7500
	Rear axle loading capacity	16000*2
Performance	Maximum driving speed (km/h)	90
	Maximum gradeability (%)	36
	Minimum ground clearance (mm)	250
	Fuel consumption (l/100 km)	35
