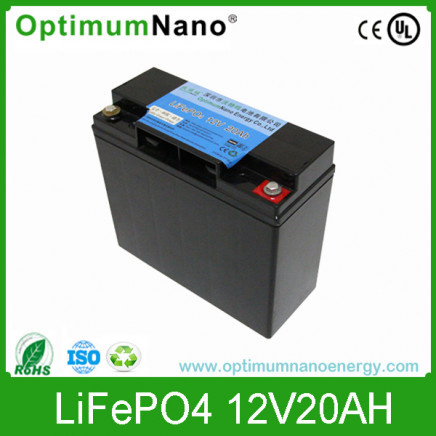

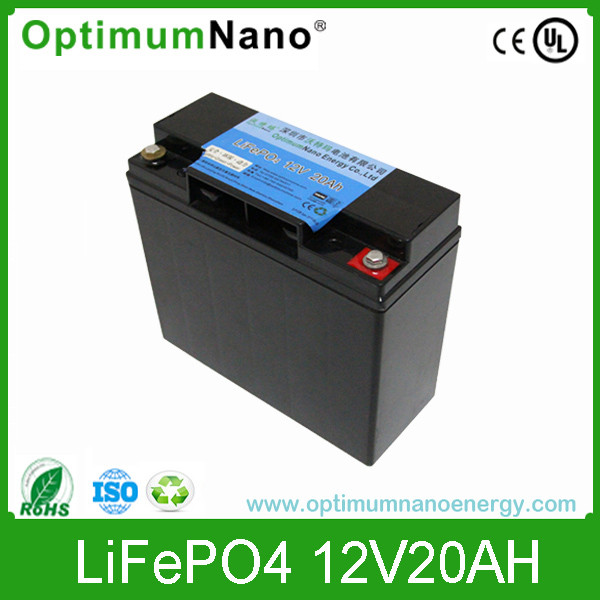

High Safety 12V 20ah LiFePO4 Battery for Solar Light

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$50.0 - $200.0 / Piece

Min. Order (Pieces)	Unit Price
5.0	US $ 200/ Piece
1000.0	US $ 50/ Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From Aug 10, 2015 To Nov 10, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-12-20

Type:Lithium-Ion Batteries

Usage:Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat

Nominal Voltage:12V

Discharge Rate:High Discharge Rate

Shape:Cylindrical Battery

Electrolyte:Lithium Iron Phosphote

Installation:Packaged

Rechargeable:Chargeable

Battery Model:LiFePO4 Battery

Voltage:12V

Capacity:20ah

Cut-off Voltage:10V

Shipping:by Sea, by Air, by Express

Life Cycle Times:Over 2000times

Warranty:24 Months

No Memory Effect:Yes

Export Markets:Global

Additional Info.

Trademark:OptimumNano

Packing:PVC Film, Epoxy Board, Plastic Shell, Iron Box

Standard:CE, UL, ROHS, SGS, TS/16949 and ISO9001-2008

Origin:Guangdong Province, China

HS Code:8507600090

Production Capacity:5000packs/Day

Product Description

High safety 12V 20Ah lifepo4 battery for solar light

Technical details of lifepo4 battery 12V 20Ah

lifepo4 battery 12V 20Ah
Model	lifepo4 battery 12V 20Ah
Nominal Capacity (Ah)	20Ah
Nominal Voltage (V)	12V
Standard Charge Current (A)	4A
Continuous Discharge Current (A)	20A
Pulse Discharge Current (A)	40A
Dimension (mm)	186(L) x 76(W) x 167(H)
Weight (kg)	3kg
Charge Temperature Range(°C)	0~45°C; 32oF~113oF
Discharge Temperature Range(°C)	-20~60°C; -4oF~149oF
Storage Temperature Range(°C)	-20~45°C; -4oF~113oF

Catalogue of lifepo4 battery 12V

Model	Nominal voltage	Nominal capacity	Size	Weight
12V 1Ah	12V	1Ah	747021mm	0.5kg
12V 2Ah	12V	2Ah	735750mm	0.5kg
12V 4Ah	12V	4Ah	1357585mm	0.8kg
12V 5Ah	12V	5Ah	1515193mm	0.9kg
12V 6Ah	12V	6Ah	1455555mm	1kg
12V 10Ah	12V	10Ah	1358585mm	1.3kg
12V 20Ah	12V	20Ah	18276167mm	2.8kg
12V 25Ah	12V	25Ah	18475135mm	3.4kg
12V 30Ah	12V	30Ah	118175175mm	4kg
12V 40Ah	12V	40Ah	190165175mm	5.5kg
12V 50Ah	12V	50Ah	190165175mm	7kg
12V 55Ah	12V	55Ah	269170220mm	7.5kg
12V 60Ah	12V	60Ah	350168179mm	9kg
12V 65Ah	12V	65Ah	323171215mm	10kg
12V 80Ah	12V	80Ah	260170215mm	13kg
12V 100Ah	12V	100Ah	323172218mm	16kg
12V 150Ah	12V	150Ah	525269220mm	24kg
12V 200Ah	12V	200Ah	525269220mm	30kg
12V 300Ah	12V	300Ah	525269220mm	45kg
12V 400Ah	12V	400Ah	560360200mm	60kg

Application of lifepo4 battery 12V 20Ah

1. LED light, solar street light, UPS
2. Electric wheelchair, golf trolley, golf cart, other small electric vehicle.
3. Medical device, security system

Product Features

1, High energy density
2, High working voltage for single battery cells
3, Pollution-free
4, Long cycle life
5, No memory effect
6, Capacity, resistance, Voltage, platform time consistency is good
7, With short-circuit production function, safe and reliable
8, Light weight, small size
9.Quality and security guaranted,with CE,ROHS approval.

Why Choose OptimumNANO Battery

Every OptimumNANO Battery® has a patented "internal" battery protection system
More than 12 years' esperience in Lithium battery
Providing batteries according to customers' requirement
Excellent customer service and 24h online technical support
High Quality, Safe Lithium Ion Batteries with the industries best warranty - 2 year.
Worldwide shipping, export from multiple distribution centers around the world.

Shipping

By sea, by air or express, providing the best and fast delivery for customers.

Brief introduction of company

OptimumNano Energy co., ltd, one of the biggest manufacturers for lifepo4 battery, has specialized in producing battery for more than 12years, with SGS,NQA,UL. CE. RoHS, ISO9001,TS16949 certification ,80,000 square meters factory, more than 2000 workers ,300 professional engineers.
