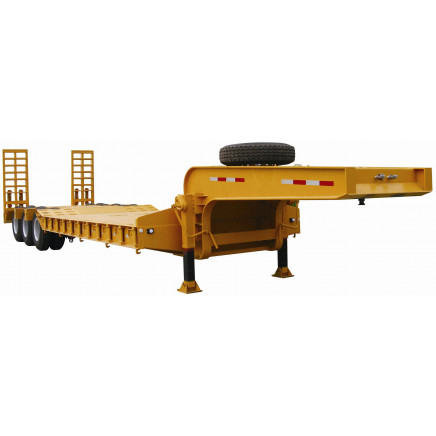

High Quality Tri Axle Lowbed Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 12000.0-25000.0/ Piece

Price:$12000.0 - $25000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Trademark: JUPITER

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FTW9330TD

Type:Towing Pin

Towing Pin Material:Alloy Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:90mm

Differential Gear Type:Gear Type

Independent Suspension Type:Trailing Arm Type

Size:as Your Requirements

Colour:as Your Request

Export Markets:Global

Additional Info.

Trademark:JUPITER

Packing:Nude, Coating with Wax

Standard:CCC

Origin:China

Production Capacity:90 Pieces/Month

Product Description

Virtue: Low loading floor, the upper part provide large loading space, low center gravity, which makes the vehicle very safe
Mainly suitable for transportation of large mechanical devices, large scale cargo, the highway construction equipment, the lager tanks, the extra-high containers, all kinds of steel products
Dimensions:
Overall dimensions (mm): 112000× 3000× 3070
Front overhang (mm): 450
King pin setting (mm):
Wheel base (mm): 8350+1310
Loading surface height (mm):
Top flange thickness (mm): 20
Middle flange thickness (mm): 12
Bottom flange thickness (mm): 25
Floor thickness (mm): 4
Front fitting radius:
Rear tractor clearance radius:
Weight:
Tare weight (kg): 8000
Max payload (kg): 33300
Total weigh(kg): 25000
Running gear
Suspension: Fuwa/7-leaf spring
Axles: FUWA 13/BPW
Wheel rim: 8.25/9.00 X 22.5 (13 sets)
Tyre: 11R22.5 /12R22.5(13 sets)
Kingpin: BH-KW 2' welding type
Twist lock: Without
Landing gear:
Leg: FUWA or Jost
Rated capacity:
Ramp: Heavy kind 8 pieces
Air system
Relay valve: 1unit of east star 4 relay valve
ABS: 4s/2m
Air tank: 2 units of reliable local brand 48L
Brake chamber: 2 units of T30/30, 2 units of T30
Electrical system: Voltage: 24V
Receptacle: 7-way socket
Light: LED
Else: Color, tool box, mudguard, side guard, spare tyre holder
All of the above could be changed according to customer's requirements
As the requirements of the customers in different countries are different, we can design for our customer's special need
