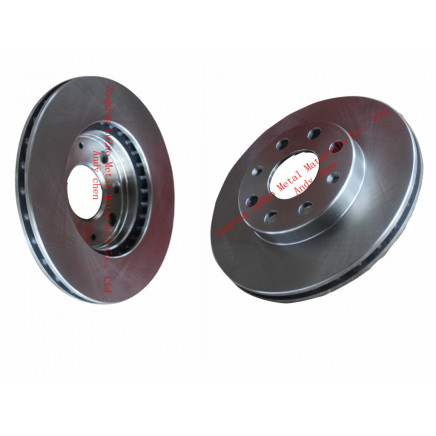

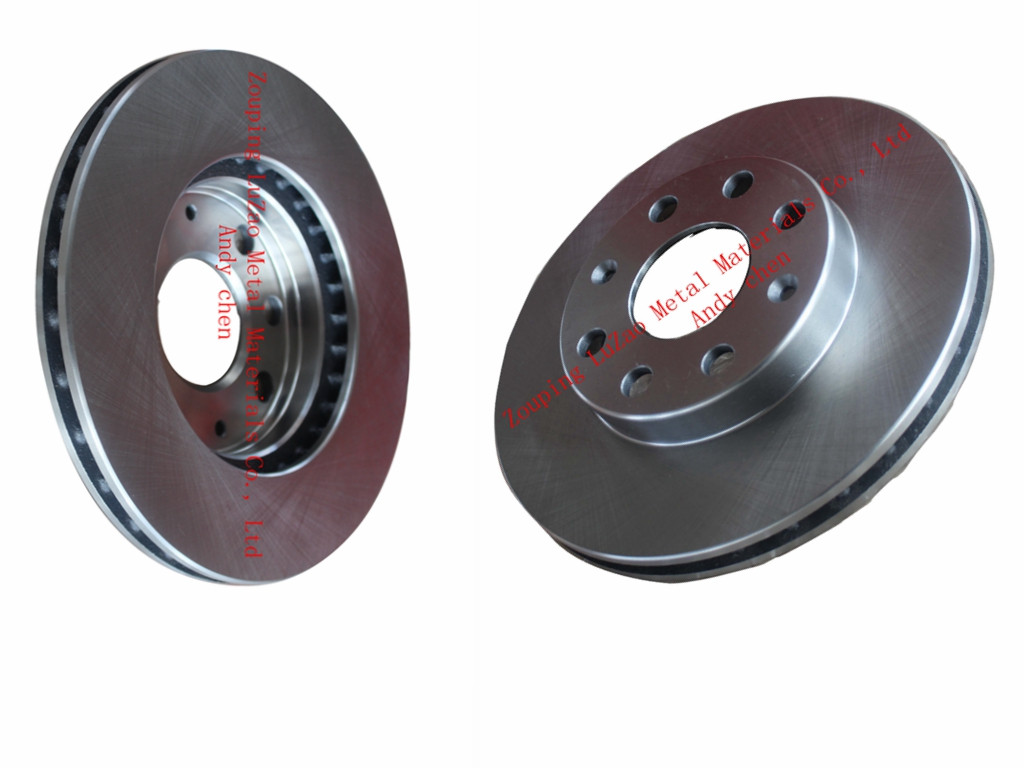

High Quality Motorcycle Parts, Automobile Spare Parts, Brake Disc 31017/ 0569 031with Competitive Prices

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
100.0	US $ 8.0-40.0/ Piece

Price:$8.0 - $40.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Mar 27, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:31017/0569 031

Type:Brake Discs

Material:Iron

Position:Front

Certification:ISO/TS16949, ISO9001

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Size:41*236mm:Num. of Holes:4

Center Diameter:60mm:Position:Front Wheel

Plate Thickness:20mm:The Minimum Thickness:17mm

Hardness:170~210

Total Carbon:3.0%~3.3%

Silicon:1.9%~2.2%

Manganese:0.7%~1.2%

Phosphorus:0.12%Max

Sulfur:0.12%Max

Export Markets:Global

Additional Info.

Trademark:luzao

Packing:as Your Requirement

Standard:ISO/TS16949 Certificate

Origin:Shandong, China

HS Code:87083099

Production Capacity:500000PCS/Month

Product Description

Features:
-Professional Manufacture
- Factory supplier & various automobile brake discs
-100% crucial dimension inspection and Balancing

Product details:

Key Specifications
Item	Brake Disc, braking disc,brake rotor,auto car brake
OE No.	0569 031
AIMCO NO.	31017
Position	Front axle
Size	41*236mm
Height	41mm
Outer Diameter	236mm
Centering Hole Dia	60mm
Pitch circle diameter	100mm
Brake disc thickness	20mm
Minimum thickness	17mm
Number of holes	4
Solid or vented	V
Hardness	170~210
Chemical composite	C:3.0-3.3% Si:1.9-2.2% Mn:0.7-1.2% P:<0.12% S<0.12%
Material	Gray iron HT250/G3000
Packing	Neutral package or color, as customer's request

Place of Origin	Zouping,Shandong,China Mainland
Payment terms	T/T or L/C
MOQ	100~300 PCS
Lead Time	20-30 days
Warranty	1~2years
Brand name	Luzao
Certificate	ISO 9001
HS Code	87083099
Export Markets	Global/Worldwide
