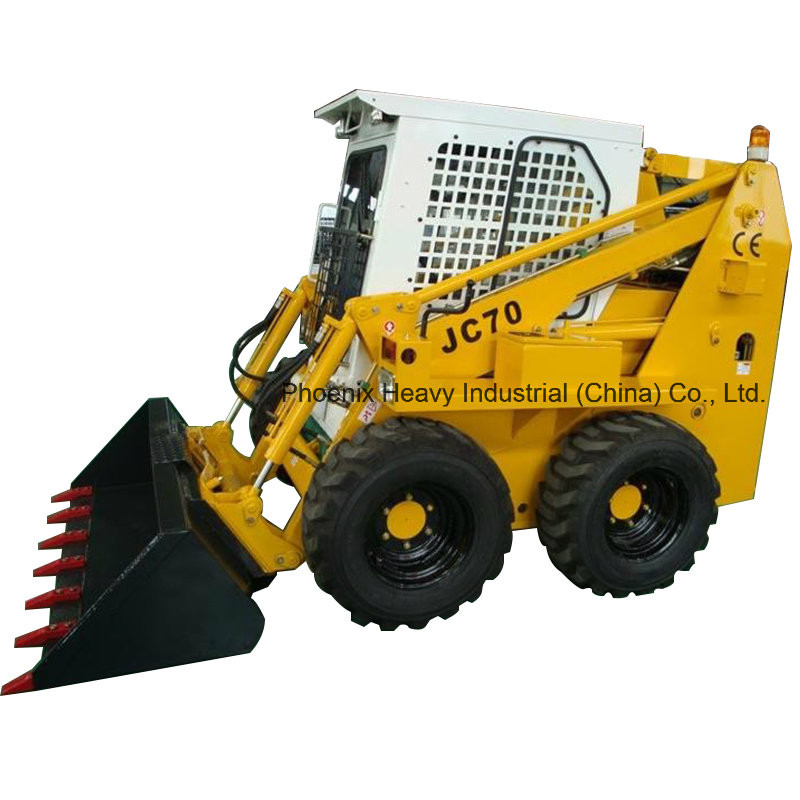

High Quality Luxurious 75HP Skid Steer Loader with Powerful Deutz Engine

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$24000.0 - $25000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 25000/ Piece
5.0	US $ 24000/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Money Gram, Western Union

Price Valid Time:From Mar 02, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:JC70

Type:Skid Steer Loader

Usage:Universal Type

Scraper Type:Pull Scraper

Transmission:Hydraulic Transmission

Walking Mode:Wheeled

Load and Unload Method:Front Discharge

Engine Power:75HP

Certification:CE

Condition:New

Rated Load:1000kg

Engine:Deutz Brand

Bucket Capacity:0.5m3

Tipping Load:2000kg

Export Markets:Global

Additional Info.

Trademark:PHOENIX

Packing:Nude Packing

Standard:CE

Origin:China Mainland

HS Code:84295100

Production Capacity:1000 Units/Month

Product Description

One of the highest quality Skid Steer Loaders available.

Engine: Chinese Deutz brand
Engine Power: 75hp
Rated load: 1000kg
Bucket capacity: 0.5m3
Tipping Load: 2000kg

Specifications:
1. Chinese Deutz brand diesel engine
2. German Rexroth brand hydraulic pump
3. Italian BP brand hydraulic motor
4. Hydraulic control system
5. Luxurious closed cabin
6. Hydraulic self-leveling system
7. Gear type transmission system
8. Bobcat type quick coupler

Optional:

1.Airconditioner
2.Heater
These options are available at an alternative price.

We can provide almost all kinds of attachments, whatever suits your working needs.

Rated Operating Capacity(kg)	1000
Tipping load(kg)	2000
Bucket Capacity(m3)	0.5
Lifting Force(kg)	2700
Hydraulic Pump Flow(L/min)	100
Engine power(hp)	80
Weight(kg)	3600
Max. Travel Speed(km/h)	12
Grade ability(degrees)	20°
Tire size	12 - 16.5
Fuel/hyd. Oil capacity(L)	70/70

A. Height at Maximum Extension(mm)	3690
B. Hinge Pin Height(mm)	2920
C. Total Height(mm)	2080
D. Length with Bucket(mm)	3450
E. Length without Bucket(mm)	2700
F. Width with Bucket(mm)	1880
G. Track Width(mm)	1500
H. Wheelbase(mm)	1020
J. Ground Clearance(mm)	200
K. Dumping Angle(degrees)	40°
L. Dumping Height(mm)	2330
M. Maximum Reach(mm)	700
