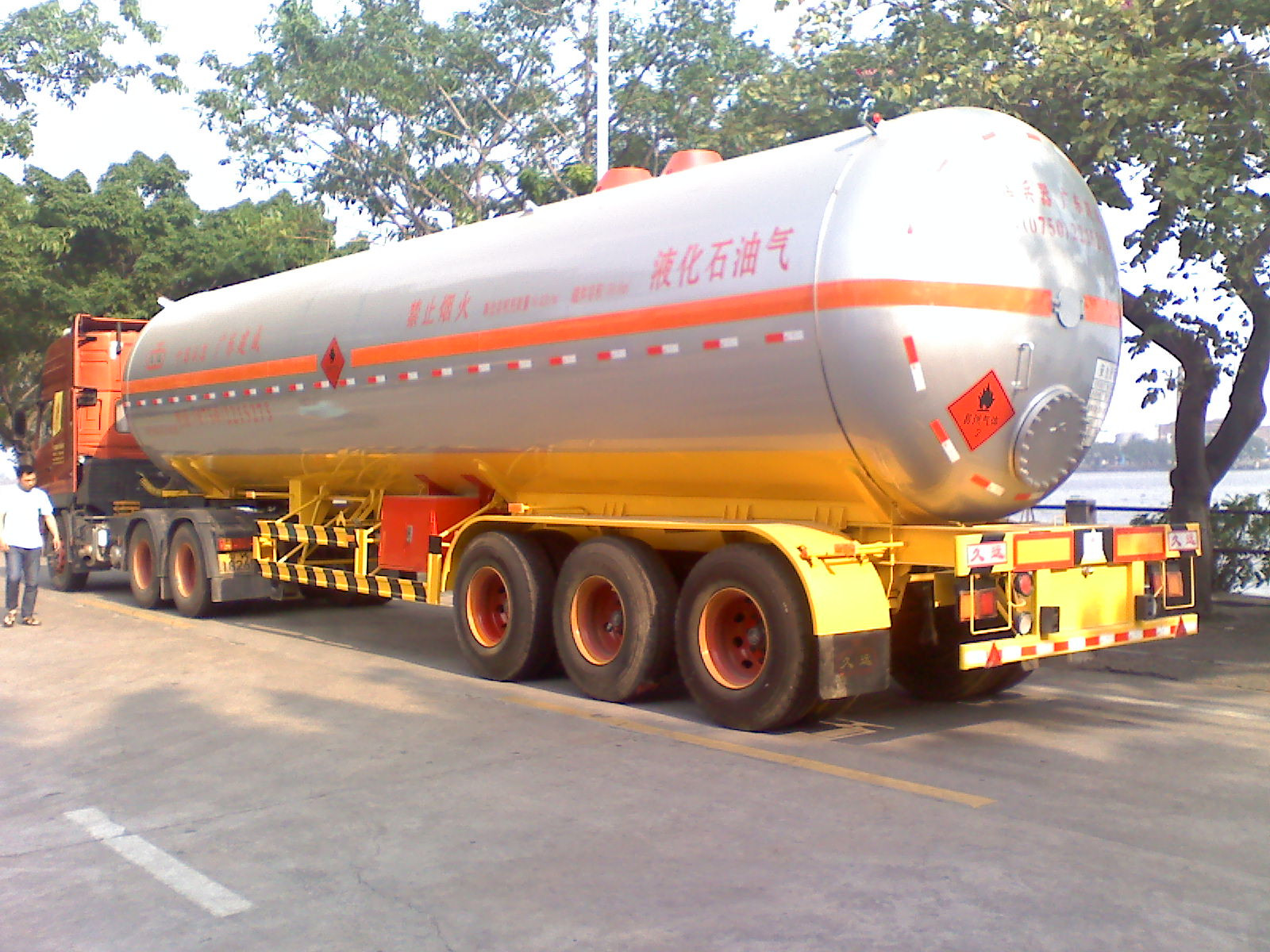

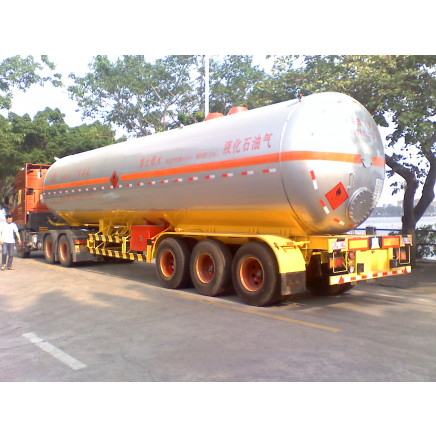

High Quality LPG Tanker Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 42500/ Piece

Price:US $42500.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C

Price Valid Time:From Mar 11, 2015 To Jun 11, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Type:Suspension

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Differential Gear Type:Gear Type

Independent Suspension Type:Cross Arm Type

Oil Tanker:Fuel Tanker

Export Markets:Global

Additional Info.

Trademark:JUPITER

Packing:Naked

Standard:40CBM

Origin:China

Production Capacity:5000PCS/Year

Product Description

- European axle group (BPW - SAF)
- Aluminum rim
- Additional axle lifting
- Hydraulic operating rear cover
- Firm logo can be applied
- Tank body is made of Aluminum - chrome stainless sheet

	Produced by gas welding machines from high resistance steel ST52 meterials as I section in resistance calculation excessive loading has been considered with robotic welding machine
King Pin	Produced with wrought iron (42 cr Mo4)Thats high resistance to tension and breaking off compliance with 2'' SAE/DIN norms and provides easy replacement posibility with screw connections
Axles	3 X 12000 kg carriying capacity. Turkish Mark automatic brake adjustment lever and compliance with european standards.Off drum brake systems. FRONT AXLE LIFTING - Front axle lifting system commanded from inside of the cabinet
Brake System:	Designed according into the european standards Wabco products are used on equipped with automatic brake adjustment brake chambers (30 cylinder), Brake Disk (394x210 mm) axle brakes ABS system.There are two pieces of replecable protective brake sockets. Rear Axles 30x30 Service emergency bellows
Mechanical Suspension Systems	Mechanical Suspension Systems are using for each capacity. Front axle has moveable system up and down position
Counterfort	They are leader marked with double revolutions mechanic pillars with 24 tons carriying capacity.
Rear Bumper	70/221/ AT version rear bumper
Batten	1 unit parking batten with moving equipment
Wheel and Rim	- 385/65 R22,5 tyres 6 Units Goodyear or Pirelli Brand - 11,75 x 22,5 rim
Mudguard	2 unit complete mudguard
Spare wheel	Single saddle type
Cupboard	1 unit cupboard
Water tank	60 lt Cr -Ni water tank Produced by stanless stell
Paint:	Trailer clean before painting and repair with paste for smooth face. Then prime paint and double last paint regarding customer reguest in Paint Oven. .
Electrical equipment	At side 5 unit Lamps 60, 70, 80 Label, At rear park lamps, Plate lamp Triangle reflector. 2 X 7 pim electric sockets

	Tank Volume	40.000 LT
Tank Meterial		Tank body is made of 4 mm thickness St 37 iron sheetUPPERTRUCTURE - Length 10.000 mm-12.000 mm - Width 2550 mm - It has 3 sections - Our tanks are in elliptical, round, double ''D'' types. As technical picture 37 iron sheet
Tank Equipment		FILLING & DISCHARGING SYSTEM - Leakproof, with gasket Manhole covers for each section - Pipes in 3" diameter connect each section to valve box - 3'' diameter ball valve provides independent natural discharging system 3 as filled from cover
Accosseries .		STANDARD ACCESSORIES - Plastic mudguard covering rear axle group - 1 piece discharge valve box made of sheet - 1 piece tool kit box made of sheet - 1 piece nonskid ground walking platform - 1 piece stair from rear existing - 2 pieces PVC carrier for discharging hoses - Plastic water tank - Roller or basket spare tire carrier - Aluminum bicycle guardrail - Chock and chock place
