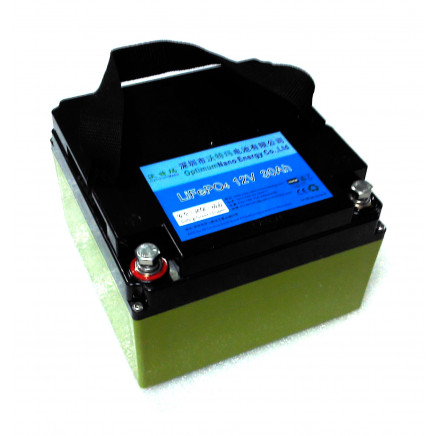

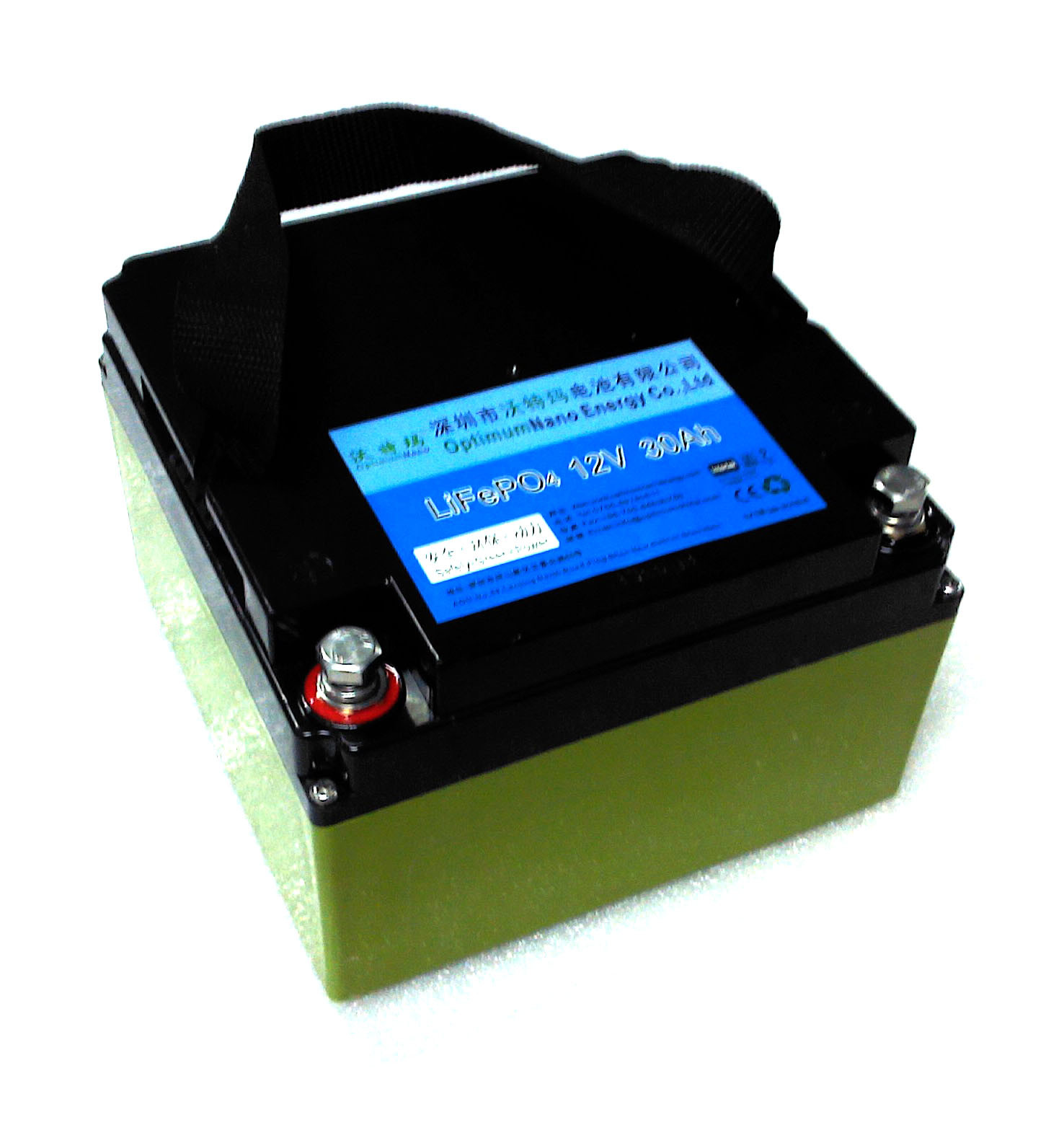

High Quality Lithium 12V 30ah Battery for Cavanran

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$100.0 - $300.0 / Piece

Min. Order (Pieces)	Unit Price
10.0	US $ 100/ Piece
100.0	US $ 300/ Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From Jul 20, 2015 To Oct 20, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-12-30

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rechargeable:Chargeable

Discharge Rate:Low Discharge Rate

Size:Medium

Accessories Type:Battery

Rated Capacity:30ah

Standard Voltage:12V

Usage:Cavanran

Electrolyte:LiFePO4

Components:LiFePO4(Lithium Iron Phosphate)

Composed Type:4 in Series and 6 in Parallels

Cycle Life:More Than 2000 Times

Warranty Period:2 Years

Battery Case:Plastic Case (Owner Design)

Dimension:175*175*118mm

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO

Packing:Customized Package

Standard:CE, UL, ROHS, BV, SGS, ISO9001, TS16949

Origin:China Mainland(Guangdong)

HS Code:85078020

Production Capacity:1000pks/Day

Product Description

High Quality lithium 12v 30ah battery for Cavanran

No.	Item	General Parameters
1	Model	OPT-012-30
2	Standard capacity	30Ah
3	Rated voltage	12.8V
4	Max. Charge voltage	14.6V
5	Discharge Cut-off voltage	10V
6	Standard charge current	6A
7	Max Continuous discharge current	30A
8	Peak Instant Discharge Current	60A(5Seconds)
9	Dimension(Customized)	175175118mm
10	Total weight(Approx.)	About 4Kg
11	Operate temperature	-20°C~60°C
12	Built-in Protection Circuit Module	YES
13	Cycle time	2000 times at 1C, 80% capacity remaining
14	Built-in PCM functions	Over charged protection
		Over discharged protection
		Short circuit protection

Basic Specification:

Rated voltage: 12.8V
Rated capacity: 30Ah
Standard charge current: 6A
Standard discharge current: 30A
Max charge voltage: 14.6V
Cut-off voltage: 10V
Charge method: CC&CV
Weight: About 14kg
CE, UL, RoHS, BV, SGS, ISO9001, TS16949
Application: UPS, solar/wind system, energy storage, e-tool

Characteristics:

1. Extremely safe: The chemical structure of LiFePO4 is very stable BMS or PCB built inside to protect the battery over charge and discharge.
2. Long life-cycle: 5~7 years / 2000 times cycle life.
3. Lighter and smaller: 1/3 weight of lead acid battery, 70% size/weight of Ni-MH/Ni-CD battery.
4. Wide operating temperature: High temperature resistance(-20~70 degrees Celsius).
5. Steady performance: High power output, 1C continuous, 3C pulse for normal cells Low self-discharge rate, less than 3% monthly.
6. No memory effects and highly efficient charge: It can be recharged anytime, no reduction of the capacity
7. Green product: Environment friendly, clean and green energy, no pollution on our environment.
8. Quality assurance: BV and SGS approved supplier, with TS16949 and ISO9001 quality management certificates and UL, CE, IEC62133 etc...Product certificates.

Service by us:

Give you the specific battery pack within 24hours according to your requirements
One-stop battery solution with battery cells, BMS, case and matching charger

Comparison between LiFePO4 and other batteries
Technical Parameter	liCoO2	LiNiCoMnO2	LiMn2O4	LiFePO4
Tap Density(g/cm3)	2.8~3.0	2.0~2.3	2.2~2.4	1.0~1.4
Specific Surface Area(m2/g)	0.4~0.6	0.2~0.4	0.4~0.8	12~20
Energy Density (mAh/g)	135~140	155~165	100~115	130~160
Discharge Plateau (V)	3.6	3.5	3.7	3.2
Cycle Life	?300 cycles	?800 cycles	?500 cycles	?2000 cycles
Environment Friendly	Co contained	Co, Ni contained	Micro toxicity	Innocuity
Safety Performance	Bad	Normal	Good	Never catch fire or explode under extreme condition , safest
