High Quality Hydraulic Scissors Wheelchair Lift for Disabled with CE Certificate

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF, EXW

Payment Terms:T/T, Paypal, Western Union

Trademark:Xinder

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL-UVL-700-S-1090

Type:Bus Part

Material:Steel

Muffler Type:No

Deck:No

Load Capacity:350kg

Platform Size:1090*751

Max Lift Height:700mm

Inquire Door Width:?850mm

Certificate:CE

Max Wheelchair Width:740mm

Mounting Space:1700*1300*180mm

Packing Condition:Wooden Case

Application:Sprinter, Transit New V348, Hiace

Export Markets:Global

Additional Info.

Trademark:Xinder

Packing:Wooden Case

Standard:CE

Origin:Jiangsu Changzhou

HS Code:84289090

Production Capacity:500sets/Month

Product Description

1. INFORMATION

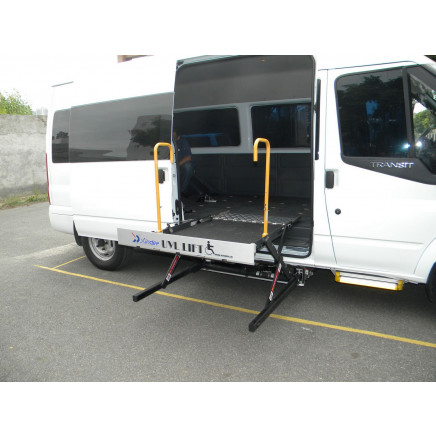

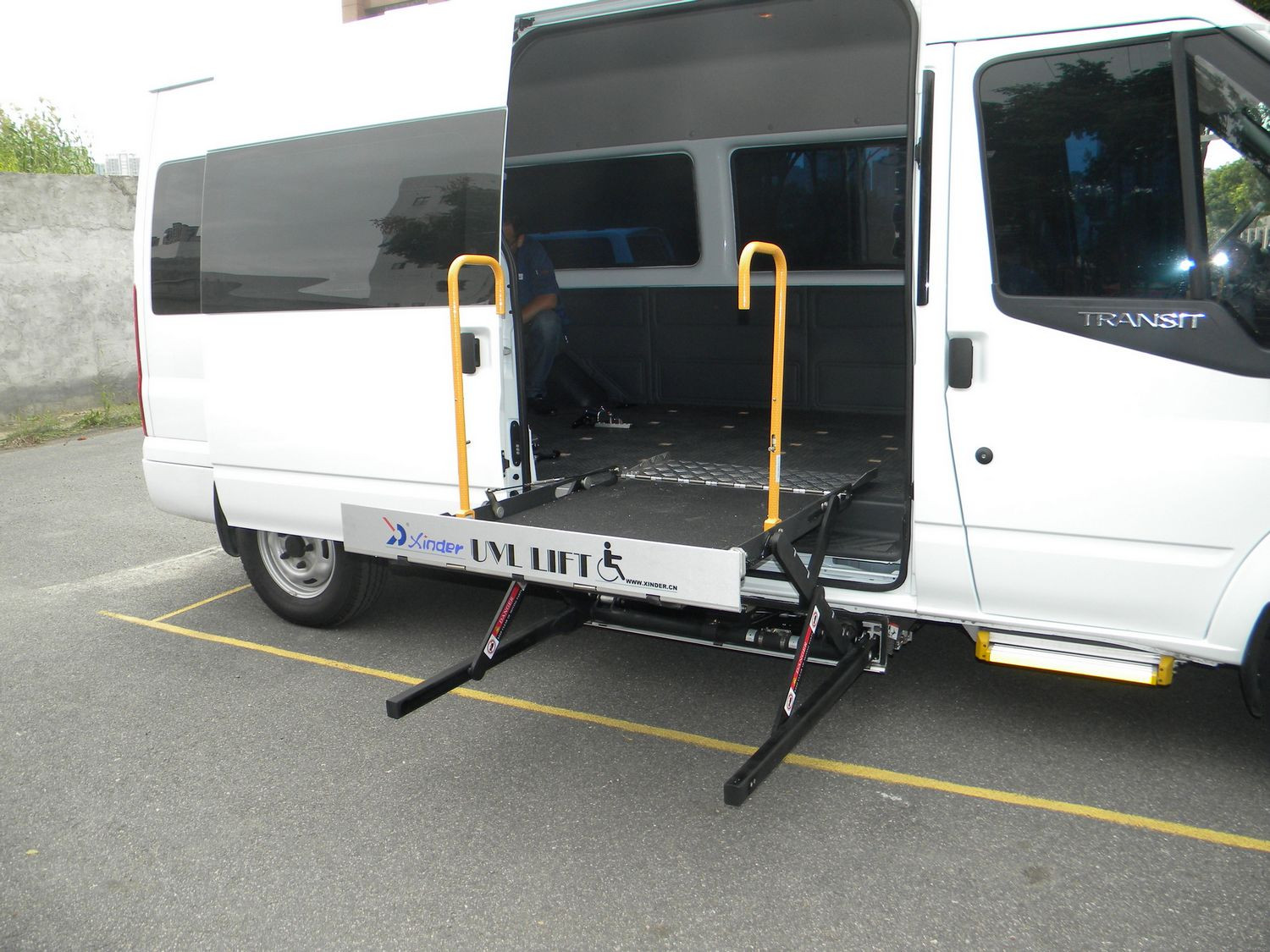

WL-UVL Series wheelchair lift is installed under vehicle floor. It is operated easily, safe and reliable, with load capacity 350KG. The wheelchair occupant, attendant or driver can operate it by operating switches.
WL-UVL-700 wheelchair lift for bus platform extends out from vehicle floor, raises to vehicle floor or down to ground. If you do not use it, the platform can be folded under vehicle floor so that make sure enough room for doorway. There is a non-slippery platform to put the wheelchair on, and each front rollstop and rear rollstop, which all make the wheelchair go inside the vehicle, also protect the platform when it raise up and down. Handicap wheel chair lift uses hydraulic power unit, stable when hydraulic lift up, save up electricity when gravity decline.
2. ADVANTAGES
Electric outboard rollstop and automatic inboard rollstop
Super thin compact design
No-skid aluminum honeycomb platform
Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
Side handrails (Option), for increased comfort and security
Sound and flash light alarm during operation of platform
Built in manual backup system
3. MAIN DIMENSIONS

Model	WL-UVL-700	WL-UVL-700-S	WL-UVL-700(II)
Platform size	751*1220	751*1220	751*1220
Max. up stroke	505	505	430
Max. down stroke	500	500	540
Length required to install lift	1940	1812	1867
Height of lift rear end	133	133	133
Height of lift front end	167	167	167
Distance between guide frame and up fitting surface	53	53	53
Distance between front fitting surface and spindle of main arm	347	75	145
Installation position	for the bus with three steps; installed in step	for the bus with two steps; installed under chassis	for coach or tourist bus; installed in the luggage

4. TECHNICAL SPECIFICATION

Model	Voltage	Motor power	Pressure	Cylinder diameter&stroke
UVL-700	12V/24V	0.8Kw	2500Psi	?60X70 unidirectional operation

Max lifting load	Max lifting height	Voltage	Len & width of platform
350 Kg	700mm	12/24 V	751*1220mm

Raise lift platform: motor drive, hydraulic function;
Lower lift platform: pressure release valve of power unit control velocity of flow to provide gravity function;
Raise platform manually: operate manual pump;
Lower platform manually: rotate button of manual pressure release valve with specialized tool;
Movement of front & rear rollstop: electric drive(front rollstop), mechanical drive (rear rollstop);
Model & Capacity of hydraulic oil: L-HV46
