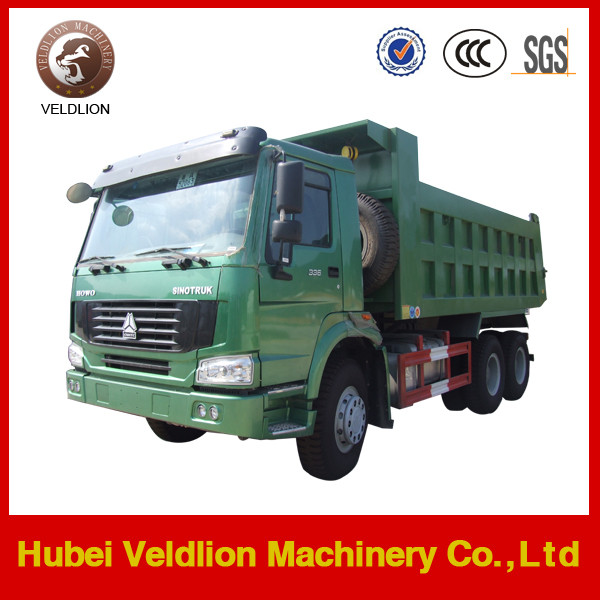

High Quality HOWO 35 Tons 6X4 Tipper Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 45000.0-49000.0/ Piece

Price:$45000.0 - $49000.0 / Piece

Trade Terms: FOB, CIF, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Aug 12, 2015 To Nov 12, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VL3150

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 3

Drive Wheel:6в4

Engine Capacity:6-8L

Seats:?5

Horsepower:251-350hp

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Fuel:Diesel

Certification:ISO9000, CCC

Engine Type:4 Stroke

Volume:10000-20000L

Type:6X4 Tipper Truck

Payload:25t

Export Markets:Global

Additional Info.

Trademark:VELDLION

Packing:Nude Packing or Roro Ship for 6X4 Tipper Truck

Standard:CE, ISO9001: 2000

Origin:China

HS Code:8716311000

Production Capacity:3000PCS Per Month

Product Description

I. QUICK DETAILS OF HOWO 35 tons 6X4 Tipper truck
(1). 6X4 Tipper truck chassis Model: HOWO, SINOTRUK, NORTH Benz, SHACMAN, DONGFENG, AUMAN, tec.
(2). Engine Model: Dongfeng Cummins (260HP-375HP), Yuchai (290HP-375HP), weichai(270HP-380HP).
(3). Drive model: 4X2, 6X4, 8X4;
(4). Engine: EuroIIand EuroIII emission standard;
(5). Right/Left hand drive;

II. COMPANY INTRODUCE

HUBEI VELDLION MACHINERY Co., Ltd is an authorized dump truck manufacturer. We are specialized in the production of a variety of special-purpose vehicles.

Create value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.

OUR MAIN PRODUCT:
1. Dump Truck/Tipper Truck
2. Fire Fighting Truck
3. Truck with Crane
4. Semi-Trailer and Tractor Truck
5. Water Tank Truck,
6. Fuel Tank Truck,
7. Concrete mixer truck,
8. Fecal suction truck, sewage suction truck,
9. Light Cargo Truck, Mini Truck,
10. High-altitude operation truck,
11. Garbage Truck, Compactor Garbage Truck, Sealed Garbage Truck,
12. Bulk Cement Truck, Powder tank truck
13. Chemical liquid tank truck
14. Van truck, insulated truck, Refrigeration Truck

III. Strong advantage:

1. Professional SINOTRUK HOWO DUMP Truck for sand, stone, gravel transport...
2. Designed for bad road condtion, HOWO Dump Truck is good for intermediate and long distance transport.
3. Equiped with air condition in cab, our truck can work in hot and cold condition.
4. Super loading capacity! (capable more than total traction quality)
5. More than 300 workers, large and advanced production;
6. Have professional engineer, can offer the best and cheapest design;
7. Build strict QC team to guarantee the quality;
8. Own profesional sales team, can offer follow-up service;
9. High quality with resonable price;
10. Euro II, III, IV, V emission standard are optional.

IV. CONTACT INFORMATION
If you want to know more about our 6X4 Tipper truck, please do not hesitate contact with us as below:

HUBEI VELDLION MACHINERY Co., Ltd
ATTN: Real Liu
Mobile phone: +86 13656866460
Website: www.veldlion.com

V. PARAMETERS DATASHEET OF HOWO 6X4 Tipper truck

Model of 6x4 tipper truck		ZZ3167M3811
Engine	Model	WD615.62	WD615.87
	Horsepower	266	290
	Maximum output Kw/r/min	196/2200	213/2200
	Maximum torque N.m/r/min	1100/1100-1600	1160/1100-1600
	Type	6-cylinder in line , 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
	Bore x Stroke	126x130mm
	Valve	2
	Displacement	9.726L
	Euro II emission standard, Thermostat with 80╟C opening begin, Rigid fan
	Option:Thermostat with 71╟C opening begin; silicone oil fan; Cold-start with electric-inlet-air heating System (180Ah battery)
Cab	HW70 Standard cab for 6x4 tipper truck, no bunk, adjustable steering wheel,EURO new type heating & ventilating system, German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner Option: right driving; color
Clutch	?430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission	HW15710 transmission ,10 forward and 2 reverse
Front Axle	SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes .Option: disc brake
Steering	ZF8098 Steering Gear Box ,hydraulic steering with power assistance
Rear Axles	HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Brake System	Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels Auxiliary brake:engine exhaust valve brake;Option:EVB
Wheels & Tyres	Rims:8.5-20,10 hole-steel ;Tyres:12.00-20 diagonal tyre with 1 Spare tire Option:12.00R20 radial tyre
Electrics	Operating voltage:24V,negative grounded Starter:24V,7.5 Kw Alternator:3-phase,28V,1500 W Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light Option:2x180Ah Batteries
Oil Tank	Square type-300L Aluminum alloy fuel tank
6x4 tipper truck Optional	Vertical Muffler;ABS;Automatic Break Clearance Adjusting Arm; Traveling Data Recorder; Under Starting/Stopping Device;Metal Pipeline;Engine Protective Board
