High Quality GPS Navigation Box for Pioneer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB

Payment Terms:T/T

Trademark:LLT

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LLT-PR3110

Combination:GPS, Bluetooth, MP3/MP4 Player, TV, Reversing Track

Placement:Dashboard

Certification:CE, FCC, ISO

Voltage:12/24V

Audio Output:Digital Optical Output

Video Output:Video

Definition:Original Car Screen(800*480)

Navigation:800(GHz), 256(Storage), 800*400(HD Dispaly).

Map:Careland/Daodaotong/Igo/Papago

Reserved Accessories Upgraded:DVD,TV,360 Panoramic, Automobile Data Recorder, TM

Frequency:664MHz+336MHz DSP/800MHz

Main Chip Model:Sirf Atlas V/Msb2531

Memory:128MB/256MB

Storage Space:128MB(Can Expand to 8GB)

Operating System:Wince6.0 Core

Sound Output:Dual Channel CD Stereo Sound

Export Markets:Global

Additional Info.

Trademark:LLT

Packing:Cartons

Standard:CE, SGS

Origin:Shen Zhen, Guang Dong

Production Capacity:5, 000, 000/Year

Product Description

Brand: LLT Type: LLT-PR3110

Suitable car model: All machine with NAVI interface(800*480), such as AVH-P6300BT/P8400BH/X7500BT/X6500DVD/X450BT/X2500BT/X1500DVDetc.

Installation advantages
1) Nondestructive installation design, which does not damage to the wires of original car; Special interface cable, plug-up installation without wire cut;
2) Choose installation functions freely(Bluetooth optional);
3) Technology is reliable, take the original agreement;
4) After the upgrade, it still retains all the functions of the original host, even if navigation goes wrong, does not affect the function of the use of the original car;

5) After-sales service is convenient, replace the adapter module directly, compare with special machine, it's simple, less risk, safety and reliable
6) Choose beautiful interface by yourself;
7) Achieve handwritten navigation, and control the navigation by touching it. Compare with the original navigation module, it's more convenient and flexible.

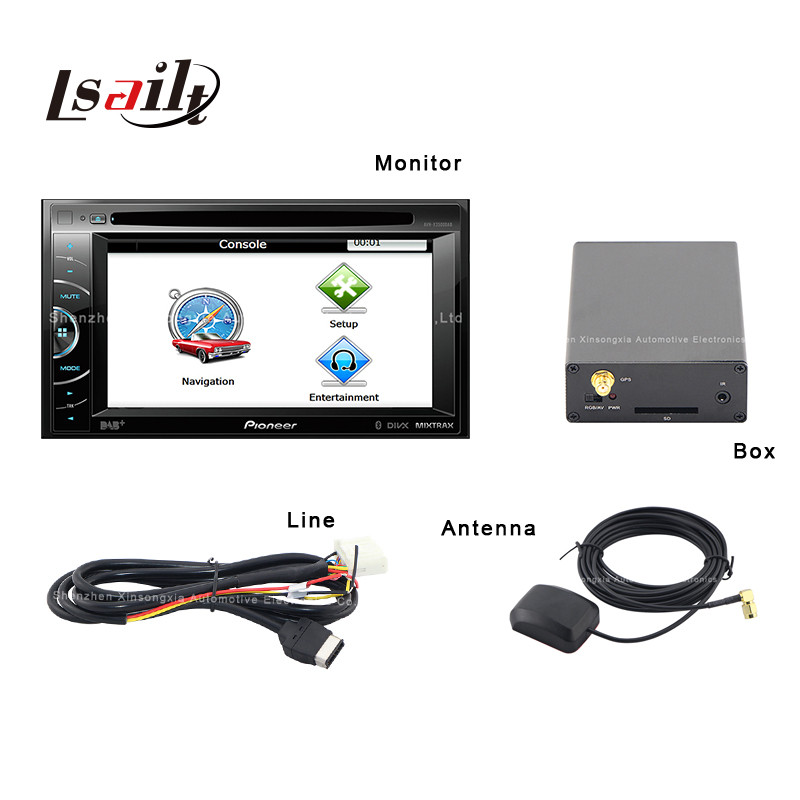

Product accessories

Mainframe	1(standard configuration)
Dedicated wire	1(standard configuration)
Antenna	1(standard configuration)
Specification	1(standard configuration)
certification	1(standard configuration)
Warranty card	1(standard configuration)
Microphone	1(optional configuration)
Horn	1(optional configuration)
Map card	1(optional configuration)
Mute dedicated line	1(optional configuration)

Product parameters

Frequency:	664MHZ+336MHZ DSP/800MHZ
Main chip model:	Sirf Atlas V/MSB2531
Memory:	128MB/256MB
Storage space:	128MB(can expand to 8GB)
Navigation software storage:	SD card
Operating system:	WINCE6.0 CORE
Supported audio and video formats:	MP3/PCM/WMA/ Mp4/mpeg/mpg/asf/wmv/mov etc.
Support video type:	Mp4/mpeg/mpg/asf/wmv/mov etc.
Video output format:	Composite Video(CVBS,Y/C,YPbPr)/ Analog RGB
Video output voltage:	1.0Vpp/75?
Resolution:	800X480
Sound output:	Dual channel CD stereo sound
Operating temperature:	~40 to +85
Storage temperature:	~40 to +100
Operating voltage:	DC 9-16V
Tracking sensitivity:	~161dBm
Positioning accuracy:	10m, 2D RMS,5m, 2D RMS, WAAS enable
GPS Antenna type:	External active ceramic antenna

For modelsAVH-P6300BT/P8400BH/X8500BHS/X7500BT/X6500DVD/X4500BT/X2500BT/X1500DVD/2550/4550/5500/8550/2650/4650 etc. all machine with NAVI interface . (800X480)
